Rainscreen Façade System | Aspect®

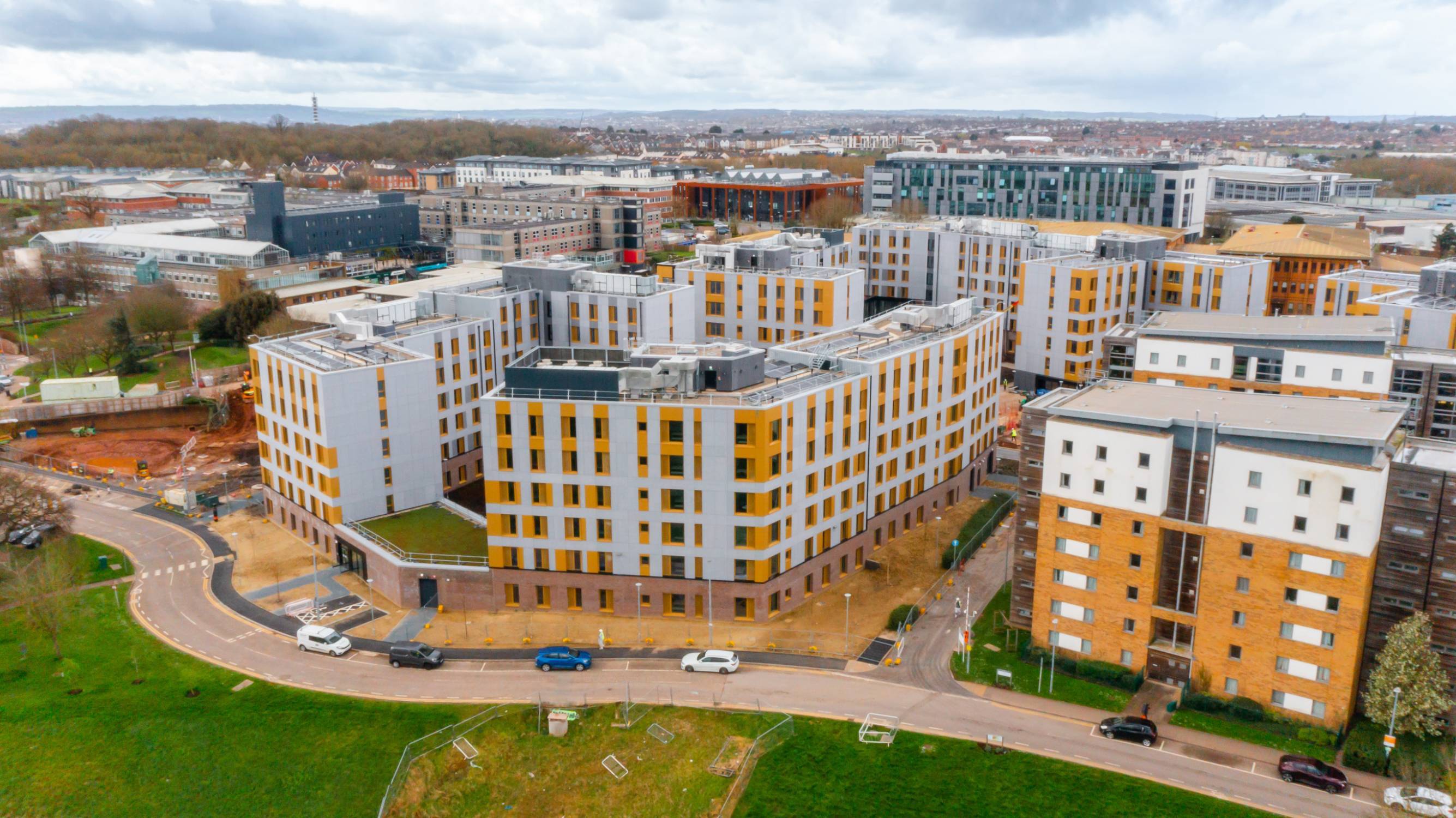

Aspect® is used on building façades requiring concealed-fix rainscreen cladding with flexible panel sizes, portrait or landscape orientation, tested weather-tightness, fire and impact performance.

Suitable for new-build and refurbishment applications across commercial, residential, education and healthcare sectors.

SYSTEM OVERVIEW

Aspect® is a rainscreen façade system designed for strength, performance and efficient installation, combining refined panel design with an optimised rail support system.

• Class-leading rainscreen cladding system developed to provide aesthetics, performance and installation efficiency

• Designed as a rainscreen façade system with tested weather-tightness performance

• Fully integrated façade solution developed through design refinement

• Designed to improve coordination between components and simplify on-site installation

• Refined panel and rail approach supports faster, more cost-effective project delivery

• Hidden-fix, hook-on panel system creates a concealed-fix façade solution

• Clean, continuous horizontal and vertical joint lines

• Designed to accommodate both landscape and portrait panel orientations

• Thermally efficient stainless-steel brackets help lower thermal conductivity within the sub-frame

• Designed around non-combustible materials including aluminium and stainless steel

• System components can also be used individually with industry-leading materials including cavity barriers, stone wool insulation and breather / weather membranes

TESTING

• Reaction-to-fire tested under EN 13501-1:2013

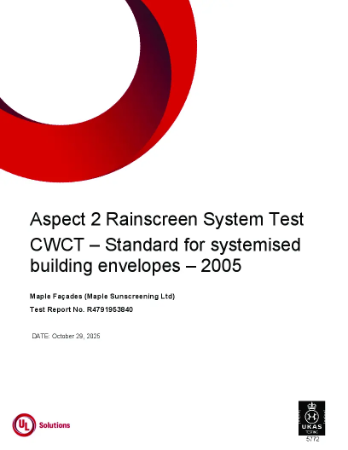

• Performance-tested to CWCT Sequence B at both Initivo and UL

• Lab-tested by Initivo Consultancy Ltd, including tests for weather-tightness and impact resistance

• Maple’s systems and design principles have been tested to Centre for Window & Cladding Technology standards

• Products manufactured to BS EN ISO 9001:2015 quality standards

PANEL CONSTRUCTION

• Exterior façade panels manufactured from 2 mm or 3 mm aluminium or 2 mm stainless steel facing panels

• Additional material options include:
  • 3 mm solid aluminium
  • 3 mm perforated aluminium
  • 2 mm solid stainless steel
  • 2 mm perforated stainless steel
  • 2 mm solid Corten steel
  • 2 mm perforated Corten steel

• Panel styles include:
  • Embossed
  • Solid tray
  • Perforated
  • Image perforation

• Panels hook onto the support system

• Panels are fixed through the top to prevent removal

• Hidden-fix panel arrangement creates a concealed-fix façade solution

• Suitable for vertically and horizontally oriented panels

• Produces clean horizontal and vertical 20 mm wide shadow gaps

• Accommodates landscape and portrait panels

• Panel sizes include:
  • Up to 750 mm high x 1500 mm wide, landscape, no stiffener

• • Up to 3000 mm high x 600 mm wide, portrait, no stiffener

• • Up to 3000 mm high x 600–1200 mm wide, portrait, with stiffener

SUPPORT SYSTEM CONSTRUCTION

• Vertical L rails fixed to Maple primary brackets

• Horizontal J / C rails fixed to the L rails to form a rigid framework

• Rail configuration incorporates L, J and C profiles

• All rail elements manufactured from Aluminium 6063 T6

• Refined rail configuration improves alignment and reduces installation complexity

• Support system provides an efficient and adaptable framework

• C-rail and L-rail components in Aluminium 6063 T6, mill finish

BRACKET CONSTRUCTION

• Primary brackets manufactured from stainless steel 304

• Thermally efficient stainless-steel brackets positioned at wider centres

• Brackets designed with enhanced load-bearing capacity

• Wider bracket centres reduce overall material usage and installation time

• Stainless-steel bracket approach helps lower thermal conductivity within the sub-frame

• Maximum horizontal bracket centres 600 mm

• Maximum vertical bracket centres 1500 mm

• Brackets fixed to suitable fixing grounds

INSTALLATION AND MAINTENANCE ADVANTAGES

• Hidden-fix, hook-on panel arrangement supports efficient installation and a clean façade appearance

• Reduced installation complexity supports shorter installation periods and fewer delays

• Wider bracket centres reduce material usage and installation time

• Hidden-fix panels create a clean façade appearance

• Flexible fixing-zone design helps accommodate tolerance challenges

• Support rails and panels are designed to work as an integrated system

PANEL COLOUR / FINISH

• Facing panels polyester powder coated up to 120 microns or anodised to 25 microns

• Finish options include:
  • Anodised – A1 fire rated
  • Polyester powder coated (PPC) – A2 fire rated

• Finish selection dependent on project requirements and specified material

SUPPORT SYSTEM FINISH

• Support system finish: mill finish aluminium

• C-rail and L-rail shown as Aluminium 6063 T6, mill finish

BRACKET FINISH

• Bracket finish: mill finish stainless steel
