Rad-Seal Recessed Radiator Pipe Guide & Seal
Verified by manufacturer 30 days ago
EPD
Certificate type
Recessed radiator pipe guide and seal designed to eliminate potential air leakage and heat loss at vulnerable through wall radiator pipe work entry points.
Application
- At the point of entry of through wall 10mm plastic radiator pipework.
- Within all wall constructions that present a concealed pipe void including studded dry lined walls and plaster dab solid walls.
Description
Recessed radiator pipe guide and seal designed to eliminate potential air leakage and heat loss at vulnerable through wall radiator pipe work entry points.
Features and benefits:
- Contributes to Part L’s required air leakage performance.
- Air permeability measured and verified by BRE at Part L’s 50 Pa as:
- 0.24 m³ (h·m²) under positive pressure test conditions.
- 0.30 m³ (h·m²) under negative pressure test conditions.
- Centrally and neatly contains the pipework during the plastering process.
- Protects the pipework and plaster from direct chafing.
- Replaces the requirement of electrical back boxes, intumescent foams or sealants.
- Straight forward and quick face fix installation.
- Projects by just 5 mm from the wall.
- Securely positions the pipework into the required direction for connection.
- Eliminates pipework kinking.
Quality:
- Manufactured to BS EN ISO 9001 and BS EN ISO 14001.
- Helping to meet Building Regulation:
- Document Part L – Conservation of Fuel and Power
General information
Color | White |
Material | Polypropylene Guidance for specification option: Gasket seal entry and seals: light grey thermoplastic elastomer. |
Shape | Circle |
Length | 140 mm |
Width | 25 mm |
Height | 140 mm |
Uniclass | |
CAWS | E40/320 Hydrophilic waterstops D40/565 Proprietary waterstops P12/370 Pipe collars P12/43 Pipe collars |
SKU Code | 1115 |
Specification data - Wall collars
Classification data | |
Material | Polypropylene (PP) with thermoplastic elastomer gasket seal entry and seals. |
Size | 140 mm diameter. |
Sustainability data
Clarity for low-carbon design
NBS LCA helps construction professionals measure environmental impact and identify low-carbon emission products for more sustainable projects.
Material | Polypropylene Guidance for specification option: Gasket seal entry and seals: light grey thermoplastic elastomer. |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalized unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalized unit : Declared unit :0.00695 | |
Product certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Product certifications
Literature

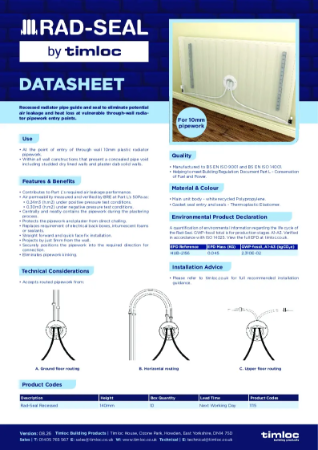

Rad-Seal Recessed Radiator Pipe Guide & Seal Datasheet
