Rad-Seal 15 Face-Fix Radiator Pipe Guide & Seal - Radiator Pipe Guide
Verified by manufacturer 1 month ago

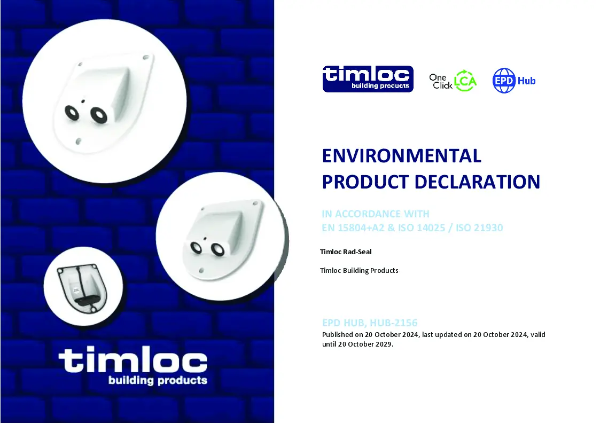

EPD
Certificate type
Face-fix radiator pipe guide and seal.
Application
Uses:
At the point of entry of through-wall 15 mm plastic radiator pipework.
Within all wall constructions that present a concealed pipe void including:
- Studded dry lined walls;
- Plaster dab slab walls.
Description
Face-fix radiator pipe guide and seal designed to eliminate potential air leakage and heat loss at vulnerable through-wall radiator pipework entry points.
Features and benefits:
- Contributes to Part L’s required air leakage performance.
- Protects the pipework and plaster from direct chafing.
- Straight-forward and quick face fix installation.
- Projects by just 23.5 mm from the wall.
- Securely positions the pipework into the required direction for connection.
- Eliminates pipework kinking.
- Patent-pending design.
Quality:
- Manufactured to BS EN ISO 9001 and BS EN ISO 14001.
- Helps to meet Building Regulation Document Part L - Conservation of Fuel and Power.
General information
Color | White Grey |
Material | Polypropylene Thermoplastic elastomer (TPE) |
Shape | Other |
Length | 23.5 mm Guidance for specification option: Depth. |
Width | 126 mm |
Height | 140 mm |
Uniclass | |
CAWS | T90/465 Radiators |
SKU Code | 2222 |
Specification data - Radiator pipe seals
Classification data | |
Material | Polypropylene. |
Seal | Thermoplastic elastomer. |
Colour | White. |
Seal colour | Light grey. |
Dimensions | 126 x 140 x 23.5 mm. Manufacturer guidanceW x D x H. |
Sustainability data
Clarity for low-carbon design
NBS LCA helps construction professionals measure environmental impact and identify low-carbon emission products for more sustainable projects.
Material | Polypropylene Thermoplastic elastomer (TPE) |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalized unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalized unit : Declared unit :0.00695 | |
Product certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Product certifications
Literature

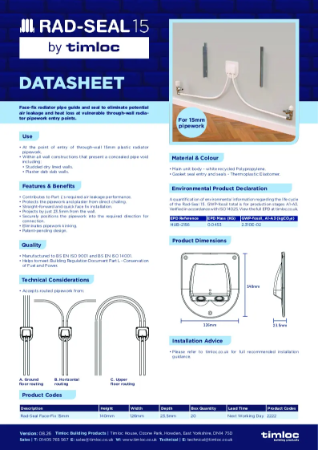

Rad-Seal 15 Face-Fix Radiator Pipe Guide & Seal Datasheet
