Projecting Brise Soleil | Rectangular | Skyvane®

Skyvane® is used on façades requiring solar shading and glare control, particularly in commercial, education and infrastructure projects where occupant comfort, energy performance and architectural expression are key considerations.

SYSTEM OVERVIEW:

Skyvane® is a horizontally projecting aluminium brise soleil system designed to provide effective solar shading and glare reduction, improving occupant comfort and building energy performance.

• Designed to reduce solar gain and glare, protecting against high summer temperatures.
• Utilises rectangular aluminium blades to deliver a clean, linear architectural expression.
• Blades positioned to provide optimal shading when the sun is at its highest point.
• Fixings and support system designed to ensure consistent alignment for both aesthetic and functional performance.
• Projecting system enhances façade depth while maintaining visual consistency.
• Modular design supports efficient installation and programme certainty.
• Suitable for commercial, education and infrastructure projects requiring solar shading.
• Aligns with architectural intent through flexible blade orientation and configuration.

TESTING:

• Designed in accordance with project-specific wind load and structural performance requirements.
• Blade spans, projections and fixing arrangements determined based on building design and exposure conditions.
• System performance focused on solar shading effectiveness, durability and structural integrity.

BLADE CONSTRUCTION:

• Rectangular blades manufactured from Aluminium 6063 T6
• System configuration options:
  • Available as cassette panels or solo blade construction depending on project requirements.

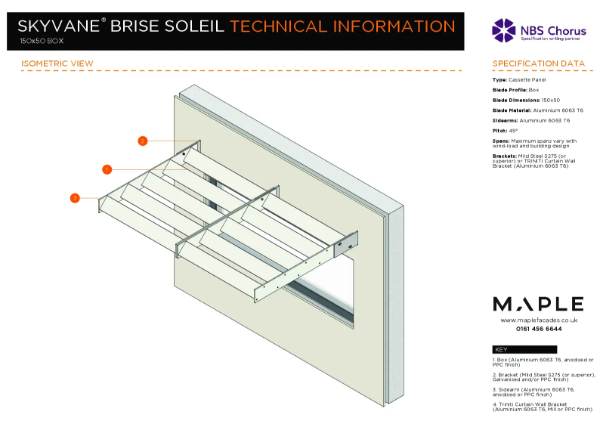

• Cassette system:
  • Rectangular blades typically ranging from 100 to 250 mm.
  • Cassette panels formed from Aluminium 6063 T6 blades fixed between Aluminium 6082 T6 / Aluminium 5083 H111 side arms.
  • Modular panelised construction supports efficient installation and consistent alignment.
• Solo system:
  • Larger rectangular blades typically ranging from 300 to 500 mm.
  • Blades fixed individually between Aluminium 6082 T6 / Aluminium 5083 H111 side arms.
  • Suitable for larger spans and more expressive architectural applications.
  • Blade projection and run length determined by project location, wind loading and façade design.
  • Blade pitch options include 0°, 45° and 90° to control solar shading performance.
  • Designed to balance shading efficiency with architectural expression.

VERTICAL SUPPORT CONSTRUCTION:

• Support arms (sidearms) manufactured from Aluminium 6082 T6 or Aluminium 5083 H111.
• Designed to support projecting blade loads and maintain system stability.
• Configured to suit façade geometry, projection depth and structural requirements.
• Provides consistent spacing, alignment and projection from façade.
• Designed to accommodate structural tolerances and installation requirements.

BRACKET CONSTRUCTION:

• Laser-cut and folded brackets manufactured from galvanized mild steel (S275 or similar), engineered to suit project-specific loads, wind conditions and tolerances.
• Alternative TRINITI curtain wall brackets manufactured from Aluminium 6063 T6 available.
• Designed to fix system back to primary structure or façade system.
• Suitable for installation onto concrete, steel or curtain walling systems.
• Allows adjustment to accommodate installation tolerances.
• Engineered to support projected loads and maintain façade integrity.

INSTALLATION AND MAINTENANCE ADVANTAGES:

• Modular brise soleil system supports efficient, repeatable installation.
• Cassette panel option enables rapid installation and improved programme certainty.
• Solo blade option allows flexibility for complex or bespoke façade designs.
• Projecting system reduces need for complex secondary support structures.
• Durable aluminium materials provide low maintenance requirements.
• Suitable for installation in both new-build and retrofit applications.

BLADE COLOUR / FINISH:

• Aluminium blades polyester powder-coated to 60 µm or anodized to 25 µm.
• Available in standard RAL or BS colour ranges.
• Optional woodgrain powder coating available to replicate natural timber finishes.
• Finish selected to suit architectural and environmental requirements.

VERTICAL SUPPORT FINISH:

• Aluminium support arms polyester powder-coated to 60 µm or anodized to 25 µm.
• Colour to match or complement blade finish.

BRACKET FINISH:

• Typically hot-dip galvanized mild steel for corrosion protection.
• Polyester powder-coating (60 µm) available where exposed or for aesthetic coordination.
