Plastic Hinged Drop Down Loft Access Doors
Verified by manufacturer 14 days ago
1169 - U-value 0.82 W/m²K
1169 - U-value 0.82 W/m²K

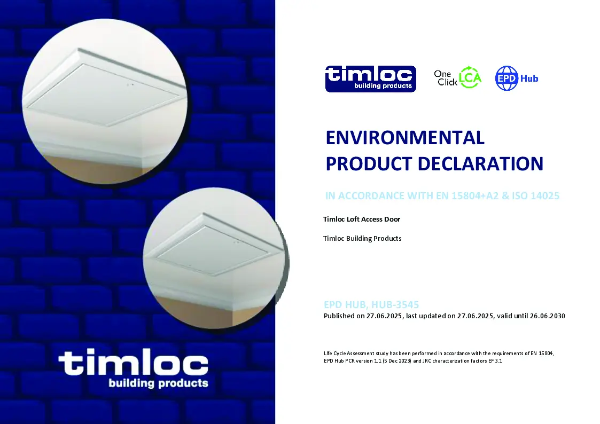

EPD
Certificate type
Hinged loft doors with lockable options.
Application
Access through ceiling into the loft space.
Description
Hinged loft doors with lockable options.
Features and benefits:
- Air permeability measured at 50 Pa as 0.00 m³ (h·m²) under positive pressure test conditions.
- Purpose-made product saves time and money compared with traditional joiner-made timber loft access doors.
- Independently air leakage tested by BRE.
- Excellent aesthetic appearance.
- Factory finished and ready to fit straight from the box.
- Insulated door panel with integral draught/vapour seal.
- Maintenance free, no need to paint.
- Hinged design allows use of a telescopic loft ladder.
- Acoustic performance of 30dB.
- Secure key-operated lock option available.
Quality:
- Satisfies all NHBC requirements.
- Manufactured to BS EN ISO 9001 and BS EN ISO 14001.
- Complies with Building Reg. document L1A and L2A (2013 edition).
- Meets all relevant British Standards.
General information
Color | White Guidance for specification option: RAL 9010. |
Material | Polypropylene |
Shape | Rectangle |
Length | 562 mm |
Width | 665 mm |
Uniclass | |
CAWS | K10/57 Encasement on timber framing K10/55 Encasement system (metal framing) K10/41 Wall lining system (metal furrings) K10/35 Wall lining system (metal framing) K10/45 Wall lining system (adhesive) K10/50 Suspended ceiling system on metal framing K10/30 Metal stud K10/15 Lining on timber K10/25 Ceiling lining on timber K10/430 Access panels |
SKU Code | 1169 |
Specification data - Access panels
Classification data | |
Position | Ceiling-mounted. |
Size | 562 x 665 mm. Guidance for specification option: Frame fitting size: 562 x 665 mm. Clear opening size: 526 x 626 mm. |
Frame | Exposed picture frame type. |
Panel | |
Material | Polypropylene door and frame with polystyrene foam insulation. |
Integral finish | White. Guidance for specification option: RAL 9010. |
Latch or lock type | Manufacturer's standard. |
Operation | Hinged. |
Integral accessories | None. Loft door operating pole, 1170. Guidance for specification option: Length: 500 mm. |
U-value | 0.82 W/m²K. |
Sustainability data
Clarity for low-carbon design
NBS LCA helps construction professionals measure environmental impact and identify low-carbon emission products for more sustainable projects.
Material | Polypropylene |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalized unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalized unit : Declared unit :7.1298 Lower emissions | |
Product certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Product certifications
Literature

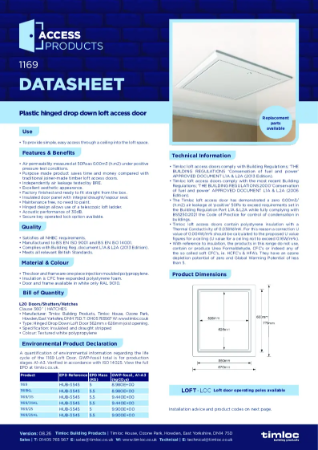

Plastic Hinged Loft Door 1169 Datasheet
