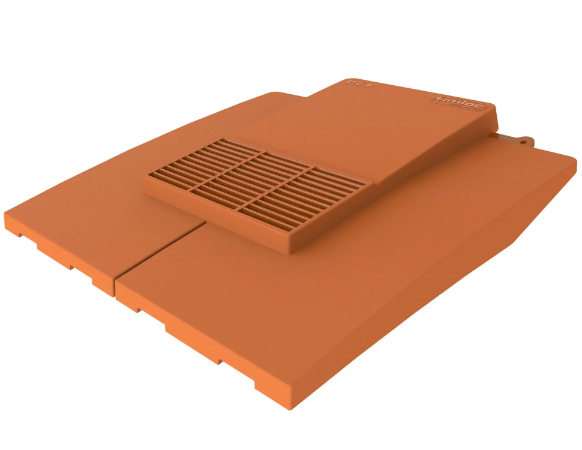

Plain Roof Tile Vent

Name: Plain Roof Tile Vent
Brand: Timloc Building Products
SKU: eJUt2YYnj9a1fzKiQqCmf9

Verified by manufacturer 1 month ago

RTV-PTE - terracotta

Product certifications:

Plain roof tile vent.

Jump to:

Application

Suitable for roofs with a minimum pitch of 35°.

On roofs with plain roof tiles including:

Plain roof tile vent to enable ventilation directly into a roof space or connect to a ducted ventilation system.

Features and benefits:

Suitable for roofs with a minimum pitch of 35°.
Free ventilation area of 7000 mm².
Sized to replace three plain tiles to provide a continuous visual appearance along the roof when viewed at all levels.
Shaped to manage and channel rainwater back down onto the roof tiles and away from the vent opening.
4 mm spaced external grille to prevent rainwater ingress and keep out large insects, vermin and debris.
UV stabilised top for continuous exposure to sunlight.
Lightweight and easy to handle.
Enables ventilation directly into a roof space.
Can be connected to a ducted ventilation system inside the building.

Relevant standards:

Independently tested by BRE for deluge and wind driven rain to PD CEN/TR15601:2012
BS EN 490:2011 Concrete roofing tiles and fittings for roof covering and wall cladding - product specifications (+A1:2017)
BS 5250: 2021 Management of moisture in buildings – Code of practice
BS 5534:2014 Slating and tiling for pitched roofs and vertical cladding – code of practice (+A2:2018)
Manufactured to BS EN ISO 9001:2015 and BS EN ISO 14001:2015
Complies with all relevant sections of the Building Regulations 2010
Satisfies all relevant NHBC requirements

Uniclass	Pr_30_59_29_73 Roof slope ventilator tilesPrimary
CAWS	H65/86 Ventilator tiles H60/840 Ventilator tiles H65/840 Ventilator tiles H60/86 Ventilator tiles

SKU Code	RTV-PTE

Classification data
Purpose	Ventilation directly into a roof space or connect to a ducted ventilation system.
Colour	Terracotta.
Accessories	Not required. Plain adapter. Guidance for specification option: RTV-ADP. Multi adapter. Guidance for specification option: RTV-ADMULTI. 110 mm flexi-pipe. Guidance for specification option: RTV-KIT1.
Weight	0.7 kg.
Free area	7000 mm².
TileWidth	333 mm.
TileLength	334 mm.
Depth	121 mm.
Surface material	UV stabilized coloured injection-moulded polypropylene.
Surface finish	Textured.
Base	Black injection-moulded polypropylene.
Standards	To BS EN 490:2011, BS 5250:2021, BS 5534:2014, BS EN ISO 9001:2015, BS EN ISO 14001:2015.
Third-party certification	Complies with all relevant Building Regulations 2010, Satisfies all NHBC requirements.

Material	Polypropylene

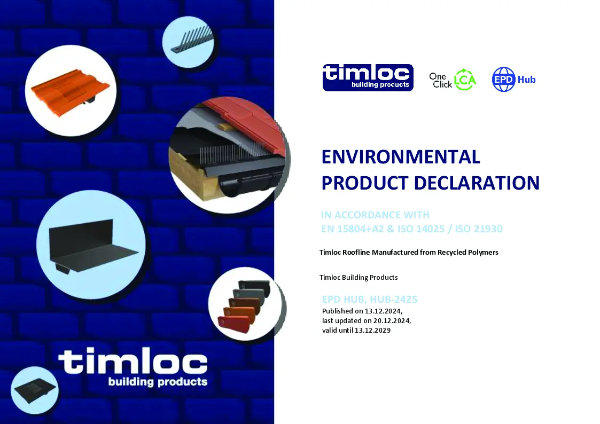

Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalized unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalized unit :-0.007 (kg CO₂ eq/kg) Declared unit :-0.00742 Lower emissions
