Metal Ceiling Access Panel – Picture Frame – R05 Range - Access Panels, Ceiling Panels

Name: Metal Ceiling Access Panel – Picture Frame – R05 Range - Access Panels, Ceiling Panels
Brand: Rapid Access Ltd
SKU: vMu8fP1odVQhynhs9Wvz5c

Verified by manufacturer 9 hours ago

Fire Rated - R05-060-MD-PF-L12A

Rapid Access Ltd

Product certifications:

BRE Certificate
Certificate type
BRE Certificate
Certificate type
Warringtonfire
Certificate type

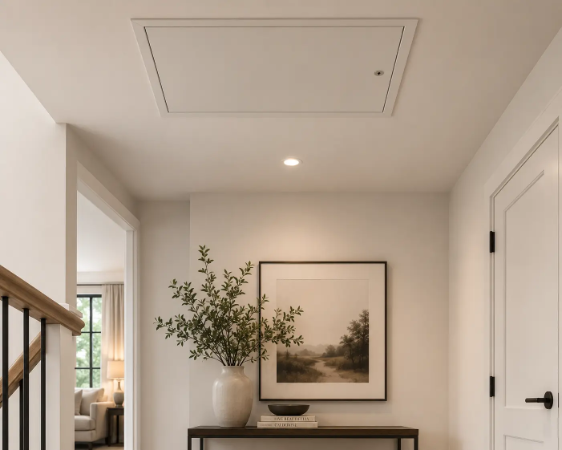

The R05 Metal Ceiling Access Panel is a steel access panel designed to provide secure inspection and maintenance access to concealed building services within ceiling systems.

Jump to:

BOS

+44 (0)24 7632 8811 Website

Application

Designed to provide secure inspection and maintenance access to concealed building services within plasterboard and suspended ceiling systems. The 25 mm picture frame provides a neat, exposed frame finish that sits flush against the surrounding ceiling surface, making it suitable for applications where regular access is required without compromising the finished appearance.

Suitable for use in:

Commercial offices.
Residential housing.
Apartment and multi-occupancy developments.
Healthcare facilities.
Educational buildings.
Hotels and leisure developments.
Retail premises.
Industrial and warehouse buildings.
Public sector buildings.

Ideal for installation within plasterboard ceilings, MF ceilings, suspended ceilings and other ceiling systems, providing access to concealed mechanical, electrical and plumbing (MEP) services, including HVAC equipment, ductwork, electrical wiring, lighting connections, pipework, valves, data cabling and control systems. Suitable for both new-build and refurbishment projects where durable, long-term access to ceiling service voids is required.

Description

Download product information, technical data sheets and supporting documentation from Rapid Access:

Product Information:

Fire Rated - R05-060-MD-PF-L12A

Datasheets:

Fire Rated - R05-060-MD-PF-L12A

The R05 Metal Ceiling Access Panel is a steel access panel designed to provide secure and convenient inspection access to concealed building services within plasterboard and suspended ceiling systems. Suitable for residential, commercial and public sector buildings, it provides easy access for the inspection and maintenance of mechanical, electrical and plumbing (MEP) services, including electrical installations, pipework, ductwork and HVAC systems.

Manufactured from high-quality steel, the panel features a 25 mm picture frame with a metal-faced door, providing a neat, exposed frame finish that integrates cleanly with the surrounding ceiling surface. The panel is supplied with a three-point locking system as standard to provide secure closure and straightforward access, with alternative locking options available to suit project requirements.

Finished in a durable RAL 9010 (30% gloss) polyester powder coating as standard, the R05 range is available in a wide range of standard sizes, with bespoke sizes and alternative RAL colours available on request.

Designed specifically for ceiling applications, the R05 Metal Ceiling Access Panel provides a durable and practical solution for accessing concealed service voids while maintaining a clean architectural appearance.

Key Features

Steel ceiling access panel with metal-faced door.
25 mm picture frame for a clean, exposed frame finish.
Three-point locking system supplied as standard.
Polyester powder-coated RAL 9010 (30% gloss) finish.
Alternative locking options available.
Bespoke sizes and alternative RAL colours available.
Durable steel construction for long-term performance.
Suitable for inspection and maintenance access to concealed building services.
Manufactured from recyclable steel.

Installation

Designed for installation into plasterboard and suspended ceiling systems to provide access to concealed building services.

Prepare the structural opening in accordance with the manufacturer's installation instructions.
Install the frame square and level before completing the surrounding ceiling finishes.
Secure the panel using suitable mechanical fixings appropriate to the ceiling construction.
Ensure the three-point locking mechanism operates correctly before commissioning.
Full installation instructions are available from Rapid Access.

General information

Color	White Guidance for specification option: RAL 9010 Other Guidance for specification option: Minimum and maximum size depends on the ceiling access panel type and application.
Finish	Powder-coated
Material	Zintec steel Metal Steel
Shape	Square Rectangle
Length	Bespoke Guidance for specification option: Minimum and maximum size depends on the ceiling panel type and application.
Width	Bespoke Guidance for specification option: Minimum and maximum size depends on the ceiling panel type and application.
Height	Bespoke Guidance for specification option: Minimum and maximum size depends on the ceiling panel type and application.
Warranty description	Ten year

Uniclass	Pr_30_59_36_01 Access panelsPrimary
CAWS	K40/280 Access units K10/430 Access panels

SKU Code	R05-060-MD-PF-L12A, R05-055-MD-PF-L12A-ATN-40A

Specification data - Access panels

Classification data
Fire performance	-
Fire resistance	60 minutes to BS 476-22. Guidance for specification option: Up to 1000 x 1000 mm in a ceiling application.
Position	Ceiling-mounted.
Size	Guidance for specification option: Consult manufacturer and insert requirements.
Frame	Exposed picture frame type.
Panel	-
Material	Steel. Guidance for specification option: Zintec Steel.
Integral finish	Powder-coated.
Latch or lock type	Three-point espagnolette bolt. Guidance for specification option: As standard. Other. Guidance for specification option: Other lock options are available upon request. Consult manufacturer and insert requirements.
Operation	Full piano hinge, opening downward.
Integral accessories	Draught sealing to frame.
Colour	RAL 9010 30% gloss. Other. Guidance for specification option: Other colours available on request, consult manufacturer and insert requirements.
Door thickness	0.9 mm.
FrameThickness	1.2 mm.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Manufacturing plant location	Nuneaton, UK
Material	Zintec steel Metal Steel
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared
Stage Normalized unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalized unit : Declared unit :Product manufactured in bespoke sizes; A1–A3 impact varies according to dimensions, specification and selected performance options. Manufacture includes raw material extraction and processing, production of Zintec steel, transport of materials to the manufacturing facility, fabrication of the steel door and frame, assembly of hardware, polyester powder coating, quality control, and packaging for distribution. Steel manufacturing is the principal contributor to embodied carbon during the production stage.
Recyclability	Fully Recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	22 %
Expected Life	Ten year
