Lintel Stop End
Verified by manufacturer 10 months ago

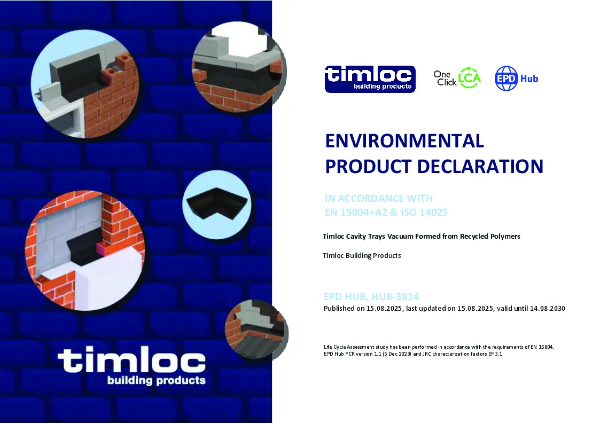

EPD
Certificate type
Profile to protect modern steel lintels.
Application
- On steel lintels situated in external walls;
- On external walls (not exceeding 102.5 mm-thick) built in standard brick, block or stone.
Description
Profile to protect modern steel lintels.
Features and benefits:
- Purpose-made and pre-formed to guarantee an accurate fit on most popular types of steel lintel.
- Far more accurate and reliable than site-formed stopends, or than folding up the ends of the over-lintel damp proof course (DPC).
- Factory fitted butyl mastic seal ensures a secure and watertight bond to the lintel.
Quality:
- Satisfies all NHBC requirements.
- Manufactured to BS EN ISO 9001 and BS EN ISO 14001.
- Complies with all relevant Building Regulations.
- Meets all relevant British Standards.
General information
Color | Black |
Material | Polypropylene |
Length | 65 mm |
Width | 95 mm |
Height | 75 mm |
Uniclass | |
CAWS | F30/380 Junction cloaks/ stop ends for preformed dpcs/ cavity trays F30/385 Junction cloaks/ stop ends for preformed dpcs/ cavity trays F30/58 Preformed dpc/ cavity tray junction cloaks/ stop ends |
SKU Code | LS01 |
Specification data - Preformed cavity trays
Classification data | |
Material | Polypropylene (PP). |
Height | 75/ 65 mm. |
Sustainability data
Clarity for low-carbon design
NBS LCA helps construction professionals measure environmental impact and identify low-carbon emission products for more sustainable projects.
Country of product manufacture | United Kingdom |
Material | Polypropylene |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalized unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalized unit :0.003 (kg CO₂ eq/kg) Declared unit :0.0031 Lower emissions | |
Product certifications
Product certifications
Literature
Lintel Stopend Datasheet
