Langley TA - 25 Bitumen Membrane Cold Roof Waterproofing System

Name: Langley TA - 25 Bitumen Membrane Cold Roof Waterproofing System
Brand: Langley Waterproofing Systems Ltd
SKU: 7byp5PKgWbSJMwtCRfPebE

Verified by manufacturer 1 month ago

Langley Waterproofing Systems Ltd

Product certifications:

BBA Agrément Certificate
Certificate type

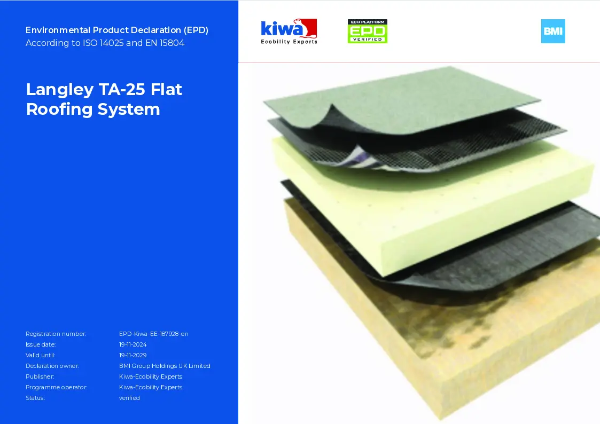

EPD
Certificate type

An SBS torch applied cold roofing system offering a 25-year independent insurance backed guarantee. Suitable for new build or refurbishment projects.

Jump to:

+44 (0)1327 704778 Website

Application

Suitable for flat or sloping roofs.
For new build or refurbishment projects.
Suitable for all roof decks.

Description

The TA-25 Cold system, part of the Langley Elastoflex range, a cold roofing system offering a 25-year independent insurance-backed guarantee. This cold roof system, is a torch applied SBS elastomeric membrane system for flat or sloping roofs.

Features and benefits:

25-year independent insurance backed guarantee.

TA-25 C membranes are covered by MOAT 31 (Reinforced Homogenous coverings of SBS Elastomeric Bitumen).

The cap sheet is available in dark grey. For delineating walkways, the cap sheet is available in bauxite red.

EPD Certification for bitumen membranes.

Subject to installation, use and maintenance in accordance with BBA Certificate 12/4959, the system can satisfy or contribute to satisfying relevant NHBC requirements under NHBC standards, Chapter 7.1 Flat roofs, terraces and balconies.

All Langley elastomeric membranes have been developed in accordance with the European Union of Agrément (UEAtc) and are manufactured and tested in accordance with UEAtc MOAT special directives (Methods of Assessment and Testing).

Supported by the full Langley package that includes: surveys, condition reports and proposals, specifications, site monitoring and reporting, technical and design advice, guarantee inspections, all at no additional cost.

General information

Color	Grey
Material	Bitumen
Warranty description	25 year Guidance for specification option: Carries a 25 year independently insured guarantee Manufacturer guidance All Langley roofing systems are supplied with a genuine 20, 25 or 30 year independent insurance backed guarantee, providing long term cover in the event of design failure, poor workmanship, and faulty materials. Offering both system assurance and financial protection to the building owner, the IBG remains valid even if the installing contractor or Langley were to cease trading. Issued directly to the building owner on completion, the guarantee is independently regulated, Crystal Mark accredited by plain English, and also TRUSTMARK approved, supporting access to government funding schemes where an IBG is mandated. Langley’s IBG is included as standard within the overall project price, with no separate insurance premium required.

Uniclass	Ss_30_40_30_70 Reinforced bitumen membrane cold roof covering systemsPrimary
CAWS	J41/12 Reinforced bitumen membrane cold deck roof covering J41/130 Built-up reinforced bitumen membrane cold deck roof covering

Specification data - Reinforced bitumen membrane cold roof covering systems

Classification data
System performance	Fire performance: Broof(t4) BS EN 13501-5:2016.
Preparation	-
Horizontal work	Langley SA Primer.
Skirtings and vertical work	Langley SA Primer.
Waterproof covering	-
First layer	-
Type	Paradiene S VV underlay, 2.5 mm (3.4 kg/m²).
Attachment	Torch applied.
Top layer	-
Type	Elastoflex GS cap sheet, 5 mm (6.05 kg/m²) Guidance for specification option: 4 mm at selvedge.
Attachment	Torch applied.
Detail work	-
Flashings	Paraflash B3.
Skirtings and upstands	Detailing membranes.
Welted drips	Formed from cap sheet around a former. Manufacturer guidance Welted drips to be formed from the cap sheet; consult manufacturer for more details an insert requirements.
System accessories	Not required. Rooflights. Outlets. Trims.
Colour	Cap sheet: Dark grey (as standard).

Sustainability data

Contains Red List materials	No
Country of product manufacture	France
Manufacturing plant location	30 Rue Poterie, 41170 Cormenon, France
Material	Bitumen
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalized unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalized unit : Declared unit :7.3
Recyclability	EPD end-of-life scenario assumes 15% material recycling, 45% energy recovery and 40% landfill. No verified recyclability claim is declared in the EPD.
Expected Life	50 year
