Inline Slate Vent Adapter
Verified by manufacturer 1 month ago
EPD
Certificate type
Provides Timloc inline slate vents with a 110 mm duct or soil vent pipe connection.
Application
- Compatible with the Timloc Inline Slate Vent and Small Inline Slate Vent.
- Roof ventilation applications.
Description
110 mm duct adapter for the Timloc inline slate vent.
Features and benefits:
- Compatible with the Timloc Inline Slate Vent and Small Inline Slate Vent.
- Simply click into position to secure the adapter to spigot of the tile vent.
- Provides a precise fit to 110 mm duct or soil vent pipe.
- Adapter sits below the roof batten to provide a simple, neat installation.
Relevant standards:
- BS 5250: 2021 Management of moisture in buildings – Code of practice.
- Manufactured to BS EN ISO 9001:2015 and BS EN ISO 14001:2015.
- Complies with all relevant Building Regulations 2010.
- Satisfies all NHBC requirements.
General information
Color | Black |
Material | Polypropylene |
Shape | Other |
Length | 165 mm |
Width | 243 mm |
Height | 50 mm |
Uniclass | |
CAWS | F30/17 Ventilation ducts in external walling F30/171 Ventilation ducts in external walling U90/340 Through wall ventilator ducts |
SKU Code | RTV-ADIS |
Specification data - Ventilation ducts
Classification data | |
Material | Injection moulded polypropylene. |
Accessories | Not required. Multi adapter. Guidance for specification option: RTV-ADMULTI. 110 mm flexi-pipe. Guidance for specification option: RTV-KIT1. |
Width | 243 mm. |
Length | 165 mm. |
Side profile | 50 x 240 mm. |
Diameter | 110 mm. |
Weight | 0.24 kg. |
Standards | To BS 5250:2021, BS EN ISO 9001:2015, BS EN ISO 14001:2015. |
Third-party certification | Complies with all relevant Building Regulations 2010, Satisfies all NHBC requirements. |
Sustainability data
Clarity for low-carbon design
NBS LCA helps construction professionals measure environmental impact and identify low-carbon emission products for more sustainable projects.
Country of product manufacture | United Kingdom |
Material | Polypropylene |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalized unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalized unit :0.006 (kg CO₂ eq/kg) Declared unit :0.006025 Lower emissions | |
Product certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Product certifications
Literature

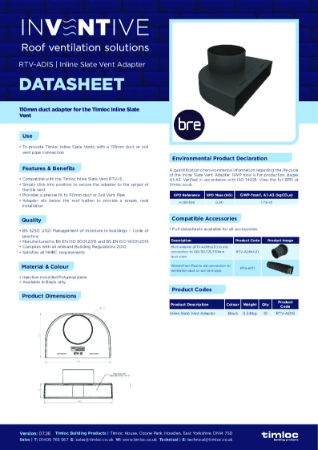

Inline Slate Vent Adapter Datasheet
