ALPOLIC™ A2 Aluminium Panel Laminated with Geo Mineral Core - Aluminium Composite Panel

Name: ALPOLIC™ A2 Aluminium Panel Laminated with Geo Mineral Core - Aluminium Composite Panel
Brand: PCS Ltd. (Pro Composite Solutions)
SKU: bxBdf5iB1HNVvtSivLZvNo

Verified by manufacturer 1 month ago

PCS Ltd. (Pro Composite Solutions)

Product certifications:

EPD
Certificate type
BBA Agrément Certificate
Certificate type
BS 8414-2:2020
Certificate type
DIBt
Certificate type
CWCT Certificate
Certificate type

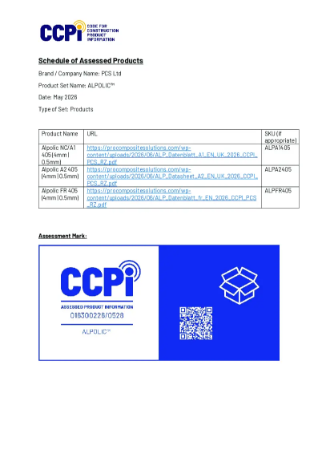

CCPI Product
Certificate type

Aluminium panel laminated with geo mineral core classified in accordance with the European fire protection standard DIN EN 13501-1 for building material, class A2-s1,d0 (non-combustible).

Jump to:

+44 (0)3301 75 75 07 Website

Application

Suitable for cladding high-rise buildings and high-risk buildings where the use of non-combustible facade materials according to Euroclass A1 and A2 with low calorific value (PCS) is mandatory.

They are also suitable for other areas of application: sophisticated design of ventilated rainscreen cladding facades system and decorate facade for both internal and external applications.

Suitable for both new and refurbishment projects.

Rear-ventilated facades.
Facade and roof cladding.
Veneers.
Corporate identity.
Interior architecture.

Description

Aluminium panel laminated with geo mineral core classified in accordance with the European fire protection standard DIN EN 13501-1 for building material for fire protection class A2-s1,d0 (non-combustible).

Manufactured from two 0.5 mm-thick aluminium cover sheets, applied to a non-combustible (UK: limited-combustible) mineral core in a fusing process.

The front is usually coated with LUMIFLON™ – based on a transparent fluoropolymer resin (FEVE) – or with DURAGLOSS® 5000.

Features and benefits:

Excellent flatness.
High rigidity.
Low weight.
Robust and durable.
Impact and fracture resistant.
Corrosion-resistant, weather-resistant, UV-resistant and graffiti-resistant.
Easy to process.
High-quality surface coating.
Consistent colour quality and consistency.
Wide variety of colours and designs.
Approved by building authorities.
Almost 100% recyclable.
EPD certified.
BBA approved.

General information

Color	Beige Black Blue Bronze Brown Copper Cream Gold Green Grey Ivory Orange Purple Red Silver Turquoise White Yellow Other Show more
Finish	Matt Satin Metallic Coated Brushed
Material	Aluminium Guidance for specification option: Cover sheets. Mineral Guidance for specification option: Core.
Shape	Rectangle Square
Length	Bespoke
Width	1000 mm 1250 mm 1500 mm 1750 mm 2015 mm
Height	4 mm Guidance for specification option: Thickness.

Uniclass	Pr_25_71_14_05 Aluminium composite material (ACM) panelsPrimary
CAWS	H43/120 Metal insulating sandwich panel

Specification data - Aluminium composite material (ACM) panels

Classification data
Panel construction	-
Aluminium skins	-
Alloy	3105 H44 and 3005 H44.
Thickness	0.5 mm. Guidance for specification option: Both sides.
Core	Mineral, 3 mm-thick.
Panel dimensions	-
Length	Guidance for specification option: Insert requirements, maximum 7300 mm. Manufacturer guidance Tolerance: ±1 mm.
Width	1250 mm. 1000 mm. 1500 mm. 1750 mm. 2015 mm. Manufacturer guidance Tolerance: ±2 mm.
Overall thickness	4 mm.
Fixing type	Guidance for specification option: Consult manufacturer for options and insert requirements.
Finish as delivered	-
Outer skin	LUMIFLON™ fluoropolymer coating (FEVE) DURAGLOSS® 5000 polymer coating. Manufacturer guidance Insert requirements. The range comprises more than 200 colours and surface designs in various degrees of gloss (15–30%): solid colours, metallic, sparkling, prismatic and pattern finishes. Consult manufacturer for and technical information.
Inner skin	Manufacturer's standard. (service coating).
Colour	Guidance for specification option: Insert requirements. The range comprises more than 200 colours and surface designs in various degrees of gloss (15–30%): solid colours, metallic, sparkling, prismatic and pattern finishes. Consult manufacturer for colour charts and technical information.
Reaction to fire	-
Core	To EN 13501-1, Class A2-s1,d0 (limited-combustible). Manufacturer guidance Consult manufacturer's literature for details of other international fire classifications.
Panel external face	To EN 13501-1, Class A2-s1,d0 (limited-combustible).
Panel internal face	To EN 13501-1, Class A2-s1,d0 (limited-combustible).
Third-party certification	British Board of Agrément (BBA) certificate 19/5638, Product Sheet 1. General building approval, DIBt. Environmental Product Declaration (EPD). Avis techniques.
Tolerances	Bow: maximum 0.5% (5 mm/m) of the length or width. Squareness: maximum 5 mm.
Weight	8.4 kg/m².
Performance tensile strength	To DIN EN 1396, 150 N/mm². Guidance for specification option: 0.2% proof stress to DIN EN 1396, 130 N/mm².
Elongation	To DIN EN 1396, 3%.
Thermal expansion	To ASTM D696, 19 10^-6/°C.
Technical characteristics, other	Flexural elasticity, E to ASTM D7250, 38.5 kN/mm². Deflection temperature to ISO 75.2, 110°C. Heat potential of the core: <3 MJ/kg. Manufacturer guidance Consult manufacturer's literature for further details including surface characteristics.
