Akusto One - Acoustic Wall Panel
Verified by manufacturer 1 day ago
Akusto One (Akutex™ FT finish)
Akusto One (Akutex™ FT finish)
M1 emission classification
Certificate type
Cradle to Cradle Certified
Certificate type
Cradle to Cradle Certified
Certificate type
EPD
Certificate type
Indoor Air Comfort – Eurofins
Certificate type
European Technical Approvals
Certificate type
Health & Safety Accreditation
Certificate type
Ecophon Akusto™ One is a panel for wall applications offered in square, rectangle or circle shapes. It offers a multitude of design possibilities thanks to the many different formats and colours.
Application
Suitable for use in areas where sound absorption is required, including the following:
- Education.
- Healthcare.
- Office.
- Leisure.
- Retail.
Description
Ecophon Akusto™ One is an acoustic wall panel offered in square, rectangle and circle shapes. It offers a multitude of design possibilities thanks to the many different frameless formats and colours.
Features and benefits:
- Daily dusting, vacuum cleaning and weekly wet wiping (Akutex FT surface). Weekly dusting and vacuum cleaning (Texona) as required.
- Easily demountable - except glued installation.
- Straight painted edges in white or grey.
- Create innovative designs and patterns on the wall.
- Superior acoustic qualities.
- Frameless.
- CE marked according to the European harmonized standard EN 13964.
General information
Color | Beige Black Blue Brown Cream |
Finish | |
Material | Glass Wool Fabric |
Shape | Circle Rectangle |
Length | 513 mm 592 mm 792 mm 1192 mm |
Width | 292 mm 592 mm |
Height | 40 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | K13/170 Acoustic panel lining K13/170 Acoustic panel lining |
SKU Code | Akusto One wall panel |
Specification data - Sound attenuator infill units
Classification data | |
Form | Square, rectangle or circle shaped panel. |
Rigidity | Rigid. |
Application | Wall mounting. |
Material | Glass wool. |
Acoustic performance | |
Purpose | Absorber. |
Sound absorption | Sound Absorption to EN ISO 354. Manufacturer guidanceConsult datasheet for details. |
Fire performance | |
Reaction to fire | A2-s1,d0. |
VOC emissions | To N 13964: E1. |
Dimensions | |
Size (length x width) | 592 mm diameter. 792 mm diameter. 1192 mm diameter. 592 x 592 mm. 1192 x 292 mm. 1192 x 592 mm. |
Thickness (overall) | 40 mm. |
Edges | Square. |
Surface pattern | Solid. |
Finish | Akutex™ FT. |
Colour | White Frost. Guidance for specification option: Nearest NCS colour sample S 0500-N, 85% light reflectance. Morning Rain. Guidance for specification option: Nearest NCS Colour S 1002-B, 70% light reflectance. Scallop Shells. Guidance for specification option: Nearest NCS Colour S 0804-Y50R, 75% light reflectance. Wet Sand. Guidance for specification option: Nearest NCS Colour S 3020-Y30R, 34% light reflectance. Silent Steam. Guidance for specification option: Nearest NCS Colour S 2010-B, 50% light reflectance. Dark Diamond. Guidance for specification option: Nearest NCS Colour S 9000-N, 4% light reflectance. Cloudy Day. Guidance for specification option: Nearest NCS Colour S 1500-N, 64% light reflectance. Volcanic Ash. Guidance for specification option: Nearest NCS Colour S 2002-Y, 55% light reflectance. Silver Stone. Guidance for specification option: Nearest NCS Colour S 4502-Y, 29% light reflectance. Silk Slate. Guidance for specification option: Nearest NCS Colour S 7000-N, 13% light reflectance. Basalt Rock. Guidance for specification option: Nearest NCS colour sample S 8005-B20G, 7% light reflectance. Deep Sea. Guidance for specification option: Nearest NCS colour sample S 7010-R90B, 10% light reflectance. Pine Green. Guidance for specification option: Nearest NCS colour sample S 7010-B90G, 11% light reflectance. Dark Chestnut. Guidance for specification option: Nearest NCS colour sample S 7010-Y90R, 10% light reflectance. Spring Leaf. Guidance for specification option: Nearest NCS colour sample S 4010-G50Y, 30% light reflectance. Sage Mist. Guidance for specification option: Nearest NCS Colour S 2005-G50Y, 52% light reflectance. Manufacturer guidanceAkusto Wall in white has high light reflectance. Light reflectance and nearest NCS colour sample for all the different colours: Consult Ecophon Colours and surfaces. |
Accessories | Glue. Mechanical fixing. |
Constant humidity resistance | Class C, relative humidity 95% and 30°C, according to EN 13964. |
Indoor climate | Eurofins Indoor Air Comfort®: IAC, French VOC A and Finnish M1. |
Fixing | Connect™ One trim and Connect™ Absorber Anchor One. Connect™ One hook. Connect™ Absorber adhesive. |
Sustainability data
Clarity for low-carbon design
NBS LCA helps construction professionals measure environmental impact and identify low-carbon emission products for more sustainable projects.
Contains Red List materials | No |
Country of material origin | Sweden |
Country of product manufacture | Sweden |
Material | Glass Wool Fabric |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalized unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalized unit : Declared unit :6.51 Manufacturer guidanceLife-cycle stages A1 to C4 from EPD, in conformity with ISO 14025/ EN 15804. | |
Recyclability | Fully recyclable. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % |
Expected Life | 30 year |
Product certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Product certifications
Certification type
M1 emission classification
M1 Certificate - All Ecophon products
Cradle to Cradle Certified
Ecophon Acoustic Ceiling Solutions Certificate - Bronze level - Cradle to Cradle
Cradle to Cradle Certified
Ecophon C2C Certified Material Health Certificate - Silver level - Cradle to Cradle
EPD
Akusto - Environmental Product Declaration - Expires 2025
Indoor Air Comfort – Eurofins
Ecophon Eurofins Certificate - Akusto - Indoor Air Comfort - February 2029
European Technical Approvals
Ecophon Compliance EU Taxonomy Regulation Appendix C
Health & Safety Accreditation
Safety Data sheet Ecophon Acoustic Products
Literature
Literature type

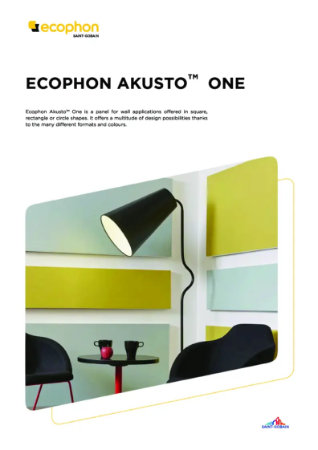

Akusto One
Data Sheet Akusto Hexagon
Data Sheet Akusto Triangle
Akusto - Environmental Product Declaration Certificate
Akusto Declaration of Performance Certificate January 2024
CPD materials
Acoustics in Education - Universal Acoustic Design
A Sound Effect on People - Acoustics Podcast
Designing for Dementia and Ageing
Impact of Acoustics on Hospital Care and Recovery
Office Acoustic Design with an Introduction to Psychoacoustics
Psychoacoustics in the Workplace
Room Acoustics- Connecting to Design
Case studies

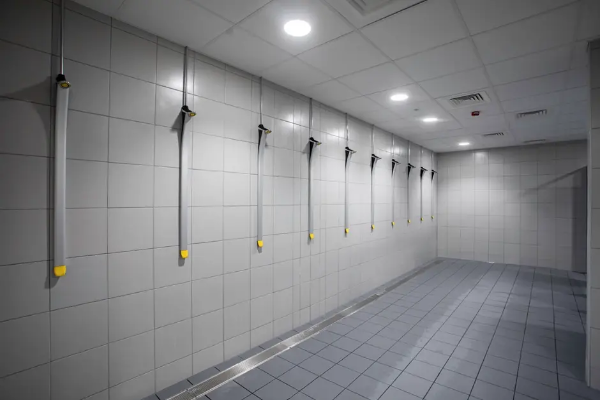

Northgate Arena

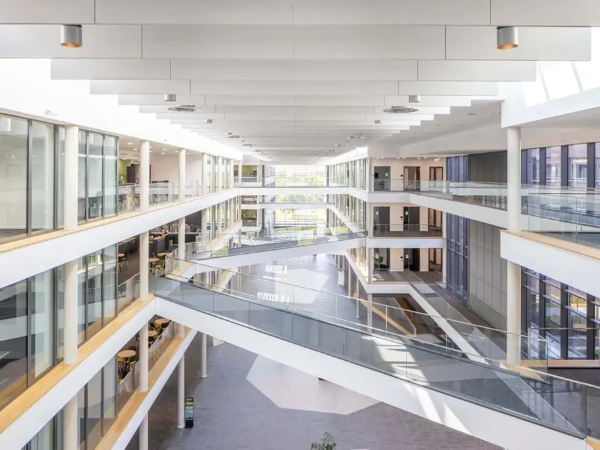

EDEKA Campus Minden
