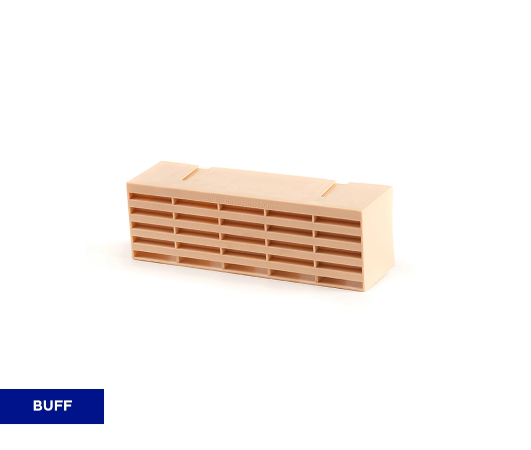

Name: Airbrick - Ventilator
Brand: Timloc Building Products
SKU: hss1ebQajS47FCL9Btq5Rv

Color

Black

Brown

Grey

White

Beige

Material

Polypropylene

Shape

Rectangle

Length

215 mm

Width

60 mm

Height

69 mm

Uniclass

Pr_35_90_50_03 AirbricksPrimary

CAWS

F30/15 Airbricks in external walling

F30/160 Airbricks in external walling

Classification data

Standard

Meets all relevant British Standards.

Guidance for specification option:

Consult manufacturer for details.

Apertures

Rectangular hole.

Work sizes

215 x 69 mm.

Guidance for specification option:

As 1201 Airbrick (specified separately).

Material

Colour

Buff (BU).

Accessories

Not required.

1201 Telescopic underfloor vent.

Guidance for specification option:

Adjustable ventilator for ground floors up to five brick courses.

GWP total A1–A3: 0.0134 kgCO₂e/kg.

1201XL Telescopic underfloor vent.

Guidance for specification option:

Adjustable ventilator for ground floors up to seven brick courses.

GWP total A1–A3: 0.0157 kgCO₂e/kg.

1203 Horizontal front extension.

Guidance for specification option:

Fits between the airbrick and upper front opening of the telescopic

underfloor ventilator (1201 or 1201XL) to accommodate external walls of more than 102.5 mm thickness, up to a maximum of 215 mm.

GWP total A1–A3: 0.0034 kgCO₂e/kg.

1204 Vertical extension sleeve.

Guidance for specification option:

Fits between the upper and lower parts of the telescopic underfloor

ventilator (1201 or 1201XL) to accommodate a vertical step of six to seven brick courses.

GWP total A1–A3: 0.0036 kgCO₂e/kg.

1205 Duct adaptor.

Guidance for specification option:

Fits on to the lower rear opening of the telescopic underfloor ventilator (1201 or 1201XL) to allow a standard 110 mm external diameter plastic underground drainage pipe to be connected via a coupling connection.

GWP total A1–A3: 0.003 kgCO₂e/kg.

1206 Horizontal rear extension.

Guidance for specification option:

Fits into the lower rear opening of the telescopic underfloor ventilator (1201 or 1201XL) to accommodate cavity widths of 50–150 mm, or internal walls of more than 100 mm thickness, up to a maximum of 200 mm.

GWP total A1–A3: 0.0031 kgCO₂e/kg.

Manufacturer guidance

Note: Accessories can be specified separately if required.

Material

Polypropylene

Carbon dioxide equivalent

Carbon dioxide equivalent, as defined in BS EN 15804

Certified

Stage

Normalized unit (kg CO₂ eq/kg)

Declared unit (kg CO₂ eq/kg)

Stage:A1–A3 ('Production stage')

Normalized unit :0.003 (kg CO₂ eq/kg)

Declared unit :0.0025

Lower emissions

Manufacturer guidance

Airbrick only; see Accessories guidance for related details.

Recyclability

Fully recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
