Acoustic Louvre | Contour® Acoustic

Contour® Acoustic is used where acoustic attenuation and ventilation are required, including plant equipment areas, data centres and other noise-sensitive environments.

SYSTEM OVERVIEW

Contour® Acoustic louvres are noise-reduction louvre systems designed to allow airflow while reducing noise transmission.

• Designed for environments where ventilation must be maintained without compromising acoustic performance.

• Suitable for managing noise from plant equipment in noise-sensitive environments.

• Available in linear, continuous and curved blade design options.

• Available as single panels, large assemblies or integrated doors.

• Single and double-bank configurations are available across the range.

• Developed to balance acoustic performance, ventilation performance and external appearance.

• Architects can specify curved blades as an alternative option to balance aesthetics and performance.

TESTING:

• Contour® Acoustic louvres are fully tested for acoustic and ventilation performance

• Sound Reduction Index (SRI) values have been obtained from testing at Salford University to BS EN ISO 10140-2:2010

BLADE CONSTRUCTION:

• Acoustic louvre blades are available in linear, continuous and curved configurations.

• Material options: aluminium or pre-galvanised steel.

• Finish: polyester powder-coated to 60 µm.

• Available in RAL and BS standard colours.

• Blade pitch and blade size vary depending on selected system type.

• Single-bank and double-bank options available depending on configuration.

• Linear blade options use a classic trapezoidal design with a linear blade finish.

• Continuous blade options provide a continuous line design with mitred corners, achieving the appearance of a weather louvre.

• Curved blade options provide an alternative curved blade appearance while offering acoustic and airflow performance.

SYSTEM OPTIONS:

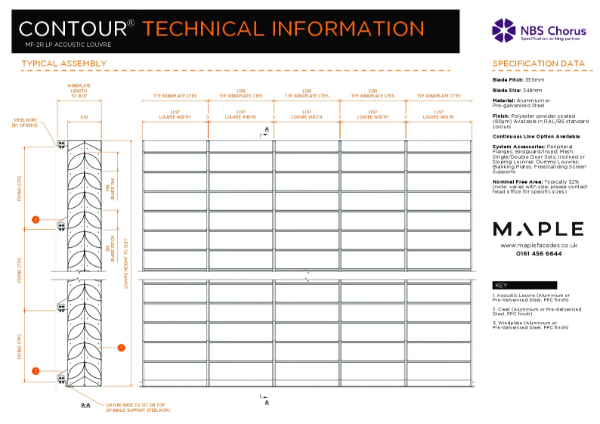

Curved blade options:

• Available in single-bank and double-bank configurations.

• Blade pitch options: 305 and 355 mm.

• Blade size: 180 mm.

• Nominal free area ranges: 23% or 32%, depending on configuration.

• Weight ranges : 28–60 kg/m², depending on configuration.

• R_W values range from 11–23 dB, depending on configuration.

Continuous blade options

• Continuous line design with mitred corners.

• Designed to achieve the appearance of a weather louvre.

• Blade pitch options: 160mm, 200mm and 305mm.

• Blade size options: 100mm and 205mm.

• Visual free area: 32%, 38% or 50%, depending on configuration.

• Nominal free range: 23%, 26% or 34%, depending on configuration.

• Weight ranges shown: 41–82 kg/m², depending on configuration.

• R_W values range from 13–25 dB, depending on configuration.

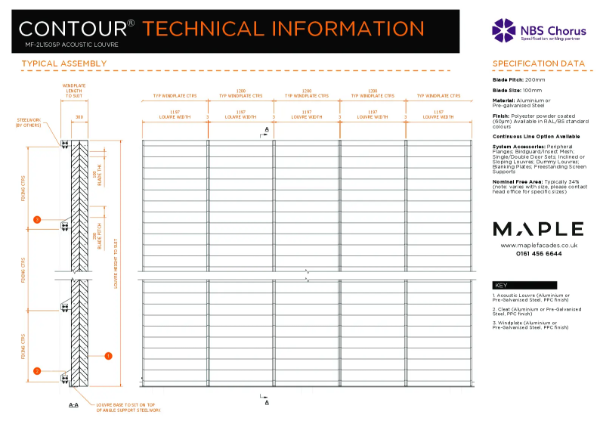

Linear blade options:

• Classic trapezoidal design with a linear blade finish.

• Blade pitch options: 160mm, 200mm and 305mm.

• Blade size options: 100mm and 205mm.

• Visual free area range: 32%, 38% or 50%, depending on configuration.

• Nominal free area range: 23%, 26% or 34%, depending on configuration.

• Weight ranges: 21–47 kg/m², depending on configuration.

• R_W values range from 8–20 dB, depending on configuration.

SUPPORT / FIXING CONSTRUCTION:

Final support and fixing requirements to be confirmed for the selected acoustic louvre type, panel size, substrate and project requirements.

INSTALLATION AND ACCESSORIES:

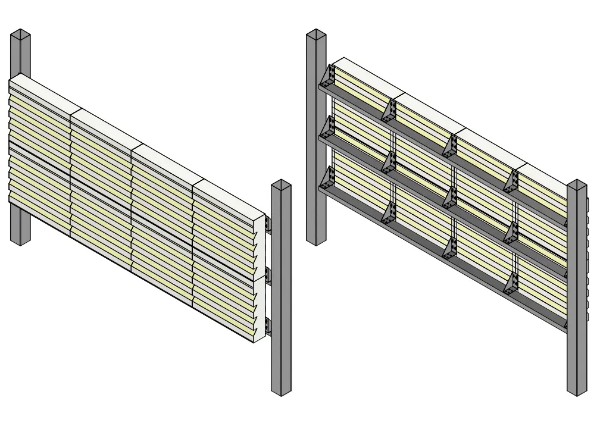

• Systems can be supplied as single panels, large assemblies and integrated doors.

• Optional accessories include single and double louvred doors.

• Optional accessories include insect mesh and vermin mesh.

• Access for maintenance should be considered when acoustic louvres are integrated into the building envelope, as stated in the specification guidance.

BLADE COLOUR/ FINISH:

• Polyester powder-coated to 60 µm.

• Available in RAL and BS standard colours.

SUPPORT/ BRACKET FINISH:

To be confirmed to suit the selected system and project requirements.
