Smokeguard
Smokeguard

Last verified by manufacturer over a year ago

Pyroguard UK Ltd

DH30/8

Last verified by manufacturer over a year ago

Pyroguard UK Ltd

DH60/8

Summary

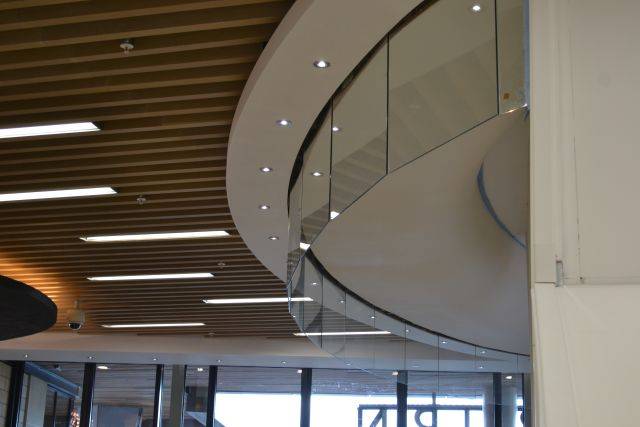

Toughened monolithic pane used to safely contain and guide smoke away from an affected area.
Toughened monolithic pane used to safely contain and guide smoke away from an affected area.
Application

Suitable for internal use, steel bracket smokescreen.

Suitable for internal use, steel bracket smokescreen.

Description

Toughened monolithic pane used to safely contain and guide smoke away from an affected area. Smokeguard products are made to order as they cannot be cut from stock sheets.


Features and benefits:

  • Single toughened monolithic 8 mm sheet.
  • Suspended from ceiling using concealed steel brackets.
  • Does not need to be installed in a profile.
  • Used to guide smoke and hot gases away from an affected area.
  • 30 or 60 minute approved.

Toughened monolithic pane used to safely contain and guide smoke away from an affected area. Smokeguard products are made to order as they cannot be cut from stock sheets.


Features and benefits:

  • Single toughened monolithic 8 mm sheet.
  • Suspended from ceiling using concealed steel brackets.
  • Does not need to be installed in a profile.
  • Used to guide smoke and hot gases away from an affected area.
  • 30 or 60 minute approved.
Color
Clear
Clear
Material
Glass
Glass
Shape
Other
Other
Size
-
-
Length
Bespoke
Bespoke
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke
SKU Code
DH
DH

Specification

Third-party certification
CE UKCA ISO 9001 Classified for performance by Efectis, France.
CE UKCA ISO 9001 Classified for performance by Efectis, France.
Composition
Soda lime silicate.
Soda lime silicate.
Thickness
8 mm.
8 mm.
Body colour
Clear.
Clear.
Performance requirements
-
-
Fire performance
30 minutes.
60 minutes.
Light
Transmittance (minimum) 0.87.
Transmittance (minimum) 0.87.
Impact resistance
To BS EN 12600, 1C1.
To BS EN 12600, 1C1.

Additional properties

Weight
20 kg/m².
20 kg/m².
TemperatureRange
+/-100°C.
+/-100°C.
Standard
To EN 572, EN 12101-1, and EN 12150-2.
To EN 572, EN 12101-1, and EN 12150-2.
Size and profile
-
-
Glass type
Monolithic glass.
Monolithic glass.

Sustainability data

Country of material origin
United Kingdom
United Kingdom
Country of product manufacture
United Kingdom
United Kingdom
