MULTI-FLASH INSULATED PIPE FLASHING - SPUN
Verified by manufacturer 6 months ago
Certificate of Approval cdfa
Certificate type

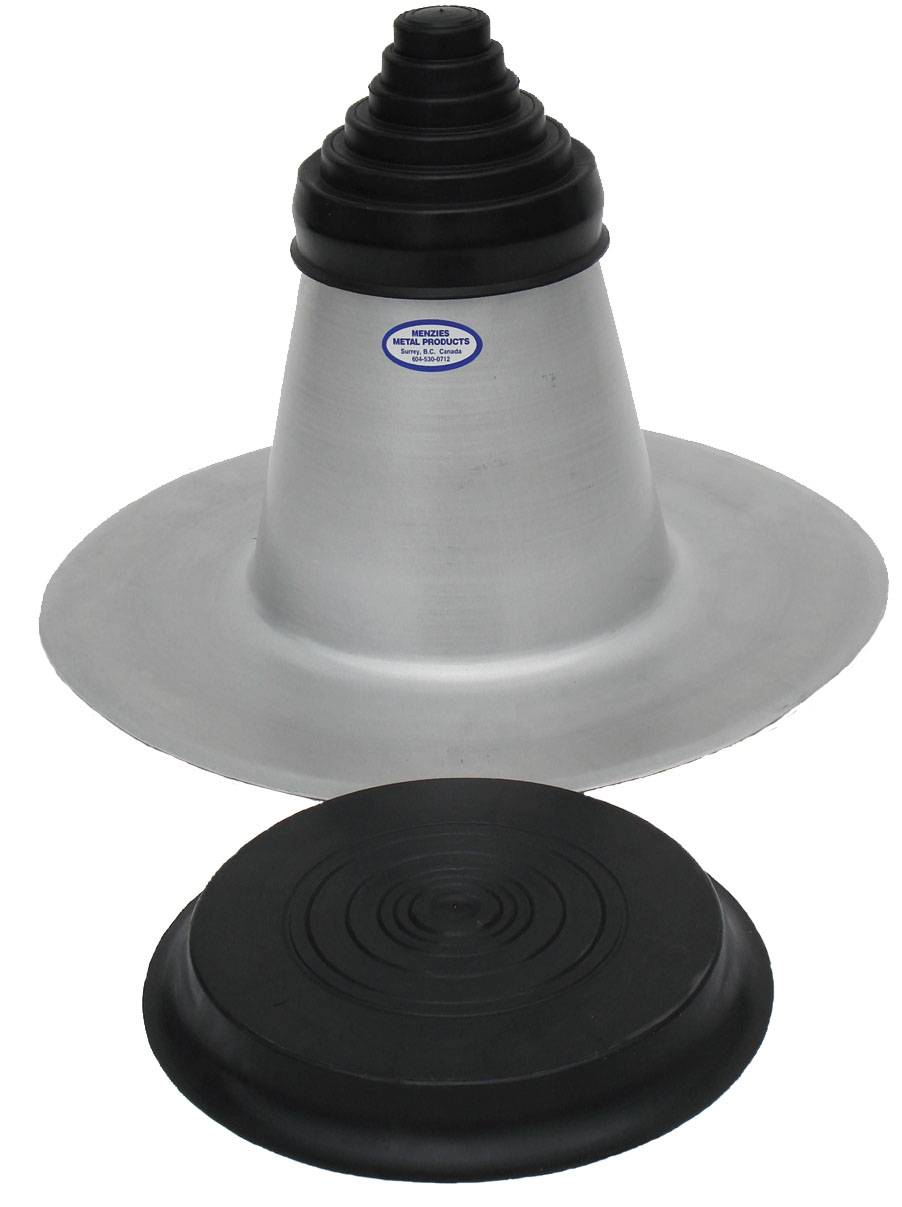

Menzies 5 Skin Vent Flashing for flat roof application consisting of base with flange, water seal cap and bottom plastic pipe moisture seal.
Application
Adjustable, insulated, spun aluminum pipe flashing
Description
- For flat roof.
- 8″ (203mm) water height. 4″ (102mm) roof flange.
- One piece seamless aluminum.
- Fits common plumbing pipe sizes 1 1/4″ (32mm), 1 1/2″ (38mm), 2″ (51mm), 3″ (76mm) and 4″ (102mm). One flashing fits all, no stocking multiple sizes.
- Reduces estimation time.
- Moisture seals at the top and bottom create a dead air space, which becomes the insulator to prevent condensation.
- Top and bottom seal have tear-out plugs to fit pipe size required.
- Reduces installation time. Simple install.
- Listed to meet Canadian and U.S. standards by QAI. Meets CSA B272 and IAPMO PS 64.
- Also available in TPO Direct Weld™.
- 10 Year Warranty
General information
Material | Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Sustainability data
Material | Aluminium |
Product certifications
Certificate of Approval cdfa
CSA B272 PREFABRICATED SELF-SEALING ROOF VENT FLASHING / IAPMO PS 64 ROOF PIPE FLASHING
Literature
Literature type
MATERIALS SAFETY DATA SHEET CU/AL

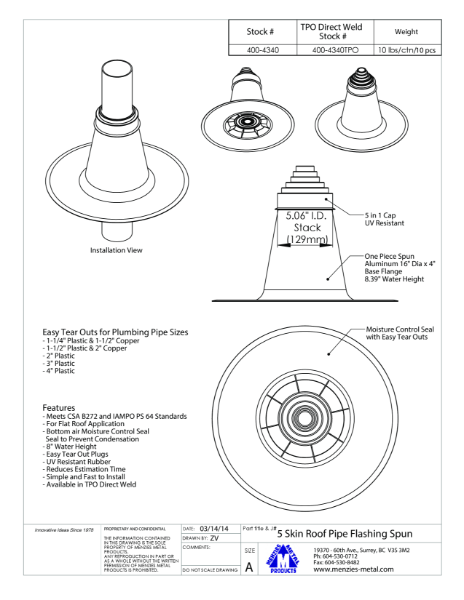

TECHNICAL DRAWING - MULTI-FLASH INSULATED PIPE FLASHING

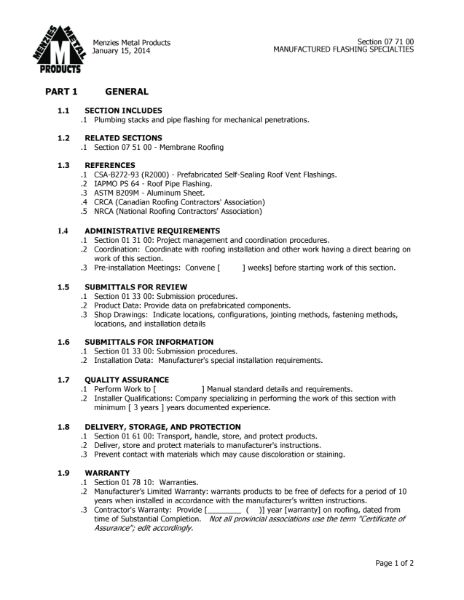

PRODUCT SPECIFICATION - MULTI-FLASH
