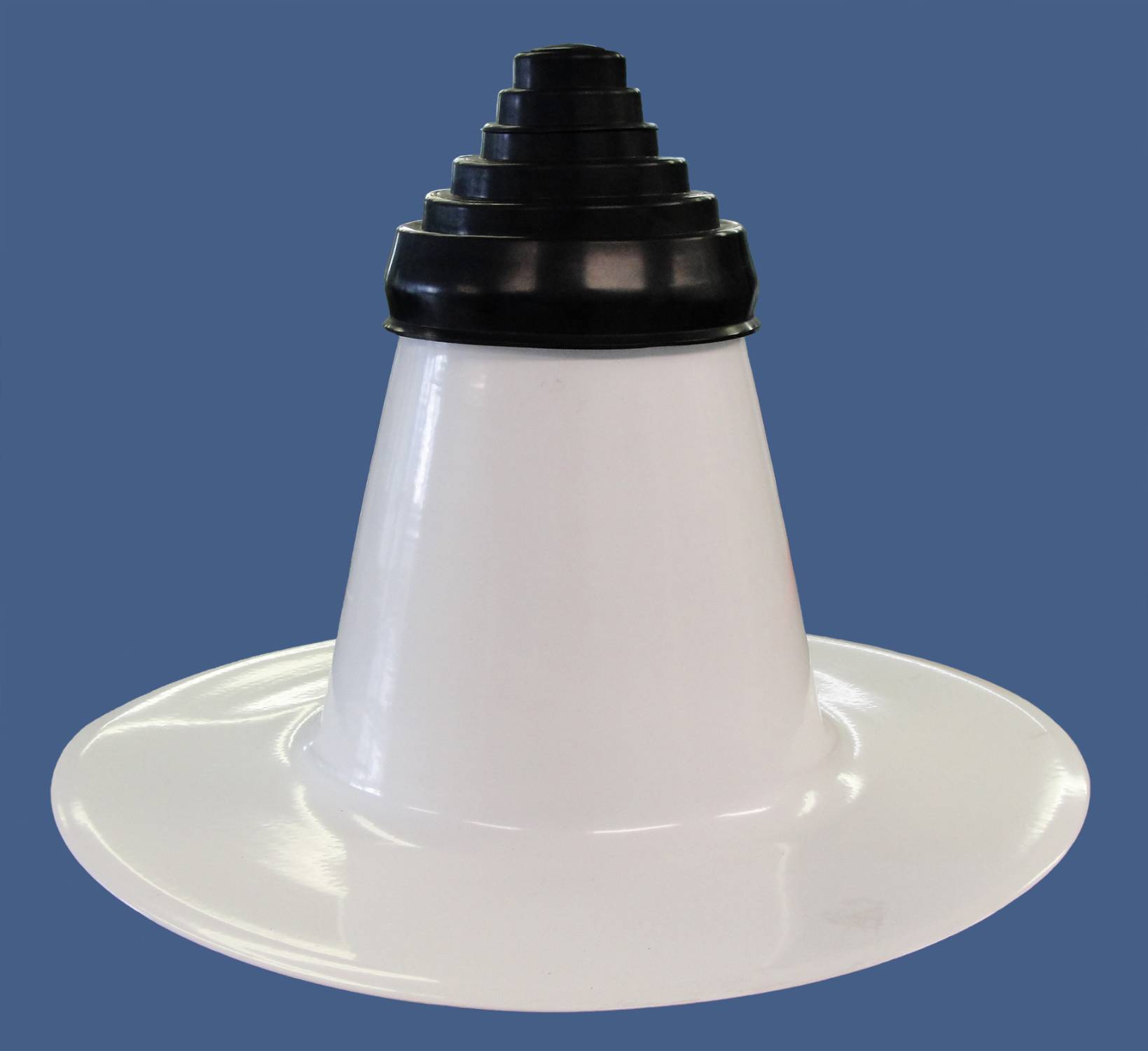

Multi-Flash Insulated Pipe Flashing Spun - TPO
Verified by manufacturer 24 days ago
Certificate of Approval
Certificate type
Menzies Multi-Flash Vent Flashing TPO for flat roof application consisting of base with flange TPO coated, water seal cap and bottom plastic pipe moisture seal. Manufactured by Menzies Metal Products
Description
- TPO coated.
- For flat roof.
- 8″ 203mm) water height. 4″ (102mm) roof flange.
- One piece seamless aluminum.
- Fits common plumbing pipe sizes 1 1/4″ (32mm), 1 1/2″ (38mm), 2″ (51mm), 3″ (76mm) and 4″ (102mm). One flashing fits all, no stocking multiple sizes.
- Reduces estimation time.
- Moisture seals at the top and bottom create a dead air space, which becomes the insulator to prevent condensation.
- Top and bottom seal have tear-out plugs to fit pipe size required.
- Reduces installation time. Simple install.
- Listed to meet Canadian and U.S. standards by QAI. Meets CSA B272 and IAPMO PS 64.
- Menzies TPO Direct Weld™ for fast installation on TPO Roofing Systems.
- 10 Year Warranty
General information
Material | Thermoplastic polyolefin (TPO) |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
CMS | 22 00 00 Plumbing Primary |
Sustainability data
Material | Thermoplastic polyolefin (TPO) |
Third party certifications
Certificate of Approval
CSA B272 PREFABRICATED SELF-SEALING ROOF VENT FLASHING / IAPMO PS 64 ROOF PIPE FLASHING
Literature
MATERIALS SAFETY DATA SHEET CU/AL
TECHNICAL DRAWING - Multi-Flash Insulated Pipe Flashing Spun TPO
INSTALLATION INSTRUCTIONS - Multi-Flash Insulated Pipe Flashing Spun TPO
