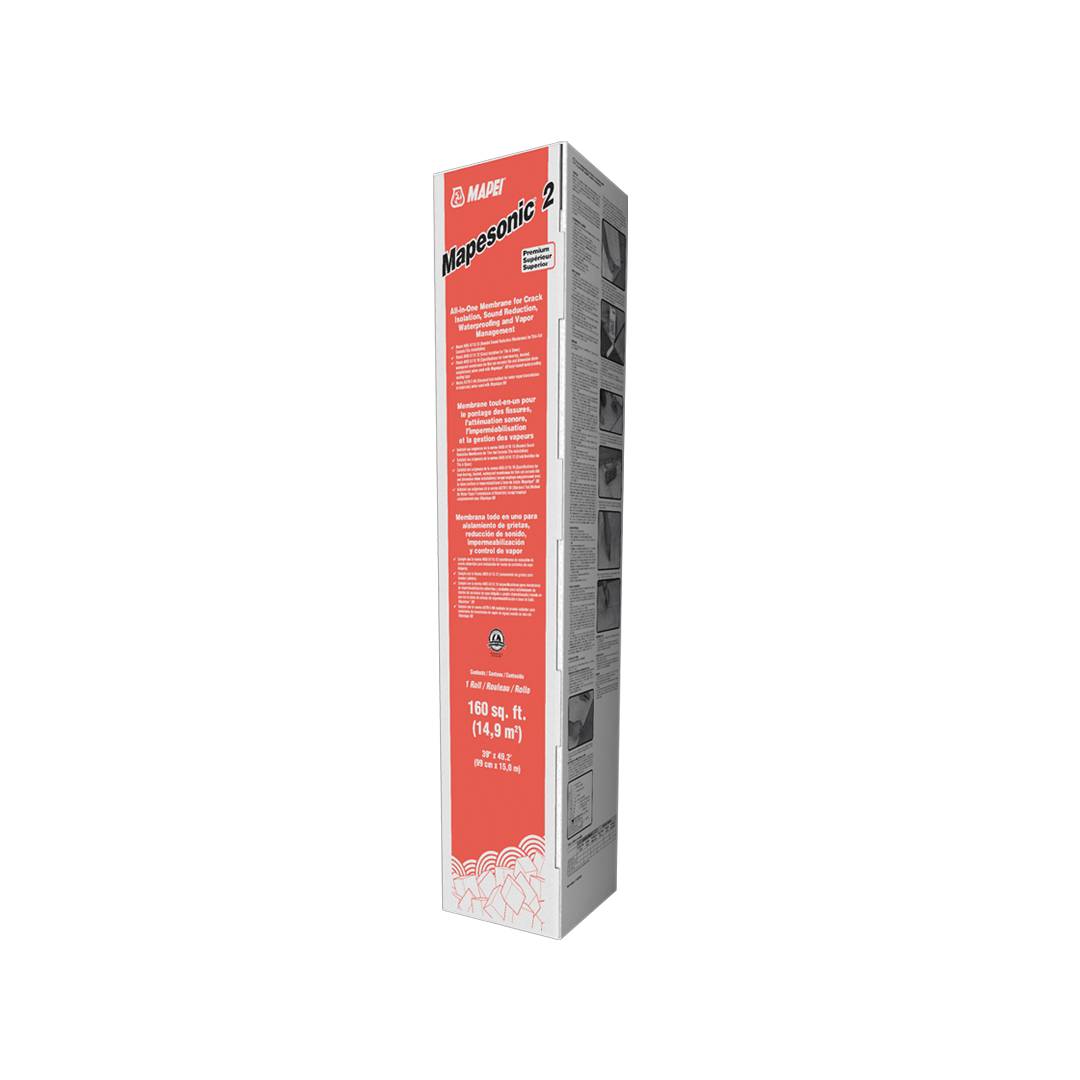

Mapesonic 2 - Sound Reduction Membrane

Verified by manufacturer 8 months ago

Mapei Inc. Third party certifications:
  • SCS Indoor Advantage™ Gold

    SCS Indoor Advantage™ Gold

    Certificate type

All-in-One Membrane for Crack Isolation, Sound Reduction, Waterproofing and Vapor Management

Jump to:
800 361 9309 Website

Application

▪ For leveling, smoothing and repairing of interior, residential and commercial floors before the installation of floor coverings

▪ For use over radiant-heated floors or to encapsulate hydronic or electric radiant-heated floors

Description

Mapesonic 2 is a patented, next-generation, flexible, 76-mil thin, lightweight, load-bearing, fabric-reinforced, “peel-and-stick” membrane for sound reduction, crack isolation, waterproofing and vapor management. Application of Mapesonic 2 can be immediately followed by installation of finished flooring. Mapesonic 2 reduces transmission of impact sound (such as footsteps and dropped objects) and airborne sound (such as voice and TV) through floors when installed under ceramic tile, stone, vinyl and wood floorings. It also helps to prevent existing or future in-plane floor cracks (with movement up to 3/8" or 10 mm wide) from transmitting through grout, ceramic tile and natural-stone assemblies.


• ASTM C627 (Robinson): See the “Product Performance Properties” chart below.

• ASTM E492-04 (Impact Sound), E90-04 (Airborne Sound) and E2179 (Impact Sound): See the “Product Performance Properties” chart below.

• ANSI A118.13 (Bonded Sound Reduction Membranes for Thin-Set Ceramic Tile Installation): Mapesonic 2 exceeds the standards for bonded sound reduction membranes. See the “Product Performance Properties” chart below.

• ANSI A118.12 (Crack Isolation for Tile & Stone): Mapesonic 2 exceeds the high-performance standards for crack isolation. See the “Product Performance Properties” chart below.

• ANSI A118.10 (Specifications for load-bearing, bonded, waterproof membranes for thin-set ceramic tile and dimension stone installations), when used with Mapetape ™ BB butyl-based waterproofing sealing tape: See the “Product Performance Properties” chart below.

• ASTM E-96 (Standard test method for water vapor transmission of materials) when used with Mapetape BB: See the “Product Performance Properties” chart below.

General information

CMS

09 30 00 TilingPrimary

Product range

Membranes

Third party certifications

SCS Indoor Advantage™ Gold

SCS Indoor Advantage™ Gold

Indoor Advantage™ Gold SCS-IAQ-06775

Literature

Mapesonic 2

Mapesonic 2

Tile & Stone Installation Systems

Tile & Stone Installation Systems
