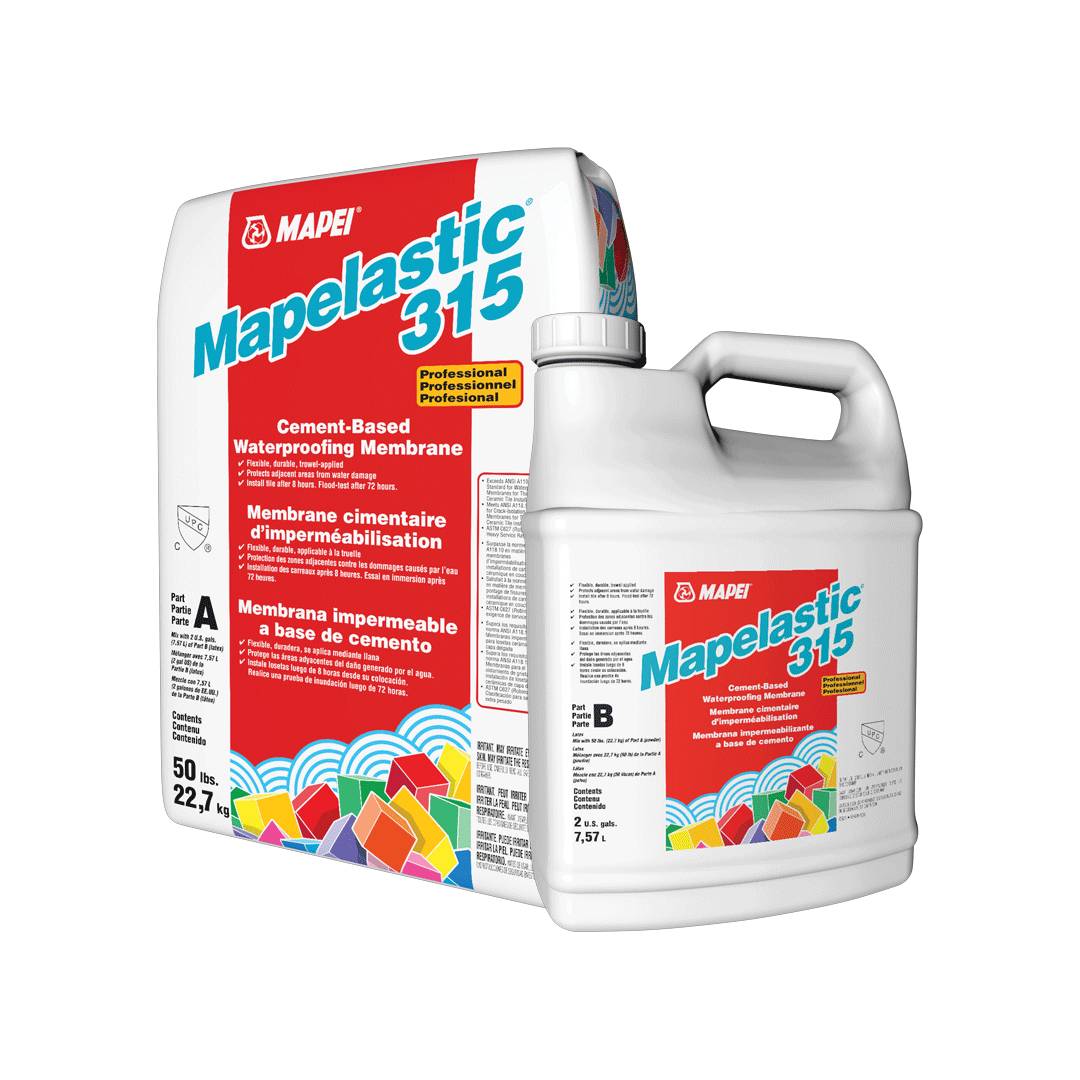

Mapelastic™ 315 - Cementitious Waterproofing Membrane
Verified by manufacturer 10 months ago
SCS Indoor Advantage™ Gold
Certificate type
Professional, Cement-Based Waterproofing Membrane
Application
• Interior/exterior floors, walls, countertops and ceilings of residential (homes, apartments, condominiums), commercial (airports, malls, office buildings, restaurants, fountains, pools) and industrial (dairies, breweries, food-processing plants)
• Bathrooms (tub surrounds, showers, shower pans) as well as kitchens and laundries (floors, walls, ceilings, countertops) • Ideal for multi-family or multi-story buildings where high-quality waterproofing is imperative to prevent water damage in rooms adjacent or below
• Excellent for submerged applications such as swimming pools, spas, fountains, water features and steam rooms (when used in conjunction with a vapor barrier; see SR613-07 and SR614-07 in TCNA handbook, or TTMAC 321SR) when completely covered with ceramic tile or stone
• Balconies, decks and terraces over unoccupied space
• Interior/exterior building facades
Description
Mapelastic 315 is a trowel-applied, flexible, fiber-mesh-reinforced waterproofing and crack-isolation membrane for installation under ceramic tile or stone on indoor/ outdoor residential, commercial and industrial intermittent wet or submerged applications. Mapelastic 315 provides an excellent barrier to prevent water from migrating into other areas. Mapelastic 315 is compatible with any polymermodified cement-based mortar (ANSI A118.4 or better) or epoxy mortar (ANSI A118.3). Mapelastic 315 exceeds ANSI A118.10 requirements for waterproofing and is IAPMO-listed for use as a shower-pan liner
• ASTM C627 (Robinson): Extra Heavy Service Rating
• ANSI A118.10 (Waterproofing Membranes For Thin-Set Ceramic Tile
Installations): Exceeds; see “Product Performance Properties” section
• ANSI A118.12 Standard (Crack Isolation Membranes For Thin-Set Ceramic
Tile Installations): Meets Standard Performance (1/16" [1,5 mm])
General information
Specification data - Tiling
Third party certifications
SCS Indoor Advantage™ Gold
Indoor Advantage™ Gold SCS-IAQ-06041
Literature
Tile & Stone Installation Systems
Watertight Protection
Mapelastic™ 315
Case studies
vivaNext mass-transit terminal construction - Toronto, ON.
