Mapeguard® WP200 Membrane - Flexible Polyethylene Sheet Membrane
Verified by manufacturer 9 months ago
SCS Indoor Advantage™ Gold
Certificate type
Waterproofing Sheet Membrane for Ceramic Tile and Stone
Application
• Interior/exterior residential (homes, apartments and condominiums) and
commercial (office buildings, restaurants, galleries and malls) floors and walls
• Tubs, showers, bathrooms, kitchens, laundry rooms, food courts, lobbies,
foyers and wet areas
• For steam rooms in residential and commercial environments
• Use for renovating older floors to address existing in-plane cracks in the
subfloor.
• Use to isolate stresses beneath the flooring that are associated with expansion
and contraction of substrate materials.
• Use to protect lateral stresses in industry-approved plywood floors from
transferring to the finished tile floor.
• Offers an installation solution when the construction timeline requires
installing tile over green or young concrete slabs before the full 28-day cure
Description

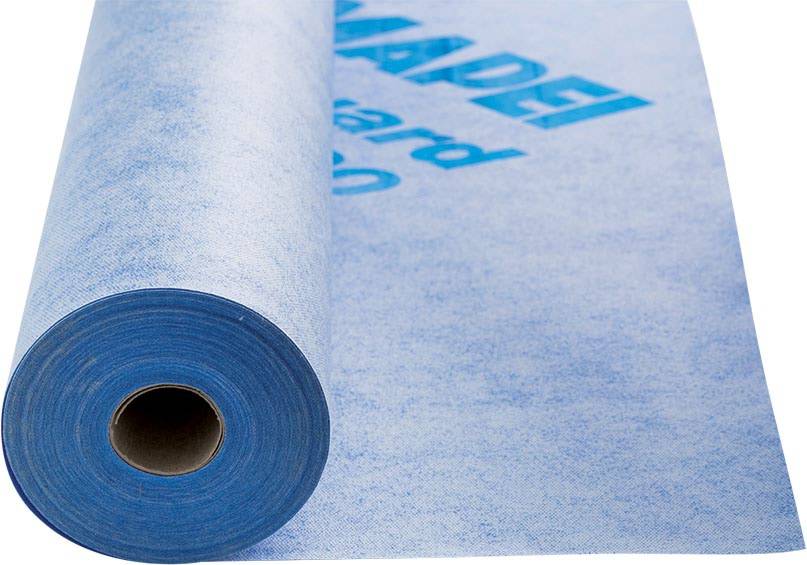

Mapeguard WP 200 is a thin, flexible polyethylene sheet membrane with a nonwoven, polypropylene fabric on both sides, used for both waterproofing and crack isolation in interior/exterior residential and commercial applications. The laminated fabric webbing is designed to anchor the membrane to the substrate and tiles to the membrane using the bonded thin-set method with recommended, polymer-modified mortars. Mapeguard WP 200 ’s low perm rating performance is ideal for vapor protection in showers, wet areas and steam rooms.
• ANSI: Exceeds A118.10 standard (Waterproofing Membranes for Thin-Set Ceramic Tile) Waterproofing Sheet
Membrane for Ceramic Tile and Stone Mapeguard ® WP 200 Mapeguard ® WP 200
• ANSI: Exceeds A118.12 standard (Crack-Isolation Membranes for ThinSet Ceramic Tile)
• ASTM: C627 (Robinson) service rating of “Extra Heavy”
• ASTM: E96, Method E, meeting requirements of < 0.5 perms
• ICC Evaluation Service Report ESR 3474
• IAPMO-listed for shower pan liners
• IAPMO File #3996
General information
Specification data - Tiling
Third party certifications
SCS Indoor Advantage™ Gold
Indoor Advantage™ Gold SCS-IAQ-06774
Literature
Watertight Protection
Tile & Stone Installation Systems
Mapeguard® WP200 Membrane
