ELECTRICAL ROOF FLASHING

Verified by manufacturer 2 months ago

Menzies Metal Product certifications:
  • Certificate of Approval cdfa

    Certificate of Approval cdfa

    Certificate type

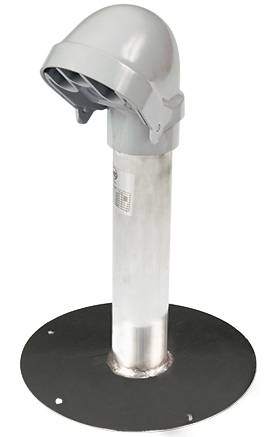

Menzies Electrical Roof Stack & Cap for flat roof application. Manufactured by Menzies Metal Products (www.menzies-metal.com, 1-800-665-8840).

Jump to:
1-800-665-8840 Website

Application

Electrical Roof Flashing

Description

  • Professional solution for electric cable roof install.
  • Available in 2″ (51mm) or 3″ (76mm) sizes for electrical conduits.
  • Available pitched for steep roof (note: must specify pitch).
  • Ideal for electrical and solar applications.
  • 2″ size uses 1 1/2″ (38mm) plumbing stack.
  • 3″ size uses 3 1/2″ (88mm) special pipe.
  • Massive weatherhead on 3″ size for multiple usage.
  • 4″ (102mm) roof flange- heavy duty aluminum for securing to roof deck.
  • Welded flange.
  • Listed to meet Canadian and U.S. standards. Roof flashing QAI listed, Weatherhead UL listed.
  • Roof flashing meets CSA B272 and IAPMO PS 64. Weatherhead meets UL 514B.
  • Also available in Menzies TPO Direct Weld™.
  • 10-Year Warranty


General information

Material

Aluminium

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

BIM objects

Platform Compatible Version
Revit
-

1

IFC
-

1

3Ds Max
-

1

DWG
-

1

SketchUp
-

1

OBJ
-

1

Product certifications

Certificate of Approval cdfa

Certificate of Approval cdfa

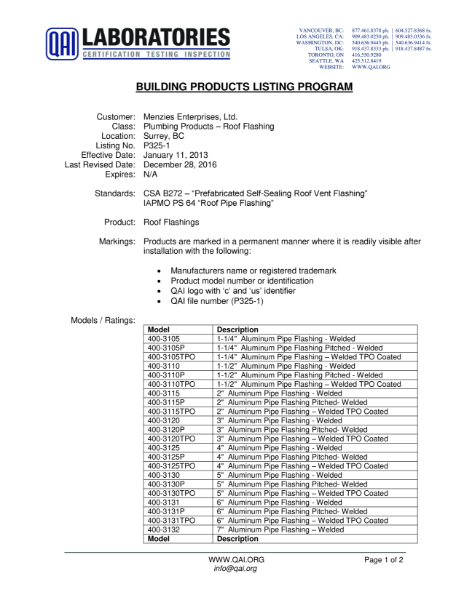

CSA B272 PREFABRICATED SELF-SEALING ROOF VENT FLASHING / IAPMO PS 64 ROOF PIPE FLASHING

Literature

MATERIALS SAFETY DATA SHEET CU/AL

MATERIALS SAFETY DATA SHEET CU/AL

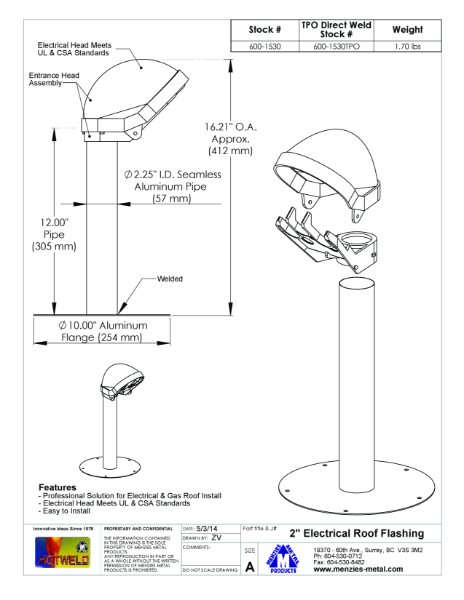

TECHNICAL DRAWING - 2" ELECTRICAL ROOF FLASHING

TECHNICAL DRAWING - 2" ELECTRICAL ROOF FLASHING

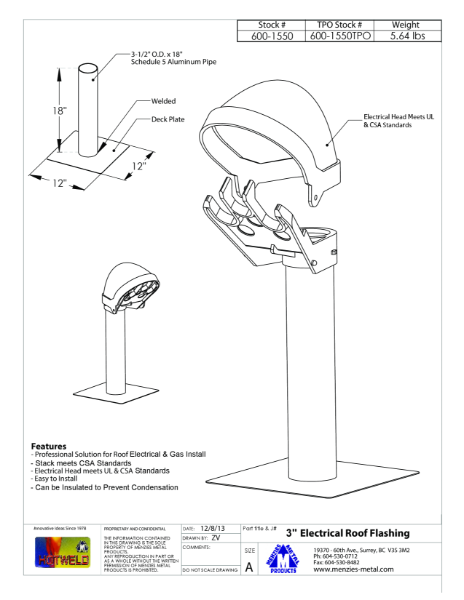

TECHNICAL DRAWING - 3" ELECTRICAL ROOF FLASHING

TECHNICAL DRAWING - 3" ELECTRICAL ROOF FLASHING
