ELECTRICAL ROOF FLASHING - TPO

Verified by manufacturer 6 months ago

Menzies Metal

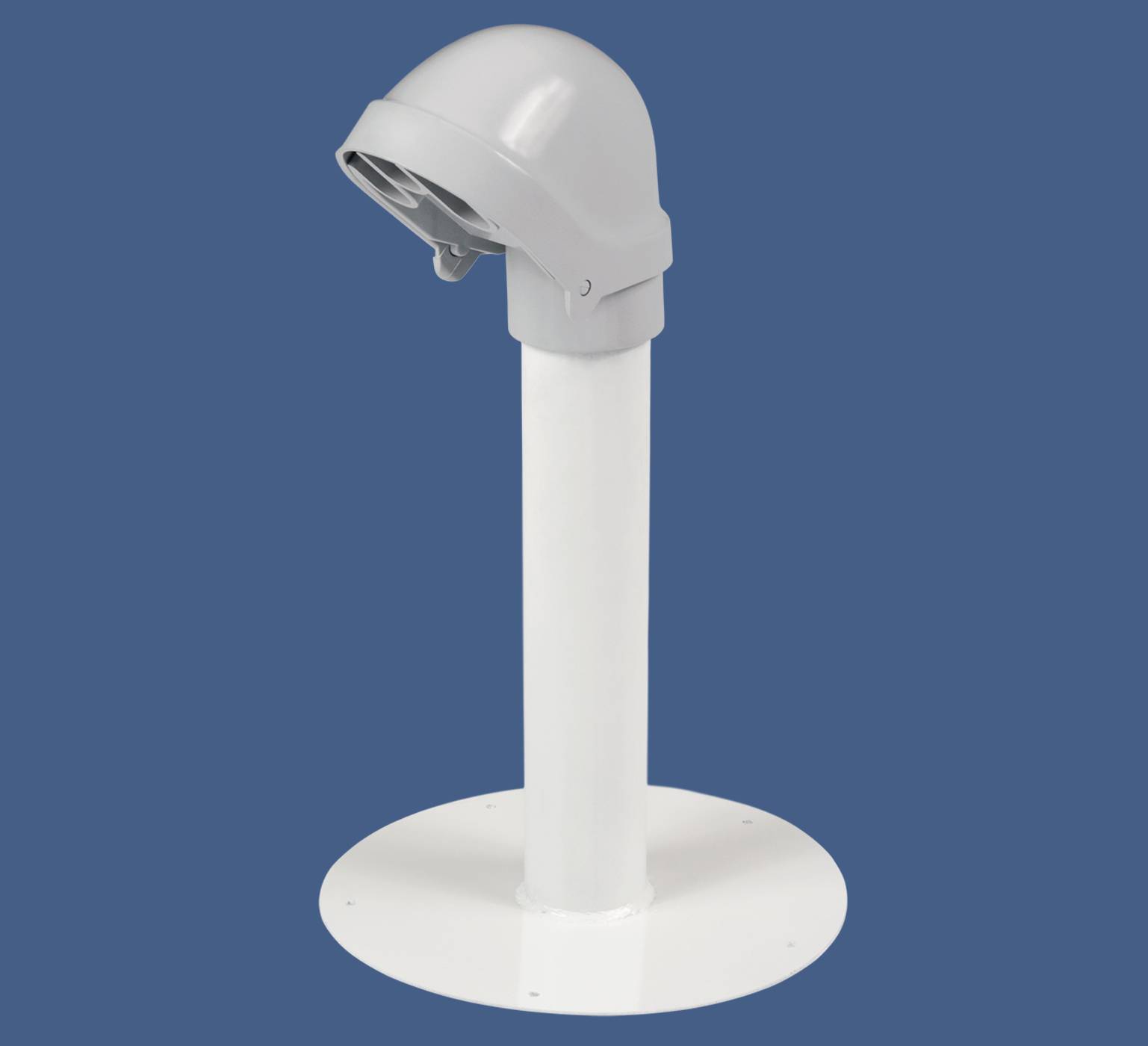

Menzies Electrical Roof Stack & Cap with TPO Direct WeldTM for flat roof application. Manufactured by Menzies Metal Products (www.menzies-metal.com, 1-800-665-8840).

Jump to:
1-800-665-8840 Website

Application

Electrical Roof Flashing

Description

  • TPO coated flange.
  • Professional solution for electric cable roof install.
  • Available in 2″ (51mm) or 3″ (76mm) sizes for electrical conduits.
  • Ideal for solar application.
  • 2″ size uses 1 1/2″ (38mm) plumbing stack.
  • 3″ size uses 3 1/2″ (88mm) special pipe.
  • Massive head on 3″ size for multiple usage.
  • 4″ (102mm) roof flange- heavy duty aluminum for securing to roof deck.
  • Welded flange.
  • Listed to meet Canadian and U.S. standards. Stack and base QAI listed, cap UL listed.
  • Flashing base and stack meet CSA B272 and IAPMO PS 64. Cap meets UL 514B.
  • Menzies TPO Direct Weld™ for fast installation on TPO Roofing Systems.
  • Ten-Year Warranty



General information

Material

Thermoplastic polyolefin (TPO)

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

BIM objects

Platform Compatible Version
Revit
-

1

IFC
-

1

3Ds Max
-

1

DWG
-

1

SketchUp
-

1

OBJ
-

1

Literature

MATERIAL DATA AND SAFETY SHEET - TPO

MATERIAL DATA AND SAFETY SHEET - TPO

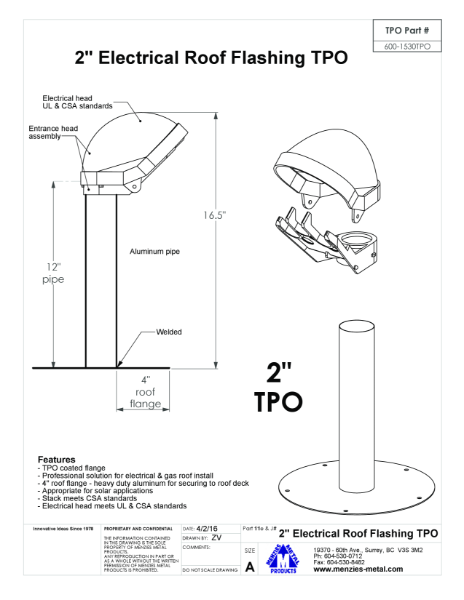

TECHNICAL DRAWING - ELECTRICAL ROOF FLASHING TPO

TECHNICAL DRAWING - ELECTRICAL ROOF FLASHING TPO
