ecoLAM™ Laminated Glass Units
Verified by manufacturer 8 days ago
ecoLAM™ Laminated Glass Units for use in safety-critical applications including balustrades, balconies, atriums, entrances, overhead glazing, floor glazing, barriers, and other applications.
Application
ecoLAM™ Laminated Glass Units are specifically engineered for demanding architectural applications where safety, security, and performance are paramount:
Building Envelopes:
- Curtain wall systems requiring impact-resistant glazing
- Storefront applications in high-traffic areas
- Window systems in educational and healthcare facilities
- Entrance doors and sidelights for commercial buildings
Safety-Critical Applications:
- Balustrades and handrails per CSA A500-16 requirements
- Balcony glazing in residential and commercial buildings
- Atrium glazing and overhead applications
- Floor glazing systems for architectural features
Security Applications:
- Security barriers and protective glazing
- Detention facility glazing systems
- Government and institutional buildings
- Jewelry stores and high-security retail environments
Specialized Installations:
- Sports facilities and recreational centers
- Airport terminals and transportation hubs
- Shopping centers and public gathering spaces
- Hotels and hospitality venues
Integration Capabilities:
- Compatible with VIVIDVIEW metallic mesh systems for enhanced privacy and solar control
- Suitable for triple-glazed configurations with low-E coatings
- Adaptable to custom architectural requirements
- Integration with automated building systems
Climate Considerations:
- Engineered for Canadian climate extremes (-40°C to +60°C)
- Suitable for coastal environments with salt exposure
- Thermal shock resistance for temperature cycling
- UV stability for long-term performance
Regulatory Compliance:
- Meets National Building Code of Canada requirements
- Compliant with provincial building codes
- Suitable for LEED and energy-efficient building designs
- Supports accessibility and barrier-free design requirements
Description

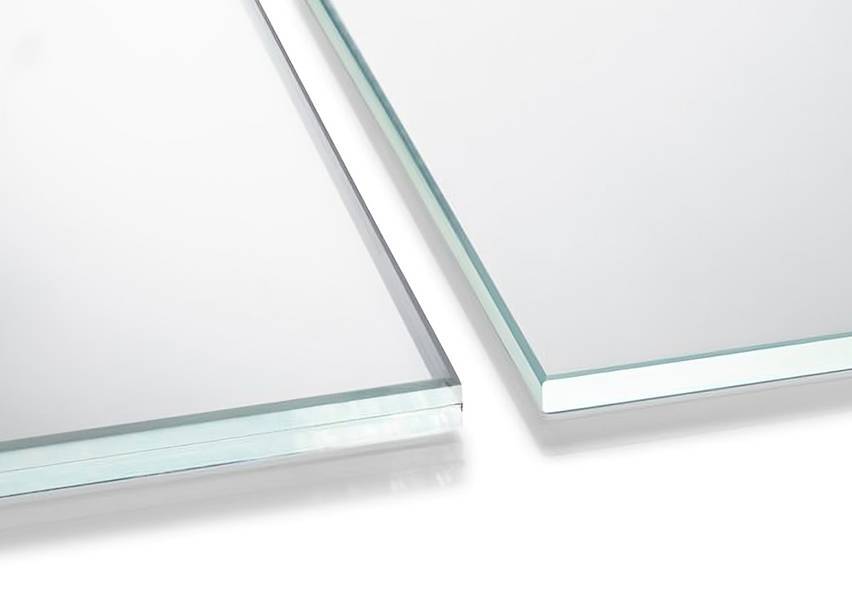

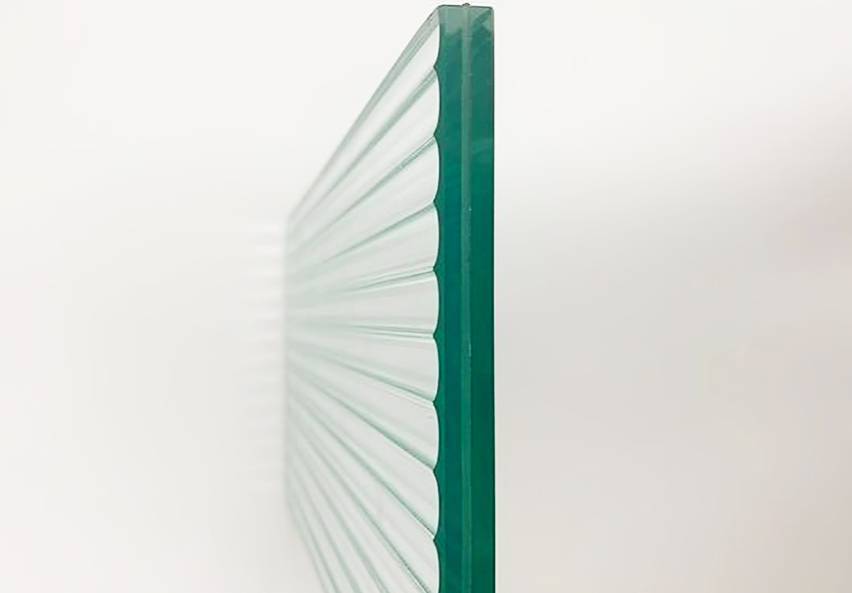

ecoLAM™ Laminated Glass Units are engineered safety glazing products designed for high-performance architectural applications requiring superior impact resistance and post-breakage safety characteristics. Each unit consists of two 6mm heat-strengthened soda lime silicate glass panes bonded with a 1.52mm structural interlayer, creating a robust 13.52mm composite glazing system.
Technical Composition:
- Glass Substrates: Premium heat-strengthened glass conforming to CSA standards
- Interlayer Options: High-adhesion PVB (Polyvinyl Butyral) or advanced ionomer interlayers
- Surface Quality: Architectural grade with minimal optical distortion
- Edge Treatment: Precision polished edges standard
Manufacturing Excellence:
- ISO 9001 certified production facilities
- IGCC certified quality management systems
- Factory production control ensuring consistent performance
- Advanced lamination processes for optimal bond strength
Performance Characteristics:
- Impact resistance meeting CAN/CGSB 12.1-2017 Class A/B requirements
- Thermal performance suitable for Canadian climate extremes
- Structural load resistance per ASTM E1300 calculations
- Superior fragment retention for enhanced safety
Quality Assurance:
- Comprehensive testing protocols for safety compliance
- Dimensional tolerances of ±1.5mm length/width, ±0.2mm thickness
- Permanent product identification and certification marking
- Rigorous quality control throughout manufacturing process
Available in multiple substrate options including clear, mid-iron, and low-iron glass grades to meet specific project requirements for light transmission and aesthetic preferences.
