CLAMP-TITE COPPER BOX SCUPPER
Verified by manufacturer 4 months ago
Certificate of Approval
Certificate type
Menzies Clamp-Tite™ Copper Box Scupper Drain
Application
ROOF DRAIN
Description

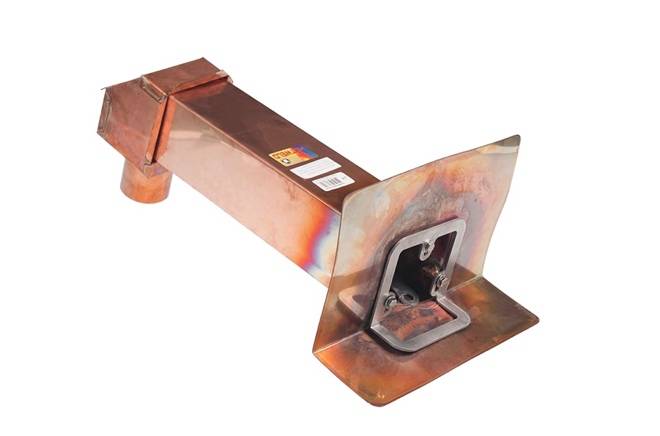

Menzies Clamp-Tite™ Copper Box Scupper Drain, two piece system. Use for overflow applications in parapets or sidewalls. Manufactured by Menzies Metal Products (www.menzies-metal.com, 1-800-665-8840).
- Clamping collar to secure membrane to flange.
- Full 4″ (102mm) flange HOTWELDED, 4″ x 4″ x 17″ (102mm x 102mm x 432mm) outlet box with an overflow and cleanout box.
- Outlet box can be trimmed to wall thickness.
- Longer outlet boxes available.
- 3″ )76mm) insert size pipe in the overflow and cleanout box.
- No need to cut an oversized hole to pass the scupper through the wall.
- The all-in-one overflow and clean out box will be attached to the outlet box on the exterior of the finished wall.
- Stainless steel fasteners.
- Listed to meet Canadian and U.S. standards by QAI. Meets CSA B79 and ASME A112.6.4.
- Also available in TPO Direct Weld™
- STRAINER KIT AVAILABLE: link https://www.menzies-metal.com/strainer-kit-clamp-tite-box-scupper
- 10-Year Warranty
General information
Color | Copper |
Finish | Copper |
Material | Copper |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
CMS |
Sustainability data
Material | Copper |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
 3Ds Max | - | 1 |
 DWG | - | 1 |
 SketchUp | - | 1 |
 OBJ | - | 1 |
Third party certifications

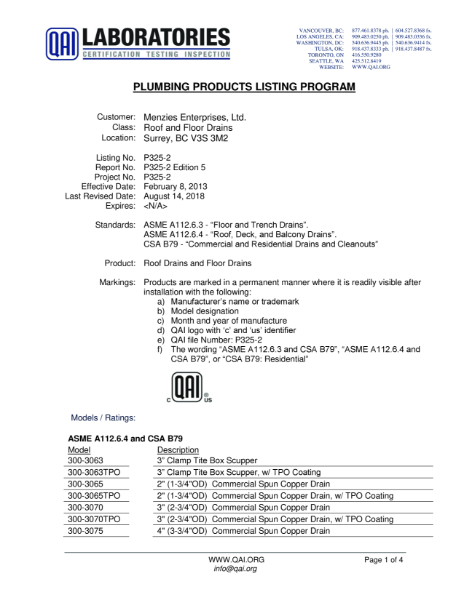

Certificate of Approval
CSA B79 COMMERCIAL AND RESIDENTIAL DRAINS AND CLEANOUTS / ASME A112.6.3 FLOOR AND TRENCH DRAINS / ASME A112.6.4 ROOF, DECK AND BALCONY DRAINS.
Literature
MATERIALS SAFETY DATA SHEET CU/AL

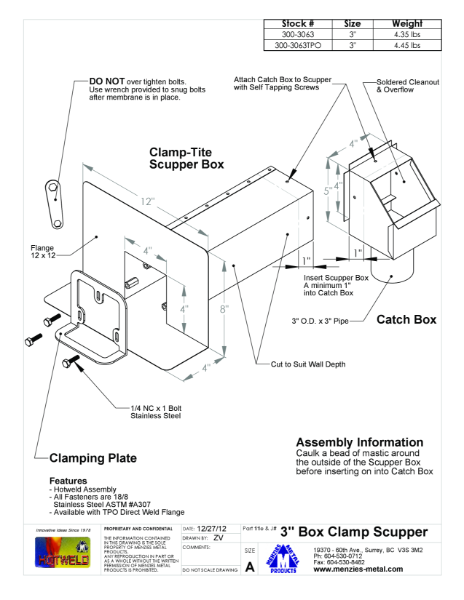

TECHNICAL DRAWING - CLAMP-TITE COPPER BOX SCUPPER

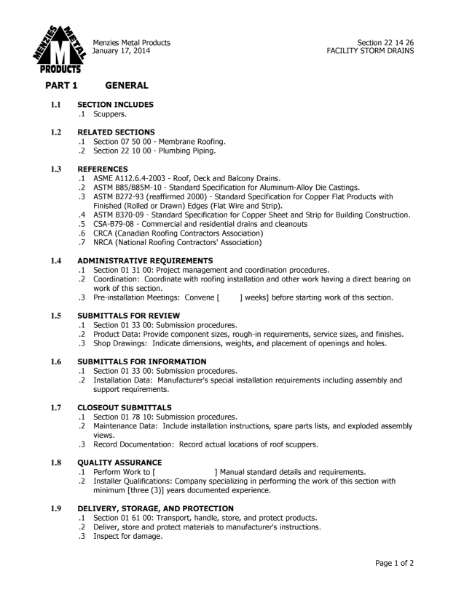

SPECIFICATIONS - CLAMP-TITE CU BOX SCUPPER
