Silicon Central

Scope of Work

Process and deliver double-glazed triangle-shaped units with a dotted frit ceramic design with 50% coverage providing shading to the internal areas. The mall's skylight required 6,000 individual units in multiple configurations with a total area of ….m2

Build Up

39.52 mm ecoTHERM (IGU) consisting of ecoSHIELD (T) 10 mm COOL-LITE SKN 144, 16 mm spacer, ecoSHIELD (T) 6 mm clear (Guardian), 1.52 mm clear PVB (Trosifol), ecoSHIELD (T) 6 mm clear (Guardian), U-insert (Silicon Dow Corning – 3362)

Triangle Glass – 29.52 mm ecoTHERM (IGU + LAMI) consisting of ecoSHIELD (T) 6 mm COOL-LITE SKN 144, 12 mm spacer, ecoSHIELD (T) 5 mm clear, 1.52 mm clear PVB (Trosifol), ecoSHIELD (T) 5 mm clear, U-insert (Silicon Dow Corning – C-3362)

Project Details

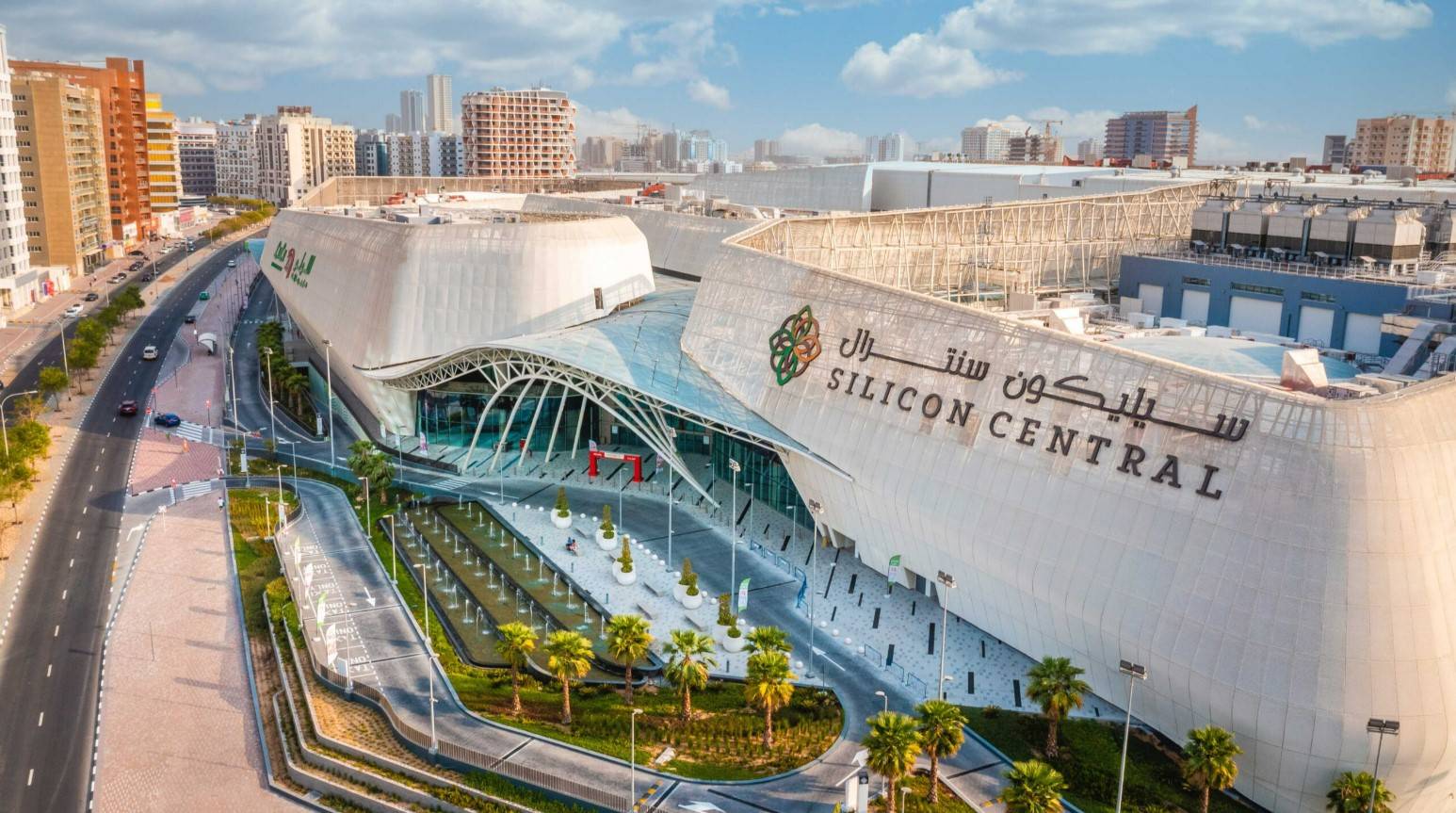

The Lulu Group, known predominantly for its hypermarkets spread across Dubai, decided to create a mall in the heart of the Silicon Oasis Smart City. Silicon Central was designed with sustainability at the forefront, populated by plants, water and natural light.

Given Dubai’s harsh summers, we had to ensure the skylight allowed light to pass while filtering heat and minimising glare to ensure shoppers had a comfortable experience. Only 50% of the skylight is transparent, while the rest is opaque. We achieved the shading effect by using dotted ceramic frit in the panels. The main atrium skylight comprised triangle-shaped panels, which complicated the processing due to sharp corners. To ensure the delivery of all 6,000 panels seamlessly, we set up a multi-glass management system to easily track and handle the different glass sizes and codes.

The skylight was installed successfully, and Silicon Central has become an integral part of the sustainable Silicon Oasis neighbourhood.
