X-pand Strip

Verified by manufacturer over a year ago

Armstrong Flooring

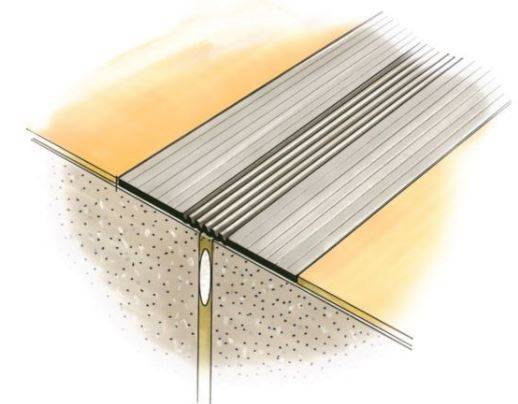

Australian made flexible cover strip for installation over expansion and control joints.

Jump to:
+61 1800 632 624 Website

Application

  • For installation over expansion and control joints.
  • May be heat welded to sheet vinyl.

Description

Flexible cover strip for installation over expansion and control joints. Use in conjunction with sheet and tile vinyl flooring.


  • Designed to colour co-ordinate with Armstrong resilient flooring ranges and current interior design trends.
  • Method test as per as required by BCA and NCC.
  • A finishing strip installed to provide protection of exposed edges of vinyl sheet and floor surfaces.
  • Available in standard formulation only (25 metre coils.)

General information

Material

Vinyl sheet.

Warranty description

15 years.

Uniclass

Pr_35_90_31_29 Floor cover stripsPrimary

SpeedSpec

09650 Resilient Flooring

SpecPack

09650 Resilient Flooring

NATSPEC National Classification System

0651 Resilient Finishes

Specification data - Floor cover strips

Profile

Extruded vinyl profiles.

Material

Vinyl sheet.

Colour

Standard Black.

Standard Dune.

Standard Flint.

Standard Grey.

Standard Latte.

Standard Midnight.

Manufacturer guidance

Other colours available depending on MOQ. Check with the manufacturer.

NominalThickness

2 mm.

3 mm.

Width

75 mm.

Fixing

Armstrong AC-100.

Guidance for specification option:

2-part acrylic contact system.

Armstrong SC-100.

Guidance for specification option:

Solvent contact adhesive.

Manufacturer guidance

Can be fixed using either of the following method:

Fire performance

To AS.ISO 9239.1, AS/NZS 3837 and AS 5637.1.

Guidance for specification option:

Criticial radiant flux at 9.8 kW/m².

Smoke development rat at 39% minutes.

Group 1 Classification.

Sustainability data

Contains Red List materials

Yes

Country of product manufacture

Australia

Literature

Feather edge_Flat skirting_X-pand_Data Sheet

Feather edge_Flat skirting_X-pand_Data Sheet
