Wave Blades
Verified by manufacturer over a year ago
Supafinish (Veneer and Coloured Laminates)
Supafinish (Veneer and Coloured Laminates)

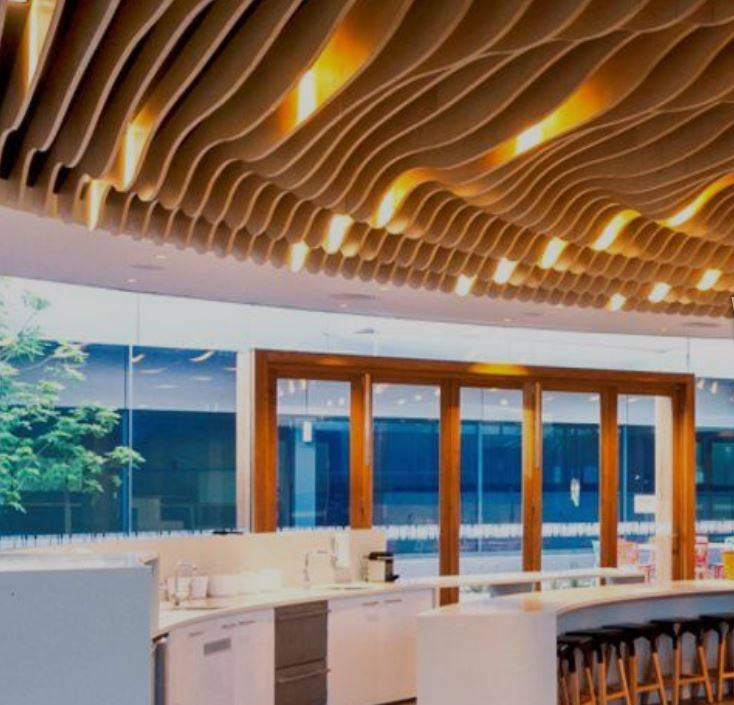

Ceiling system with curved features.
Application
Suitable for indoor applications in spaces such as retail shops, restaurants, cafes and bars, offices, commercial hubs and hotels.
Description
Wave Blades is a range of architectural lining systems with curved features that integrated acoustic and access panel options.
General information
Warranty description | Ten years. Manufacturer guidanceSystem as a whole is to have a minimum of ten-year warranty by the manufacturer. Proof of validity of manufacturer’s warranty is to be provided to the superintendent before practical completion. |
Uniclass | |
NATSPEC National Classification System | 0533 Suspended Ceilings - Ceiling Units 0531 Suspended Ceilings - Combined 0527 Room Dividers |
SpeedSpec | 09500 Suspended Ceilings 09260 Dry Wall Partitions and Linings |
SpecPack | 09500 Suspended Ceilings 09260 Dry Wall Partitions and Linings |
Specification data - Acoustic baffle-suspended ceiling systems
Ceiling support | Demountable suspended ceiling grids. |
Ceiling units | Sound attenuator infill units. |
System execution | Installation to be done by a Supawood-certified ceiling and partition contractor. |
Blade | 18 mm. Manufacturer guidanceRefers to blade thickness. Custom sizes available upon request. Contact manufacturer for details. |
OverallDepth | 140–290 mm. Guidance for specification option:
190–390 mm. Guidance for specification option:
290–590 mm. Guidance for specification option:
Manufacturer guidanceRefers to minimum and maximum blade depth combinations. Custom sizes available upon request. Contact manufacturer for details. |
Pattern options | Raindrop. Ripple. Wave. Zigzag. Twist. Manufacturer guidanceCustom patterns available upon request. Contact manufacturer for details. |
Applied finish | Supafinish. |
Colour and finish | Blackbutt SF. Euro Beech SF. Fusion Maple SF. Hoop Pine Classic SF. Hoop Pine Limed SF. |
Edge finish | Supafinish ply look edge. Supafinish ply edge. |
Fire performance | Group 1. Group 2. |
Backing | 1 mm Supabab acoustic backing. 7 mm Supabab acoustic backing. 12 mm Supabab acoustic backing. Manufacturer guidanceSupabab acoustic backing to be provided in sheets of 2400 x 1200 mm. |
Fixing | Black U-channel as supplied. |
Sustainability requirements | FSC or PEFC certified. Manufacturer guidanceDocumentary evidence in the form of an invoice with each line item annotated with the FSC or PEFC content and supplier's chain-of-custody number must be provided to the project superintendent for project completion. |
Sustainability data
Country of material origin | Australia |
Country of product manufacture | Australia |
