Waffle Blades
Verified by manufacturer over a year ago
Supafinish (Veneer and Coloured Laminates)
Supafinish (Veneer and Coloured Laminates)
Ceiling system with geometric effects.
Application
Suitable for indoor applications in spaces such as retail shops, restaurants, cafes and bars, offices, commercial hubs and hotels.
Description

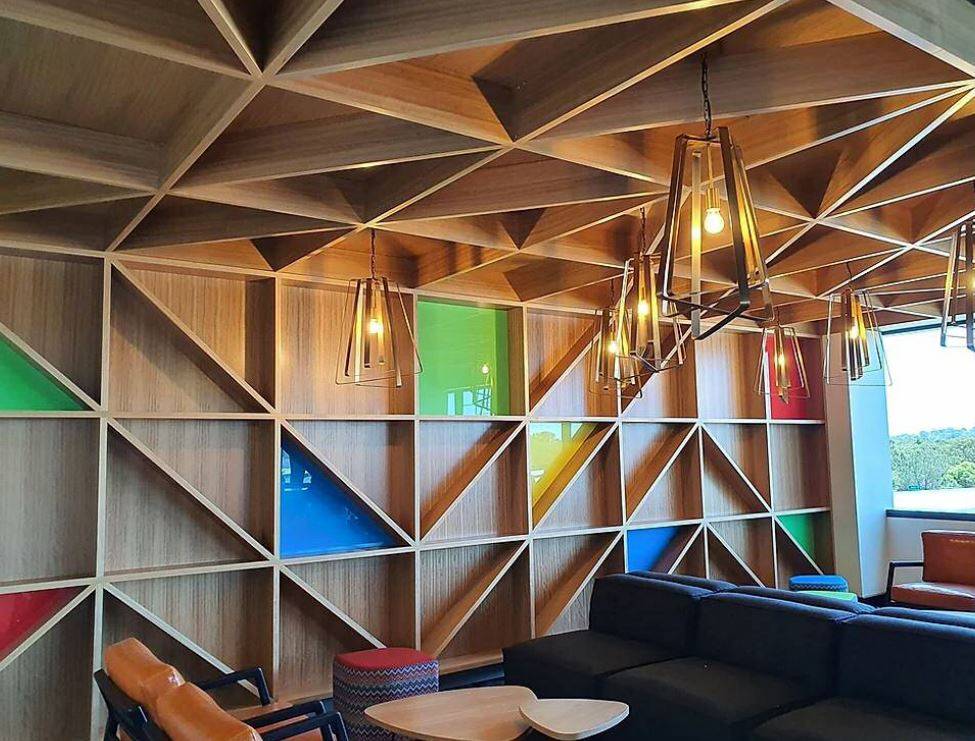

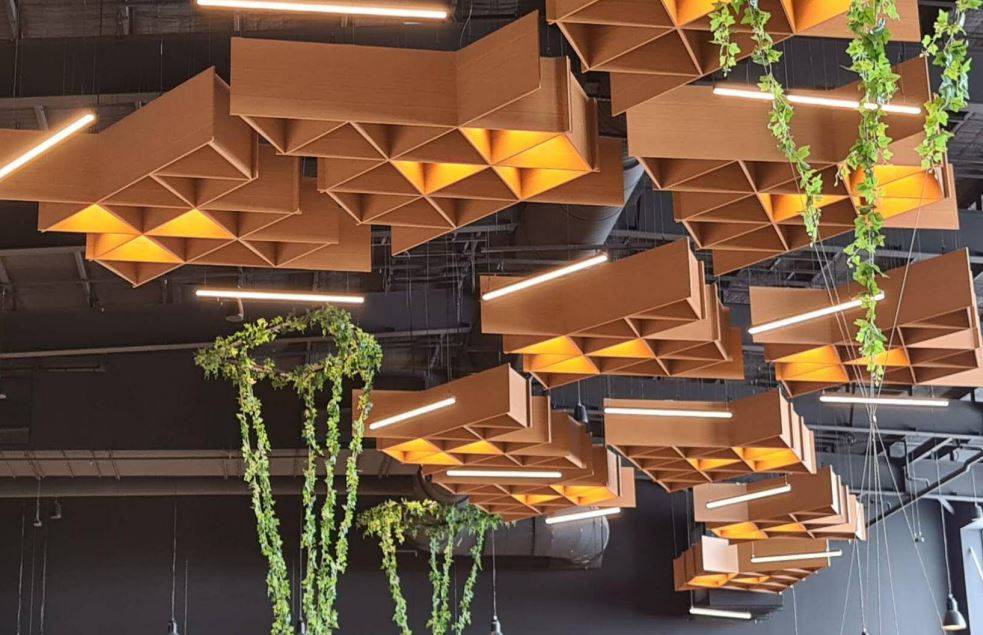

Waffle Blades is a range of architectural lining systems that allow the creation of geometric patterns such as crosses, saltires, boxes and even multi-point starbursts.
General information
Warranty description | Ten years. Manufacturer guidanceSystem as a whole is to have a minimum of ten-year warranty by the manufacturer. Proof of validity of manufacturer’s warranty is to be provided to the superintendent before practical completion. |
Uniclass | |
SpeedSpec | 09500 Suspended Ceilings |
NATSPEC National Classification System | 0533 Suspended Ceilings - Ceiling Units 0531 Suspended Ceilings - Combined |
SpecPack | 10705 Exterior Sun Control Devices 09500 Suspended Ceilings |
Specification data - Acoustic baffle-suspended ceiling systems
Ceiling support | Demountable suspended ceiling grids. |
Support fasteners | Suspended ceiling clips and self-drilling screws.Aluminium T-bar and wood screws. |
Ceiling units | Sound attenuator infill units. |
System execution | Installation to be done by a Supawood-certified ceiling and partition contractor. |
Blade | 18 mm. Manufacturer guidanceRefers to blade thickness. Custom sizes available upon request. Contact manufacturer for details. |
Blade angle | Manufacturer guidanceIndicate blade angles. Value should be 60–90°. |
Applied finish | Supafinish. |
Colour and finish | Hoop Pine Lime SF. Hoop Pine Classic SF. Fusion Maple SF. Euro Beech SF. Tasmanian Oak SF. |
Edge finish | Matching Supafinish edge. |
Grid spacing | Manufacturer guidanceIndicate grid spacing. Value should be 450–1200 mm. |
OverallDepth | Manufacturer guidanceIndicate grid depth. Minimum of 150 mm, maximum value should be the same as grid spacing. |
Fire performance | Group 1. Group 2. Group 3. Manufacturer guidanceTo BCA C1.10. |
Backing | None. Partial backing, 12 mm Supabab acoustic backing sheet. Full backing, solid or acoustic panel. |
Fixing | Concealed as per Supawood’s recommendation. |
Sustainability requirements | FSC or PEFC certified. Manufacturer guidanceDocumentary evidence in the form of an invoice with each line item annotated with the FSC or PEFC content and supplier's chain-of-custody number must be provided to the project superintendent for project completion. |
Sustainability data
Country of material origin | Australia |
Country of product manufacture | Australia |
