A non-combustible, high impact resistant solid panel, offering excellent durability and mechanical properties.

Jump to:
+61 2 6352 2355 Website

Application

Type A and B constructions where non-combustible materials are required such as mixed-use developments, residential construction, and large-scale government infrastructure projects like hospitals.

Description

Manufactured by Fairview, Vitradual is a 3mm non-combustible solid aluminium cassette cladding system.

It is a high impact resistant, solid panel which can be fabricated, curved and rolled. The pre-finished large format cladding panels feature the same PVDF coating system as Fairview’s leading aluminium panel Vitracore G2; well proven for its superior quality, extensive colour range and design integrity. It has a 15 year warranty.

General information

Color

-

Manufacturer guidance

Vitradual has virtually an unlimited colour range with the possibility of matching almost any colour panel, providing a fully customisable option to achieve your dream design.

Finish

Vitradual uses only the highly recognised PVDF Kynar 500® or FEVE paints known for their high durability, providing the optimum resistance to weather and industrial pollution.

Material

Aluminium

Shape

Rectangle

Size

-

Manufacturer guidance

Vitradual is available in a variety of width and length combinations to suit almost any project and custom sizes are also available on request.

Warranty description

15 year

Manufacturer guidance

Subject to standard terms and conditions.

Uniclass

Pr_25_71_14_07 Aluminium external panelsPrimary

SpeedSpec

07462 Cladding External Walls

SpecPack

07600 Metal Roofing, Siding and Roof Plumbing

NATSPEC National Classification System

0434 Cladding - Flat Sheets and Panels

0431 Cladding - Combined

Specification data - Aluminium external panels

Standard

To AS/NZS 1734.

Fire performance

-

Combustibility

Non-combustible when tested to AS1530.1 and AS1530.3.

Fire hazard properties

-

Standard

To AS 5637.1 and AS/NZS 1530.3.

Spread of flame index

0

Smoke developed index

1

Size

-

Height

2500 mm

3200 mm

4000 mm

Width

1250 mm

1500 mm

Sheet thickness

3 mm.

Finish

-

Coating

PVDF-coated to AS/NZS 2728.

FEVE coating

Manufacturer guidance

Vitradual uses only the highly recognized PVDF Kynar 500® or FEVE paints known for their high durability. These premium paints provide the ultimate resistance to weather and industrial pollution on commercial, industrial, infrastructure and residential developments.

Dry film thickness

Minimum 30 microns

Colour

-

Manufacturer guidance

Vitrdual panels come in a standard range of colours. In some cases colour matching can be done which provides a fully customisable option.

Texture

-

Manufacturer guidance

Panel is produced with a 30% gloss finish unless otherwise specified.

Third party certifications

QA Certificate

QA Certificate

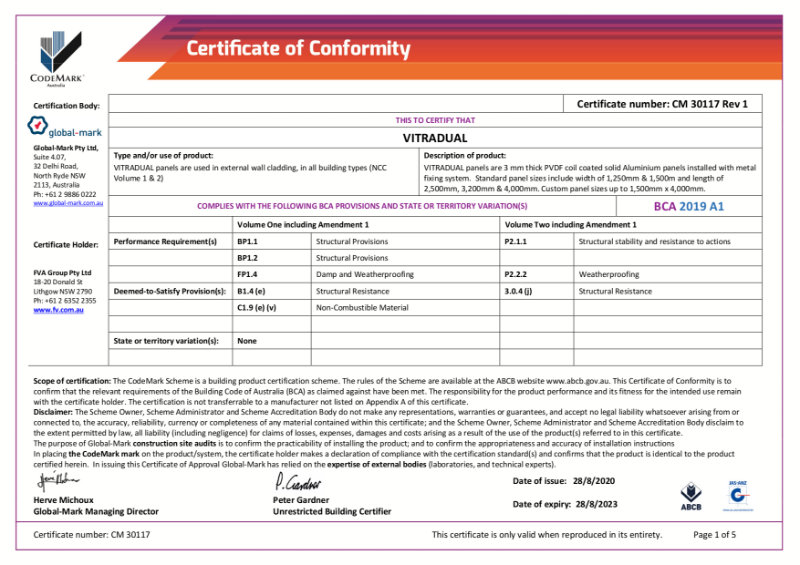

CodeMark Certificate of Conformity - Vitradual

Literature

Fairview Product Range

Fairview Product Range

Vitradual - Non-Combustible Cassette Cladding

Vitradual - Non-Combustible Cassette Cladding

Vitradual - Technical Information

Vitradual - Technical Information

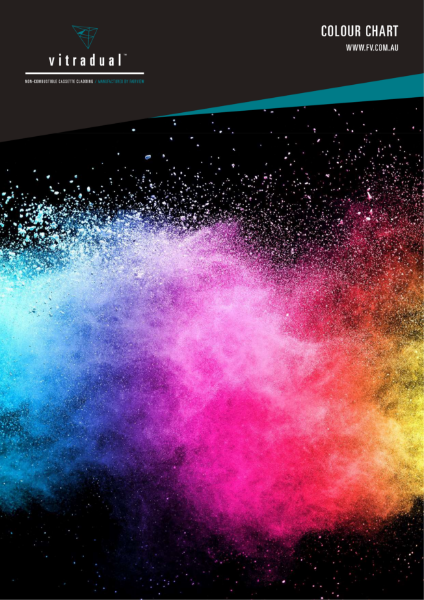

Vitradual Colour WEB

Vitradual Colour WEB

Case studies

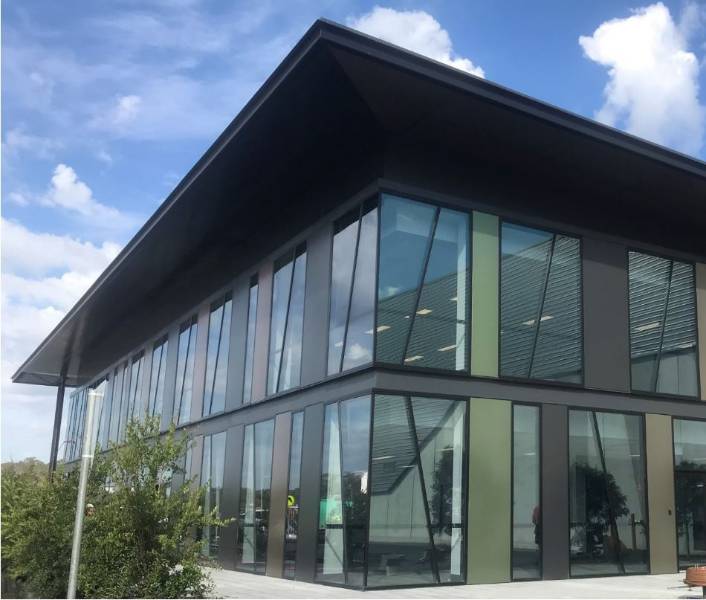

Calibre Eastern Creek Building 3, NSW - Vitradual

Calibre Eastern Creek Building 3, NSW - Vitradual

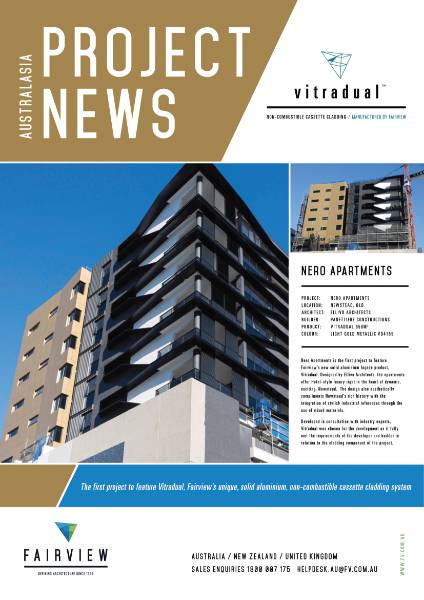

QLD Nero Apartments Project News
