Vitracore G2

Verified by manufacturer over a year ago

Fairview Architectural Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

The leading deemed to satisfy non-combustible bonded aluminium panel.

Jump to:
+61 2 6352 2355 Website

Application

Type A, B, and C constructions where non-combustible materials are required such as mixed-use developments, residential construction, and large-scale government infrastructure projects like hospitals.

Description

Vitracore G2 is the ideal façade product for all types of construction, from residential developments to large scale government infrastructure projects. Vitracore G2 panels can be installed like traditional Aluminium Composite Panels (ACP), yet are the safe option as they do not contain the combustible polyethylene elements of ACPs.


The lightweight nature of the panels, aid in installation procedure and efficacy, reducing overall construction cost. Providing an almost limitless range of colours and finishes, including the option of customisable graphic panels, Vitracore G2 is the decisive solution to high demand and industry requirements.

General information

Color

-

Manufacturer guidance

Available in a wide range of colours. Contact manufacturer for details.

Finish

The highly recognised Kynar 500® PVDF Paint System known for its high durability, providing the optimum resistance to weather and industrial pollution.

Material

Aluminium

Shape

-

Manufacturer guidance

Various panel shapes available.

Size

-

Manufacturer guidance

Standard sizes and customisable sizes available.

Warranty description

15-year warranty, subject to standard terms and conditions.

Uniclass

Pr_25_71_14_10 Aluminium-faced aluminium core panelsPrimary

SpeedSpec

07462 Cladding External Walls

SpecPack

07600 Metal Roofing, Siding and Roof Plumbing

07430 Sandwich Panels

NATSPEC National Classification System

0434 Cladding - Flat Sheets and Panels

0431 Cladding - Combined

Specification data - Aluminium-faced aluminium core panels

Panel construction

-

Aluminium skins

-

Standard

To AS/NZS 1734.

Thickness

4mm thick skin

Manufacturer guidance

Aluminium Skins description : 4.0mm thick Vitracore G2, bonded aluminium panel comprising a profiled aluminium core permanently bonded to two skins of 3003 series aluminium alloy. Face skin shall be 0.7mm and rear skin shall be 0.5mm in thickness.

Core

3mm profiled aluminium core

Fire performance

-

Combustibility

Non-combustible to AS 1530.1.

Manufacturer guidance

The typical composition of Vitracore G2 consists of seven elements, each complying with noncombustibility requirements as specified in 2019 BCA C1.9

Fire hazard properties

-

Standard

To AS 5637.1 and AS/NZS 1530.3.

Spread of flame index

0

Smoke developed index

1

Panel dimensions

-

Length

3200 mm

4000 mm

Width

1250 mm

1500 mm

Overall thickness

4 mm

Fixing type

Cassette style concealed fixing system

Finish as delivered

-

Coating

PVDF KYNAR 500

FEVE coating

VITREFLON V700

Manufacturer guidance

Vitracore G2 panels also come in a range of Anodised finishes, offering both standard and customised colours and textures.

Vitracore G2 panels also come in a range of natural finished panels Vitracore/ZN - Natural zinc composite panel • Natural Aluminium Vitracore - uncoloured aluminium finishes inlcuding brushed and mirror.

Dry film thickness

30 microns minimum

Colour

-

Manufacturer guidance

Vitracore G2 has an unlimited colour range as we can match almost any finish and colour required. Vitracore G2 panels also come in a range of anodised finishes, offering both standard and customised colours and textures.

Vitracore G2 panels come in a range of Anodised finishes, offering both standard and customised colours and textures.

Fairview offers the following natural finished panels: • Vitracore/ZN - Natural zinc composite panel • Natural Aluminium Vitracore - uncoloured aluminium finishes inlcuding brushed and mirror.

Texture

30% gloss unless otherwise specified.

AcousticRating

Rw (C, Ctr) = 22 (-1,-2)

Deflection

Maximum aluminium frame, subframe or stiffener deflection: 1/150 of the clear span.

WindLoadRating

Design wind pressure (Pa): to AS/NZS 1170.2 or AS 4055

Third party certifications

QA Certificate

QA Certificate

AS/NZS 4284:2008 Compliance Test Report - Vitracore G2 with Flexible Membrane

QA Certificate

QA Certificate

AS/NZS 4284:2008 Compliance Test Report - Vitracore G2 with Rigid Membrane

QA Certificate

QA Certificate

CodeMark Certificate of Conformity - Vitracore G2

Literature

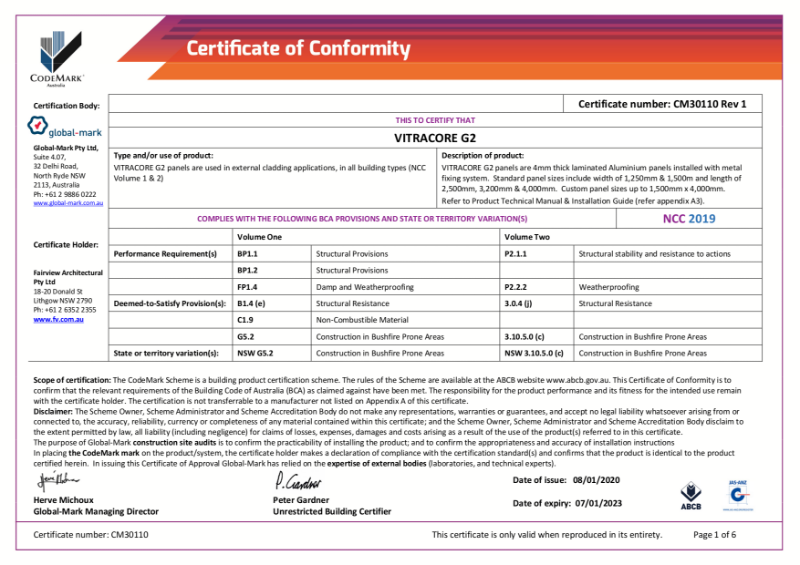

CodeMark Australia - Certificate of Conformity for Vitracore G2

CodeMark Australia - Certificate of Conformity for Vitracore G2

Recladding for Fire Safety - Vitracore G2 Bonded Aluminium Panels

Recladding for Fire Safety - Vitracore G2 Bonded Aluminium Panels

Vitracore G2 - Bonded Aluminium Panel

Vitracore G2 - Bonded Aluminium Panel

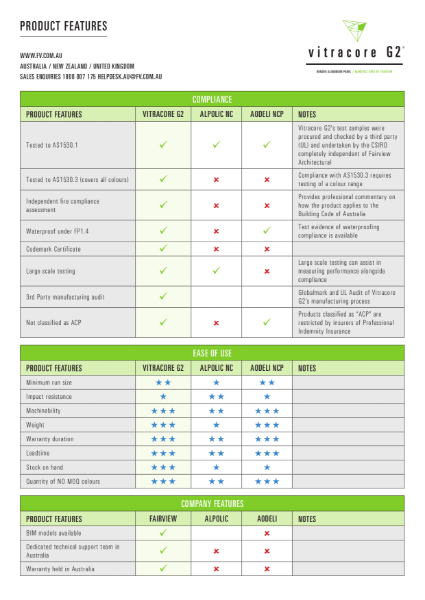

Vitracore G2 - Product Features

Vitracore G2 - Product Features

Vitracore G2 - Technical Information

Vitracore G2 - Technical Information

Vitracore Colour WEB

Vitracore Colour WEB

Case studies

Forensic Pathology & Coroner’s Court, NSW - Vitracore G2

Forensic Pathology & Coroner’s Court, NSW - Vitracore G2

Jaguar Land Rover Southport, QLD - Vitracore G2

Jaguar Land Rover Southport, QLD - Vitracore G2

King Street Warf, Ibis Hotel, NSW - Vitracore G2

King Street Warf, Ibis Hotel, NSW - Vitracore G2

Northpoint Tower Refurbishment, NSW - Vitracore G2

Northpoint Tower Refurbishment, NSW - Vitracore G2

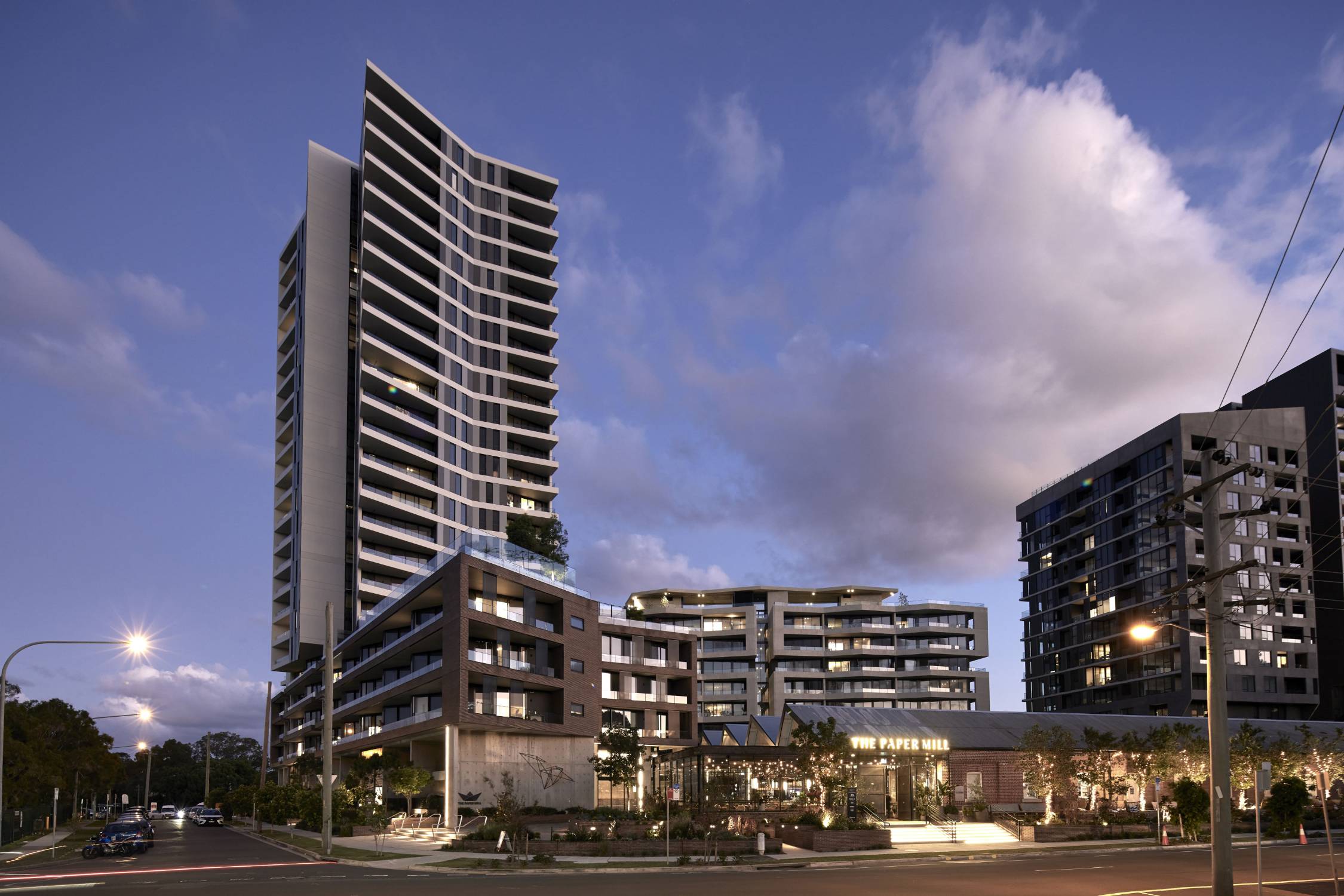

The Paper Mill, NSW - Vitracore G2

The Paper Mill, NSW - Vitracore G2
