Visiflex PVC Strip Door - PVC Strip Door.

Verified by manufacturer over a year ago

DMF International Pty Ltd

Good seal against loss of temperature, dust, noise and vermin control.

Jump to:
+ (61 2) 9636 5466 Website

Application

Visiflex PVC Strip Door is ideal application for:

  • Supermarkets and retail stores.
  • Hospitals.
  • Kitchens.
  • Pharmaceutical laboratories.
  • Sound rooms.
  • Welding bays.
  • Workshops and warehouses.
  • Pedestrian doors and enclosures.
  • Coolrooms and freezers.

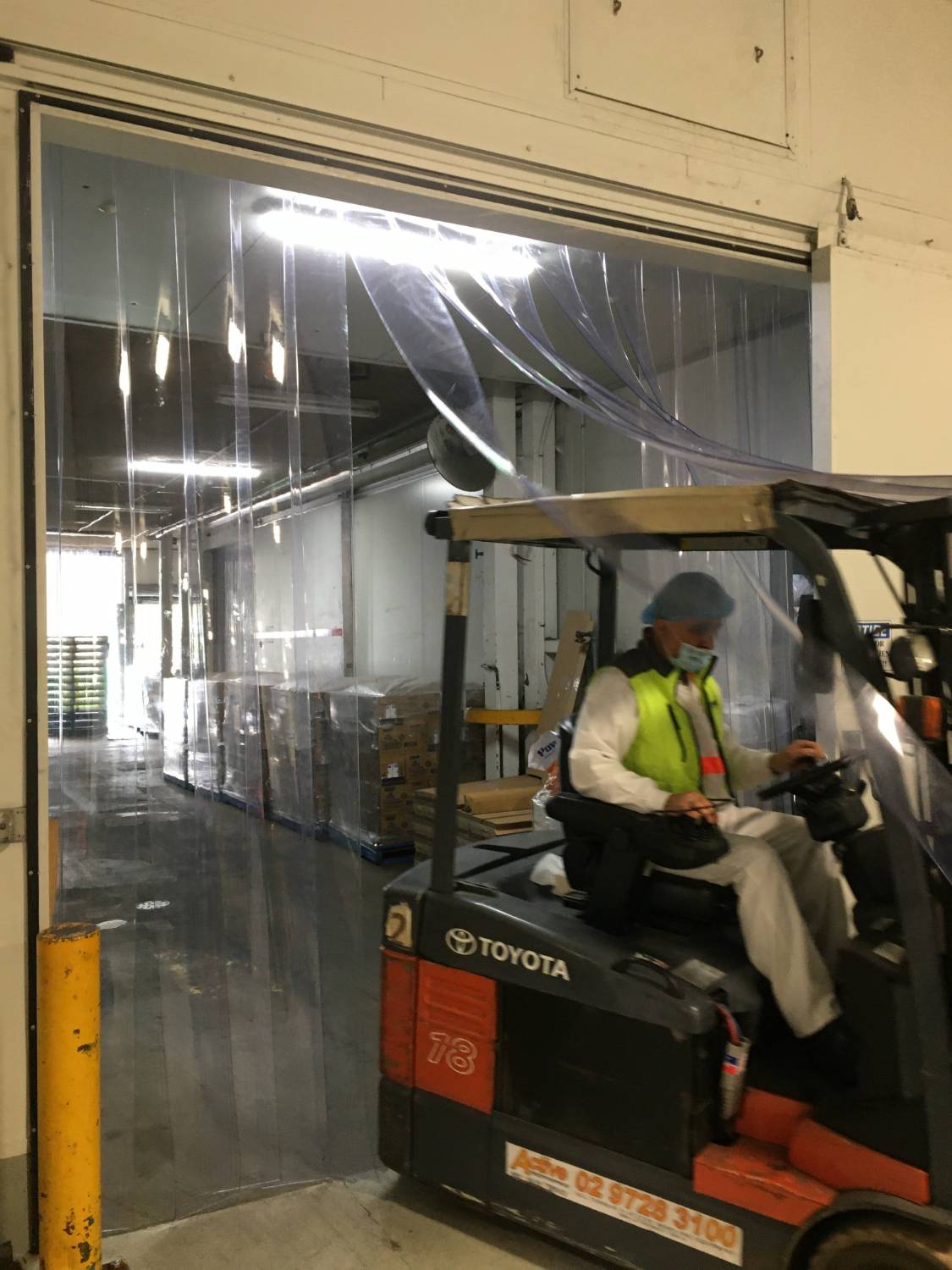

  • Forklift door curtains.

Description

Visiflex Strip Doors are a simple and cost effective door solution to create a good seal against loss of temperature, dust, noise and vermin control.

The transparent flexible PVC is suitable for ambient or freezer temperature grade, with a thickness of 2, 3, 4 or 5 mm. It is to be classified as food grade, with no heavy metals such as lead, barium or cadmium, contained within the material, and plasticizer to be DINP. It shall be an extruded finish, with rounded edge and may be flat or multi ribbed.

General information

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_64 Polyvinyl chloride (PVC) strip curtain setsPrimary

SpecPack

08200 Doors, Door Frames and Hatches

NATSPEC National Classification System

0191 Sundry Items

0453 Doors and Access Panels

SpeedSpec

08200 Doors and Door Frames

Specification data - Polyvinyl chloride (PVC) strip curtain sets

Configuration

Flexible PVC strip doors.

Manufacturer guidance

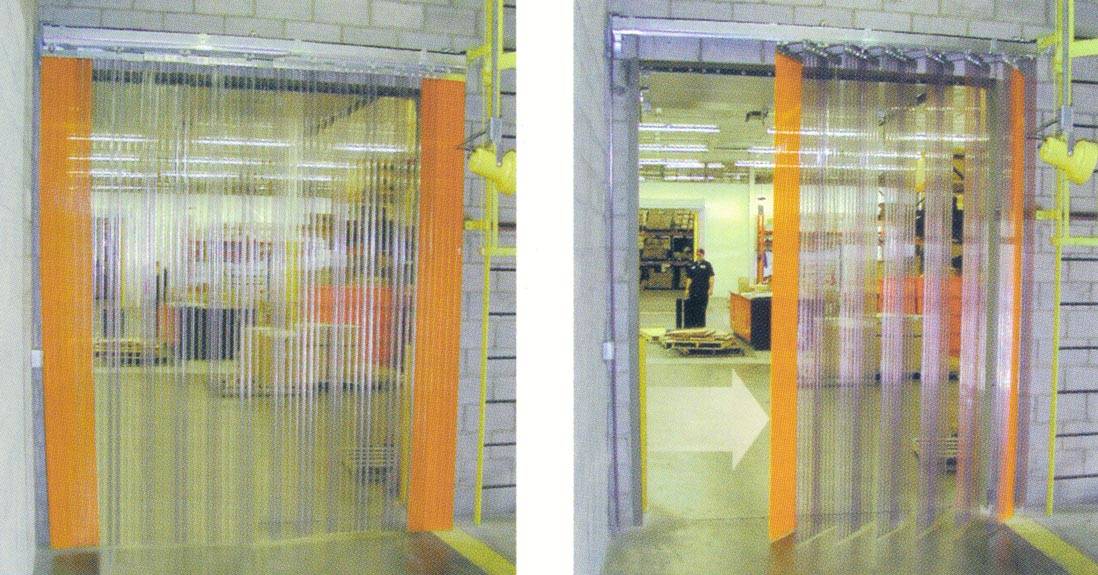

Option for accordion opening system

Size

-

Manufacturer guidance

Can be custom manufactured to sizings.

Contact manufacturer for details.

Strips

-

Width

100 mm.

150 mm.

Guidance for specification option:

Available in 2 and 3 mm thickness.

200 mm.

Guidance for specification option:

Available in 2 and 3 mm thickness.

300 mm.

400 mm.

Thickness

2 mm.

3 mm.

4 mm.

5 mm.

Frame material

Flexible PVC with extruded aluminium rail, grade 6060 T5.

Accessories

Stainless steel UNC fixings.

Guidance for specification option:

For mounting flexible PVC to the head rail.

Type

Light duty rail.

Medium duty rail.

Heavy duty rail.

Manufacturer guidance

Consult the manufacturer for the appropriate rail duty depending the size of opening.

Headrail

Clear pharmaceutical grade, anodised aluminium finish.

Guidance for specification option:

Minimum 10microns.

Manufacturer guidance

The thickness of aluminium used (at the thinnest cross section) is 2 mm thick (light rail), 3 mm (medium rail) or 7 mm (heavy rail).

Mounting position

Face fix.

Head fix.

Manufacturer guidance

With provision of a slot for the UNC bolts holding the PVC, allowing horizontal adjustment of each strip position, and ability to remove an individual strip for replacement.

Headrail colour

-

Manufacturer guidance

Powder coated headrail finish to standard Dulux colours. Consult manufacturer for details.

Grade

Normal temperature grade.

Freezer temperature grade.

Strip shape

Flat strip.

Double ribbed strip.

Sheet/ Strip size

100 w x 2 thick (mm).

150 w x 2 thick (mm).

150 w x 3 thick (mm).

200 w x 2 thick (mm).

200 w x 3 thick (mm).

Show more

Sustainability data

Country of material origin

China

Country of product manufacture

Australia

Recyclability

PVC recyclable
