Urinal screen - Pedestal Mounted
Verified by manufacturer over a year ago
Compact Laminate Colour Palettes - ComLam colours
Compact Laminate Colour Palettes - ComLam colours

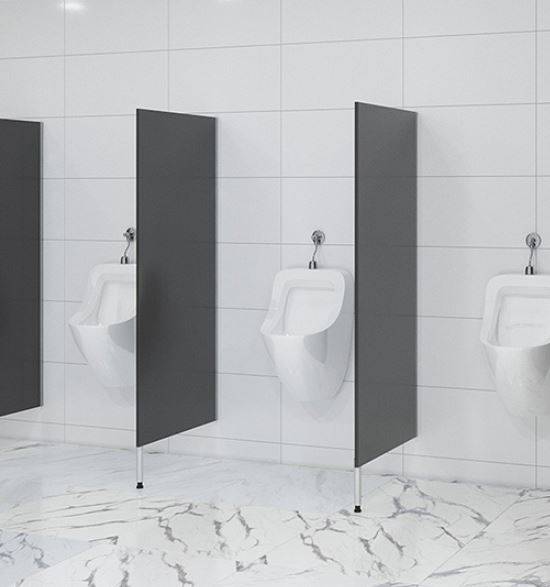

Floor mounted Urinal screen.
Application
- Suitable for use in commercial washrooms, including public toilets, schools, office environments and many more.
Description
Designed by TPI, the Pedestal mounted urinal screen combines an uncluttered line with light, airy, easy-to-clean design. Engineered to stand strong, the open spaces of this cubicle allow it to sit well in tight rooms.
Material Benefits:
13 mm Compact Laminate
Available in a variety of design alternatives due to the range of colours and surface finish options.
- Impact, fire and scratch-resistant.
- Waterproof.
- Easy to clean.
- Bacteria resistant.
General information
Color | Manufacturer guidanceAvailable in wide range of colour options. To check with the manufacturer. |
Material | Acrylic Sheet. Compact laminate (HPL) boards. Decorated HMR / P Board. Nuvex Saniboard. Timber veneer. |
Shape | Rectangle |
Width | 600 mm |
Height | 1800 mm |
Warranty description | Seven year |
Uniclass | |
NATSPEC National Classification System | 0525 Cubicle Systems |
SpecPack | 10150 Toilet Compartments |
SpeedSpec | 10150 Toilet and Similar Compartments |
Specification data - Panel cubicle systems
Enclosures | |
Panels | Acrylic Sheet.Compact laminate (HPL) boards.Decorated HMR / P Board.Nuvex Saniboard.Timber veneer. |
Panel supports | Legs. |
Colour | Black. Charcoal. White. |
Overall height | 1800 mm. |
Cubicle depth | 600 mm. |
Thickness | 13 mm. Guidance for specification option:
10 mm. Guidance for specification option:
19 mm. Guidance for specification option:
18 mm. Guidance for specification option:
32 mm. Guidance for specification option:
|
Floor Clearance | 200 mm. |
Aluminium profile finish | Square clear anodised. Square powder coated. |
Fixing | Screw fixed. |
Legs | 200mm Stainless Steel leg (d32 mm) - Standard. 100mm Aluminium leg (d32 mm). 200mm Slim-line Aluminium leg (d24 mm). |
Sustainability data
Country of product manufacture | Australia |
