Under Ceiling Air Conditioning
Verified by manufacturer over a year ago
R32 Deluxe Model - 6.8 kW Indoor Unit S - 6071PT3E
R32 Deluxe Model - 6.8 kW Indoor Unit S - 6071PT3E
Under Ceiling Air Conditioning
Application
Powerful airflow with a specially engineered outlet optimized to provide long-distance airflow distribution, the under ceiling unit delivers exceptionally comfortable air conditioning to every corner of a room.
Suitably use for residential and commercial application, with wide capacities ranging from 6.0 kW to 14.0 kW.
Description
Under Ceiling Air Conditioning with a compact design and powerful airflow consisting of an outdoor unit and a concealed indoor unit. Design with 24-hour Nanoe™ X air purification. Some of its significant features include:
- Flexible and easy to install.
- Compact Design.
- Quiet operations.
- Air purification system.
- Self-diagnosing function.
- 24 hours air purification.
- Can be controlled with an intuitive voice control device.
- Smart way of controlling air by Cloud base application.
- Panasonic Premium Inverter technology and ECONAVI* technology provides extremely energy efficient cooling or heating while giving energy saving performance.
Design with 24-hour Nanoe™ X air purification that can run independently from cooling or heating mode.
Product benefit:
- Active deodorization.
- Inhibition of hazardous substances.
- Inhibition of mould, bacteria and viruses.
- Inhibition of pollen and of major allergens.
- Moisturizes and hydrates.
Can be controlled with a wired remote controller that offers integration and connects directly to a variety of Cloud base apps.
General information
Color | White |
Finish | Smooth |
Size | Manufacturer guidanceSmall Chassis: 6.8 kW. Large Chassis : 9.5 -13.4 kW. |

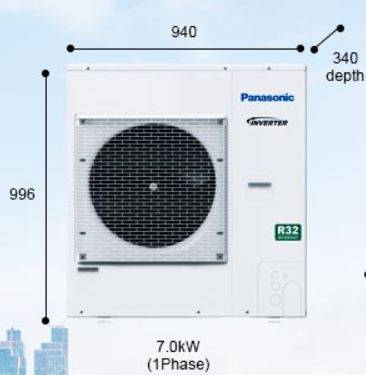

Length | 1275 mm 1590 mm 940 mm Manufacturer guidanceSmall Chassise: Indoor 1275 mm Outdoor 940 mm Large Chassis: Indoor 1590 mm Outdoor 940 mm |
Width | 1275 mm 940 mm 1590 mm Manufacturer guidanceSmall Chassis:
Large Chassis:
|
Height | 235 mm Guidance for specification option: Small Chassis: Indoor 235 mm Large Chassis: Indoor 235 mm 996 mm Guidance for specification option: Small Chassis: Outdoor: 996 mm 1416 mm Guidance for specification option: Large Chassis: Outdoor 1416 mm Manufacturer guidanceSmall Chassise:
Large Chassis:
|
Warranty description | Five year |
Uniclass | |
NATSPEC National Classification System | 0722 Room Air Conditioners 0721 Packaged Air Conditioning 0702 Mechanical Design and Install |
SpecPack | 15782 Air Conditioning - Packaged Units |
SpeedSpec | 15738 Domestic Air-Conditioning |
Specification data - Room air conditioning systems
System performance | 6.8 - 13.4 kW. |
Air ductwork and accessories | |
Ductwork | Flexible ductworkManufacturer guidanceMaximum duct length is.. |
Description | Panasonic ducted air conditioning system concealed indoor unit design with powerful airflow. |

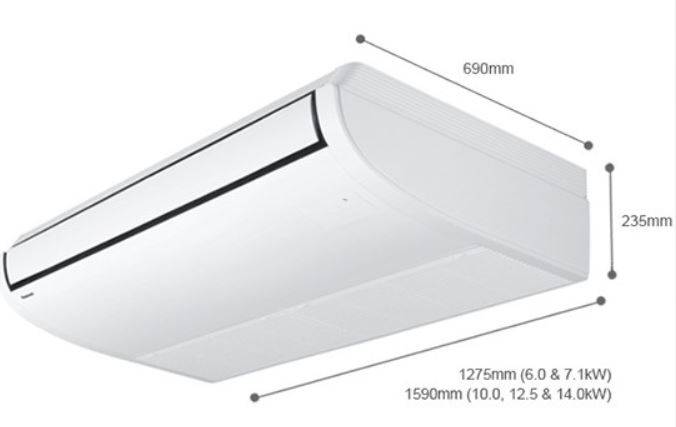

Dimensions | 235 H X 1275 W X 690 D mm. |
TotalCoolingCapacity | 6.8 - 13.4 kW. |
HeatingCapacity | 8.0 - 16.0 kW. |
Power input | 240V - 1 Phase. |
Power supply | AC. |
Acoustic performance | 64 - 70 dBA. |
Volume | 1018 L/s. Guidance for specification option: Air volume. |
Length | 5 - 85 m. |
RefrigerantClass | R 32. |
PipeConnection | 9.52 - 15.88 mm. |
Operating temperature range | -15°C - 46°C. |
Controller | Remote included. |
Size (h x w x d) | 86 x 86 x 25 mm. |
PowerSource | 240V - 1Phase |
Sustainability data
Country of material origin | Malaysia |
Country of product manufacture | Malaysia |
Literature
Panasonic CAC WiFi Solutions
