Application

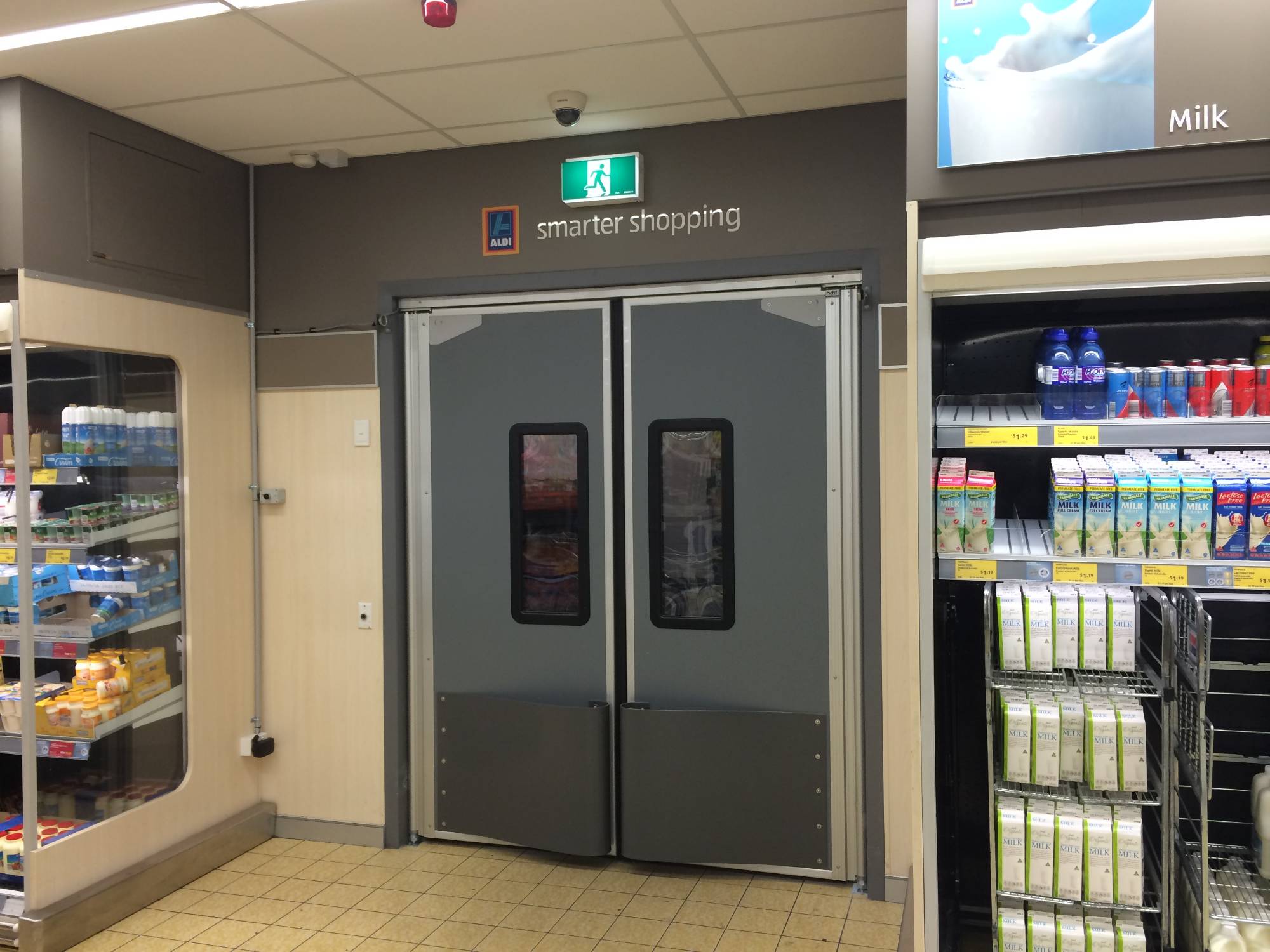

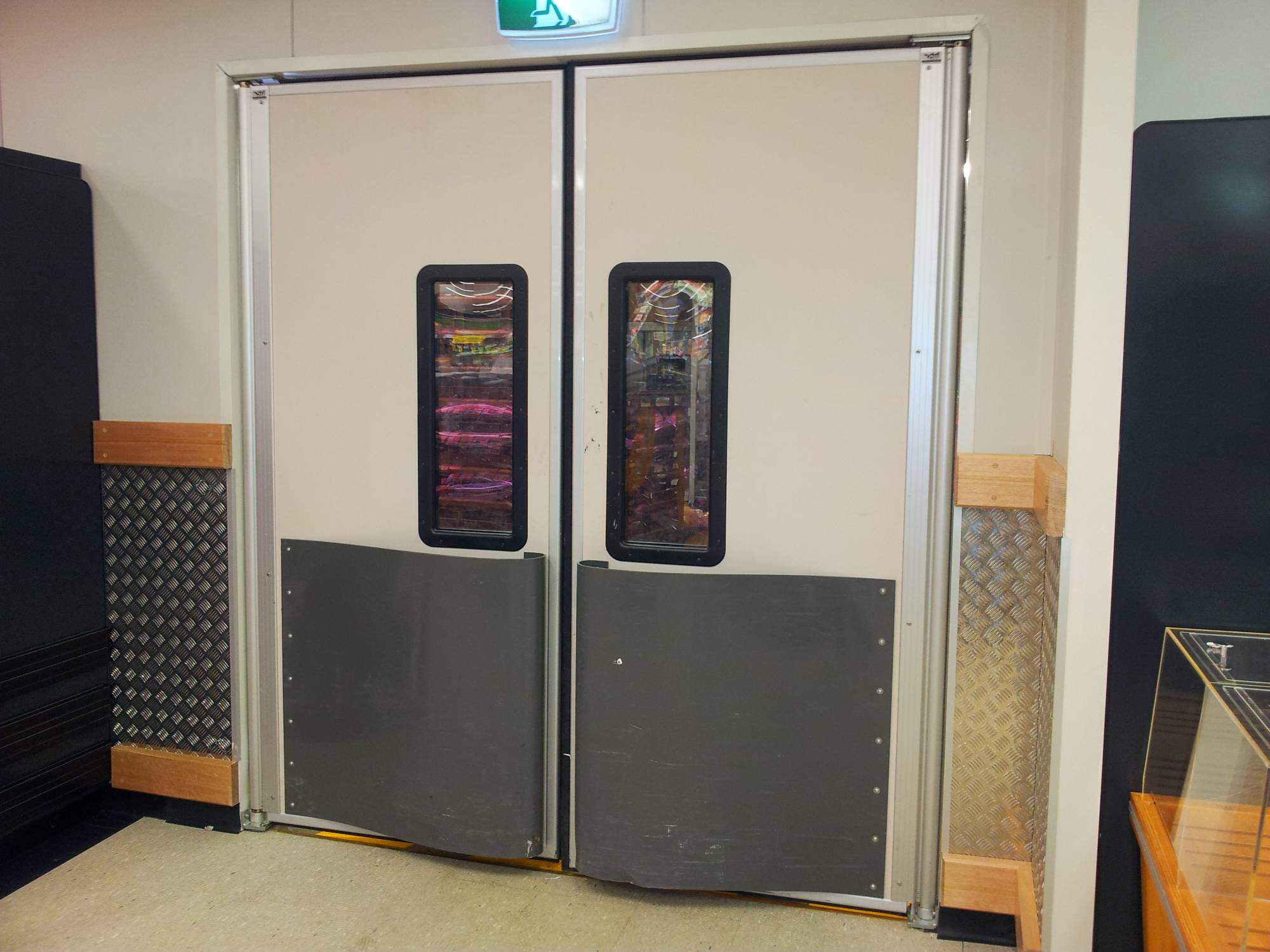

Traffic door is the ideal for extra heavy applications exposed to high traffic flow, such as:

  • Supermarkets.
  • Retail stores.
  • Hospitals.
  • Kitchens.
  • Pharmaceutical laboratories.
  • Sound rooms.
  • Process rooms.
  • Workshops.

Description

Traffic Doors are double swing, impact type door, available also in a single configuration. They are designed for strength and durability in tough, abusive applications, with high pedestrian and/or trolley type traffic. Some of its significant features include:

  • Complete with a very durable door panel and 180° swing.
  • High density PU foam core.
  • Anodised aluminium door stile.
  • Options of kick plate in PE or S/Steel, or teardrop bumper in PE.

General information

Size

-

Manufacturer guidance

Custom manufactured to size up to 2600 w x 3000 h (mm).

Uniclass

Pr_30_59_24_16 Composite doorsetsPrimary

SpecPack

08200 Doors, Door Frames and Hatches

NATSPEC National Classification System

0453 Doors and Access Panels

SpeedSpec

08200 Doors and Door Frames

Specification data - Composite doorsets

Configuration

Double-leaf, double-action.

Single-leaf, double-action.

Size

-

Manufacturer guidance

Can be custom designed to suit any size opening up to 2600 mm (width) x 3000 mm (height), within the design parameter of doors. Consult manufacturer for details.

Classification

Internal.

Frame

-

Material

Aluminium.

Perimeter seals or inserts

Neoprene rubber gasket seal.

Guidance for specification option:

Suited for thermal and acoustic separation and replaceable.

Finish as delivered

Powder-coated.

Guidance for specification option:

To standard Dulux colours.

Consult manufacturer for details.

Anodised.

Colour

-

Manufacturer guidance

Options:

  • Powder coated finish to standard Dulux colours.
  • Coloured finishes to panels.


Consult manufacturer for details

Frame accessories

Hold open mechanism by magnet.

Hold open mechanism by spring rod.

Door leaf

-

Thickness

40 mm.

Core

High density insulated core.

Guidance for specification option:

With a custom liner.

Panel details

Fitted with a clear vision panel.

Guidance for specification option:

As standard, using a double-glazed clear polycarbonate captivated with in a fully seal frame.

Facings

-

External

ABS high impact plastic.

Guidance for specification option:

Minimum of 2 mm.

Glazing

-

Type

Double-glazed clear polycarbonate.

Guidance for specification option:

As standard.

Manifestation

Vision panel.

Guidance for specification option:

Double glazed polycarbonate window with fully moulded gasket seal.

Colour

-

External

-

Manufacturer guidance

Door panel available in several colours. Consult manufacturer for details.

Door accessories

Teardrop bumper, black.

Teardrop bumper, yellow.

Teardrop bumper, grey.

Stainless steel kick plates.

Push plates.

Hardware

Auto-close spring mechanism.

Guidance for specification option:

180° swing, self-centering, with fully adjustable spring tension adjustment.

Dual spring mechanism.

Guidance for specification option:

Available for larger doors provision.

Mounting position

Head fix.

Top side fix.

Bottom fix.

Guidance for specification option:

Normally into the floor and provision for bottom side fix.

Sustainability data

Country of product manufacture

Australia

Literature

Traffic door brochure

Traffic door brochure

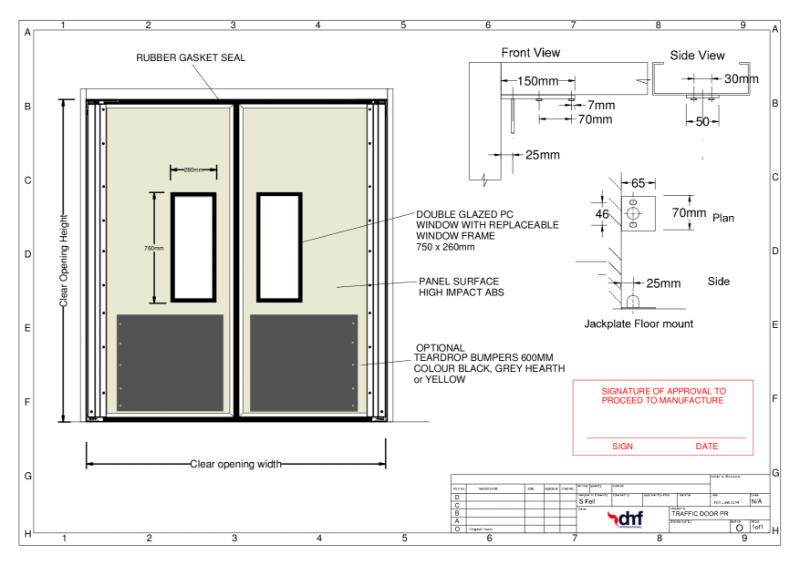

Traffic door drawing

Traffic door drawing

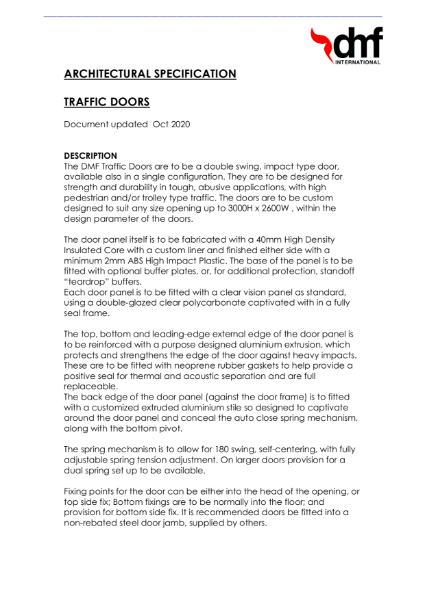

Traffic door specification
