Compact Laminate Colour Palettes - ComLam colours
Recessed pedestal ceiling fixed toilet cubicle system.
Toilet cubicle with recessed, hidden, single solid pedestal mounts design with anchoring to the floor giving a light floating look. With tope and bottom overhead fixing connection to the ceiling.
Material Benefits:
13 mm Compact Laminate
Available in variety of design alternatives due to the range of colours and surface finish options.
18mm and 33mm Decorated HMR P/Board
Highly moisture resistant board, factory laminated on both sides with a hard-wearing decorative melamine surface.
New surface developments give 18mm and 33mm Decorated HMR P/Board superior impact resistance together with the wear and abrasion properties approaching that of high-pressure laminate.
19 mm Nuvex (Doors only)
NUVEX® high quality thermoplastic sheet the new material of choice, setting the highest performance and life-cycle standards. NUVEX® partitions have a number of vital properties, offering graffiti resistance, durability, strength, resistance to corrosion, low maintenance, 100% recyclability and offering a low life cycle cost.
Designboard is a purposely created thermoplastic product designed with the longevity and the environment. It features anti-graffiti and water resistant properties and low maintenance.
12 mm Acrylic – Zenlolite (Doors only)
Made from two layers of acrylic, co-extruded into a single sheet. A vibrant colour layer is fused with a stunningly clear top layer to create a panel of incredible depth, gloss and clarity. It is easy to clean and repairable making it perfect for graffiti prone areas that need a sophisticated Glass-like Toilet Partition.
18mm Timber Veneer.
Available for door panels only.
Color | Manufacturer guidanceCompact laminates colour options are available in:
Also available in other board suppliers colour range. To check with the manufacturer. |
Material | Compact laminate (HPL) boards. Decorated HMR P/Board. Decorated HMR P/Board with 18mm divisions. |
Uniclass | |
NATSPEC National Classification System | 0525 Cubicle Systems |
SpecPack | 10150 Toilet Compartments |
SpeedSpec | 10150 Toilet and Similar Compartments |
Enclosures | |
Panels | Compact laminate (HPL) boards.Decorated HMR P/Board. |
Panel supports | Cubicle and partition legs |
Access | |
Doors | Compact laminate (HPL) boards.Decorated HMR P/Board.RC XL doors.Guidance for specification option: XL doors as close as 55mm to the ceiling and 20mm off the floor, the RC XL Door Option creates a wall of texture and colour showcasing materials while creating maximum privacy. Available in 13 mm Compact laminate only. |
Hardware | Metlam® Xcel series (Standard).Manufacturer guidanceAvailable in wide range of door furniture options: Metlam® Designer Black Series. Novas Pinnacle. Metlam® 300. Allgood Modric (optional 33mm board only). |
Standard | To AS 1428.1 - 2009. |
Overall height | 3000 mm. |
Cubicle depth | 1600 mm. |
Width | 900 - 920 mm. Guidance for specification option: Partition clearance width. Frontal at 200 mm (minimum). |
Height | 1800 mm. Guidance for specification option: Door height. |
Door width | 600 mm. Guidance for specification option: Standard door width. 730 - 750 mm. Guidance for specification option: Ambulant door width. |
Floor Clearance | 100 mm. |
Thickness | 13 mm. Guidance for specification option: Compact laminate. 18 mm. Guidance for specification option: 18 mm Decorated HMR P/Board. 32 mm. Guidance for specification option: 32 mm Timber veneer. |
Colour | Black. Charcoal. White. |
Legs | Custom 150 mm Aluminium leg (d 38mm). |
Aluminium profile finish | Square clear anodised. Square powdercoated. |

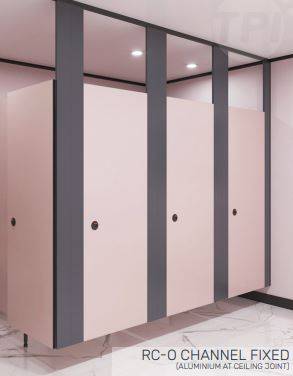

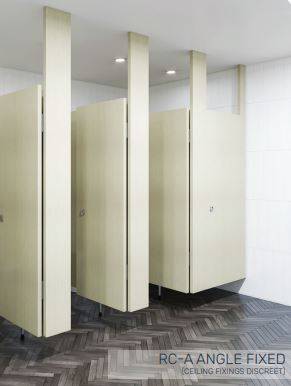

Fixing | RCa – Angle fixed. Guidance for specification option: Discreet screw fixing. RCo - Continuous channel. Guidance for specification option: Aluminium channel visible at ceiling joint. |
