Toilet cubicle - Floor Mounted Ceiling Fixed (FC)
Verified by manufacturer over a year ago
12mm Laminated Acrylic (Doors only)
12mm Laminated Acrylic (Doors only)
Floor Mounted Ceiling Fixed Cubicle System.
Application
- Design with durability making it suitable for weathering and daily bumps and knocks of a high volume environment.
- Most practical product for toilet partitions, particularly in wet and high traffic environments such as toilet cubicles, change rooms, playgrounds and hospitals.
- Stone partitions used in Luxury boardroom washrooms.
- Durable and beautiful stone partition use for Public Institutions and heavy-use public areas.
Description
FC is one of the sturdiest systems TPI offers with a single frontal running from floor to ceiling, with no panel or hardware joints. A waterproof, robust, and high-volume cubicle with a simple mounting system that gives an elegant minimalist lifting. FC is directly anchored to the floor. Available in two specific waterproof materials - economical compact laminate and prestige polished stone.
Material Benefits:
13mm Compact Laminate
Available in variety of design alternatives due to the range of colours and surface finish options.
- Impact, fire and scratch-resistant.
- Waterproof.
- Easy to clean.
- Bacteria resistant.
20mm Stone
- Impact, Fire, Scratch and Graffiti Resistant.
- Supremely durable.
- Low emissions of volatile organic compounds (VOCs) into indoor air.
- Bacteria resistant.
General information
Color | Manufacturer guidanceCompact laminates colour options are available in:
Also available in Nuvex, polished stone and other board suppliers colour range. To check with the manufacturer. |
Material | Compact laminate (HPL) boards. Polished stone. Laminated acrylic (door only) Timber veneer (door only). Nuvex (doors only). |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Seven year Guidance for specification option: Limited warranty for Smartstone. Manufacturer guidance15 years Limited warranty for Smartstone. |
Uniclass | |
SpecPack | 10150 Toilet Compartments |
SpeedSpec | 10150 Toilet and Similar Compartments |
NATSPEC National Classification System | 0525 Cubicle Systems |
Specification data - Panel cubicle systems
Enclosures | |
Panels | Compact laminate.Polished stone. |
Access | |
Doors | Compact laminate.Decorated HMR P/Board.Laminated acrylic.Nuvex.Polished stone.Timber veneer. |
Hardware | Metlam® Xcel series (Standard).Manufacturer guidanceAvailable in wide range of door furniture options: Metlam® Designer Black Series. Novas Pinnacle. Novas Ultima. Metlam® 300. |
System accessories | Modulux® Total privacy solution.Guidance for specification option: Optional privacy edging for ultimate cubicle privacy (available only on 13 mm Compact Laminate). |
Standard | To AS 1428.1 - 2009. |
Overall height | 3000 mm. |
Cubicle depth | 1600 mm. |
Width | 900 - 920 mm. Guidance for specification option: Cubicle partition width clearance. |
Height | 1700 mm. |
Door width | 595 - 600 mm. Guidance for specification option: Standard door width. 720 - 750 mm. Guidance for specification option: Ambulant door width. |
Floor Clearance | 200 mm. |
Thickness options | 12 mm. Guidance for specification option: Laminated Acrylic (door only). 13 mm. Guidance for specification option: Compact Laminates. 18 mm. Guidance for specification option: Timber Veneer (door only). 19 mm. Guidance for specification option: Nuvex (doors only). 20 mm. Guidance for specification option: Polished stone. |
Aluminium profile finish | Square clear anodised. Square powdercoated. |

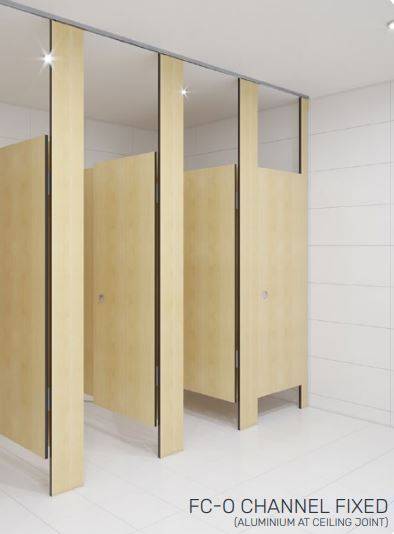

Fixing | FC-A angle screw fixed. Guidance for specification option: Aluminium angle screw fixing to underside of the ceiling. Screw fixing is visible from inside the cubicle. FC-O Channel screw fixed. Guidance for specification option: Fixed to the underside of ceiling with full-length aluminium channel. Screw fixing is visible from inside the cubicle. |
Colour | Arctic. |
Sustainability data
Country of product manufacture | Australia |
Recyclability | Fully recyclable. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
