Timber Click-on Battens - Ceiling

Verified by manufacturer over a year ago

Sculptform

Completely customisable, easily adaptable and quick to install—this beautiful system creates stunning linear effects for your walls.

Jump to:
+61 3 5446 0100 Website

Application

Interior ceilings

Description

The system gives designers incredible flexibility to create linear texture by customising a range of variables such as material, size, shape and spacing.

Battens are simply push-clicked onto mounting tracks that are positioned behind the battens in a concealed manner. The tracks are fixed to the substrate prior to clipping on the battens.

General information

Color

-

Manufacturer guidance

Available colours are Spotted gum, Black butt, American white oak, Victorian ash and Pine.

Various stains available from White Wash to Ebony. See website for more details. Colours are reproduced as accurately as possible, we recommend that you request product samples before final selection. Whilst our products are produced as consistently as possible, each species has their own natural variations of colour, features and characteristics.

Finish

Hydro-flex water-based lacquer with a premium UV top coat.

Material

Timber.

Shape

-

Manufacturer guidance

Click-on Battens are available in the various sizes in Block, Flute and Dome profiles. For larger projects, custom sizes and profiles can be created.

Size

-

Manufacturer guidance

Various sizes available. Widths range from 22mm to 60mm, and thickness from 19mm to 60mm. Lengths random, but cut-to-increment and set lengths available on request.

Warranty description

Internal Applications – 7 years.

Manufacturer guidance

The period and terms of the warranties are divided into the four (4) categories below. Your project may include one or more of the following categories. Sculptform – Timber Products: Internal Applications – 7 years. External Applications – 5 years. Sculptform – Aluminium Products: Internal Applications – 15 years – Up to 25 years available on request. External Applications – 10 years – Up to 25 years available on request

Uniclass

Ss_30_25_22_47 Linear ceiling lining systemsPrimary
Ss_30_25_10_80 Soffit-lining and beam-casing systems
Ss_30_25_22_51 Modular suspended ceiling systems

SpeedSpec

09500 Suspended Ceilings

SpecPack

09500 Suspended Ceilings

NATSPEC National Classification System

0532 Suspended Ceilings - Flush Lined

0531 Suspended Ceilings - Combined

Specification data - Linear ceiling lining systems

Sustainability data

Country of material origin

Australia

Case studies

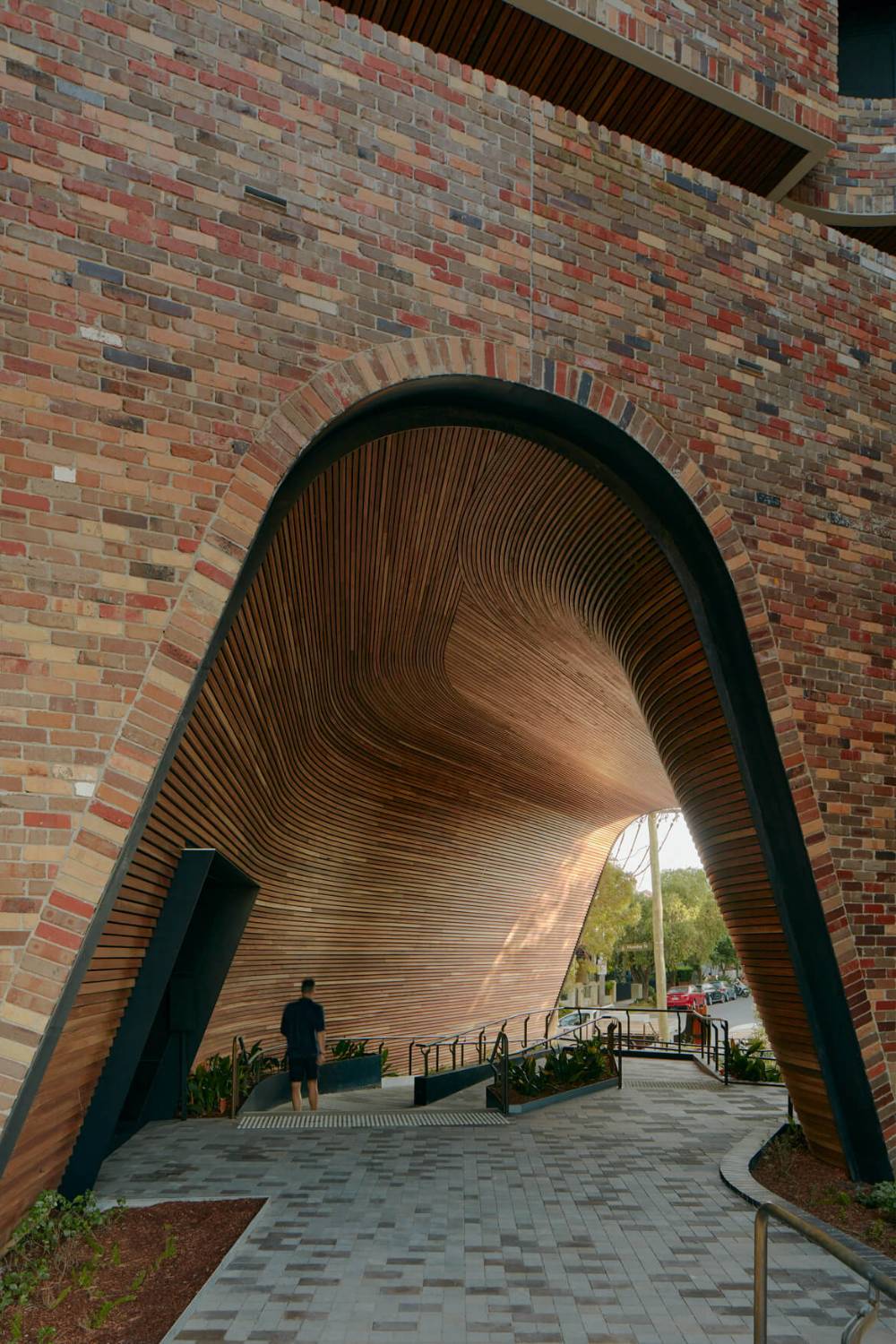

Arkadia Apartments, NSW
