Supatile Slat
Verified by manufacturer over a year ago
Supafinish (Veneer and Concept Laminates)
Supafinish (Veneer and Concept Laminates)
Fully accessible slatted ceiling system.
Application
Suitable for use in exterior spaces like offices, meeting halls, gymnasiums, etc.
Description

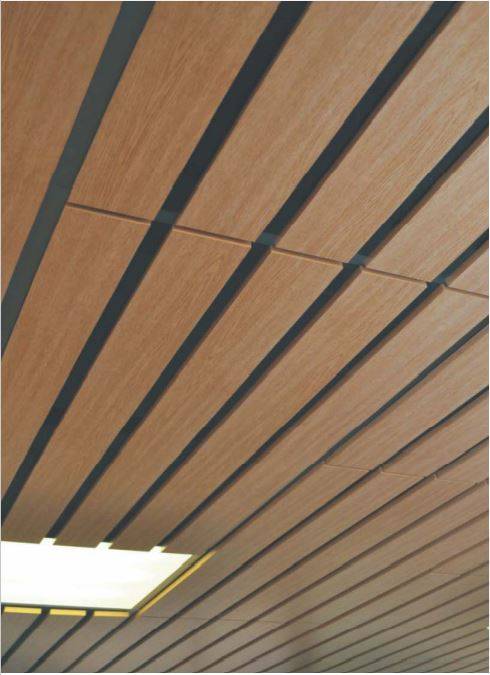

Supatile Slat is a slatted ceiling system that combines the aesthetic of timber slats with the easy access and installation of Supatile. It is developed to fit into the traditional 2-way T-bar grid ceiling system while providing both decorative and sound absorbent properties that can transform any area with an up-market timber or linear look.
General information
Shape | Manufacturer guidanceVarious shaped panels available. In some situations, it may be easiest to cut these on site. |
Warranty description | Ten years. Manufacturer guidanceWarranty claims must be made in writing to Supawood 30 days after a defect in the product becomes apparent. |
Uniclass | |
NATSPEC National Classification System | 0533 Suspended Ceilings - Ceiling Units 0531 Suspended Ceilings - Combined |
SpecPack | 09500 Suspended Ceilings |
SpeedSpec | 09500 Suspended Ceilings |
Specification data - Veneered wood composite infill units
Unit size | |
Face dimensions | 1200 x 600 mm.600 x 600 mm.1200 x 300 mm. |
Thickness | Manufacturer guidanceCan be custom-made according to specifications. Contact manufacturer for details. |
Surface pattern | Slatted. |
Edge profile | Square edge. |
Fire performance | |
Standard | To AS 5637.1:2015. |
Group number | 1.2. |
Acoustic performance | |
Standard | To AS ISO 354-2006 and AS ISO 11654-2002. |
Minimum noise reduction coefficient (NRC) | Slat Option 2: NRC 0.10–0.50.Slat Option 5: NRC 0.80.Slat Random: NRC 0.35–0.70.Standard parallel slotted patterns: NRC 0.45–0.60.Standard parallel slotted pattern + bulk insulation: NRC 0.55–0.65.V-Slotted Patterns: NRC 0.40–0.60.V-slotted pattern + bulk insulation: NRC 0.75.Perforated Panel: NRC 0.70–0.90. |
Execution | Installation to be done by a Supawood-certified ceiling and partition contractor. |
Grid colour | Manufacturer guidanceIndicate desired grid colour. |

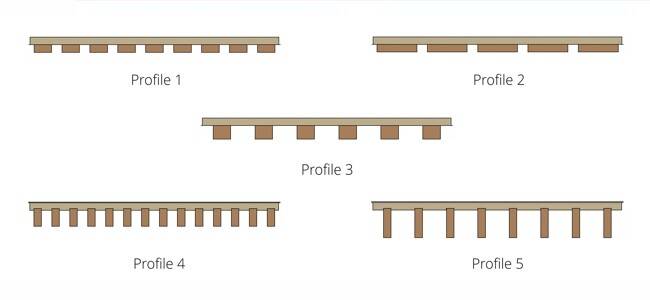

Configuration | Profile 1 - 42 x 18 mm slats. Profile 2 - 95 x 18 mm slats. Profile 3 - 42 x 32 mm slats. Profile 4 - 18 x 42 mm slats. Profile 5 - 18 x 70 mm slats. Manufacturer guidanceSlat sizes are based on Supafinish slats and will vary slightly for Driftwood and any special timbers. |
Applied finish | Supafinish. |
Colour and finish | Black SF. Blackbutt SF. Fusion Maple SF. Hoop Pine Classic SF. Hoop Pine Limed SF. |
Backing | Black acoustic textile (IAT). HP50 bulk insulation blanket. |
Joints | 5 mm end to end joints. |
Sustainability requirements | FSC or PEFC compliance. Manufacturer guidanceDocumentary evidence in the form of an invoice with each line item annotated with the FSC or PEFC content and supplier's chain-of-custody number must be provided to the project superintendent for project completion. |
Sustainability data
Country of material origin | Australia |
Country of product manufacture | Australia |
Recyclability | Can be reused when no longer required. |
