Supaline

Verified by manufacturer over a year ago

Supaveneer (Natural Timber Veneer)

Supawood Variant:

Premium decorative panel system.

Jump to:
+61 1800 002 123 Website

Application

Suitable as a wall or ceiling lining for:

  • Feature walls or ceilings.
  • High traffic areas, such as lobbies, reception areas, atriums and passageways.
  • High activity areas, such as multi-purpose halls and sports centres.
  • Decorative panels for pillars or beams.
  • Office partitions.

Description

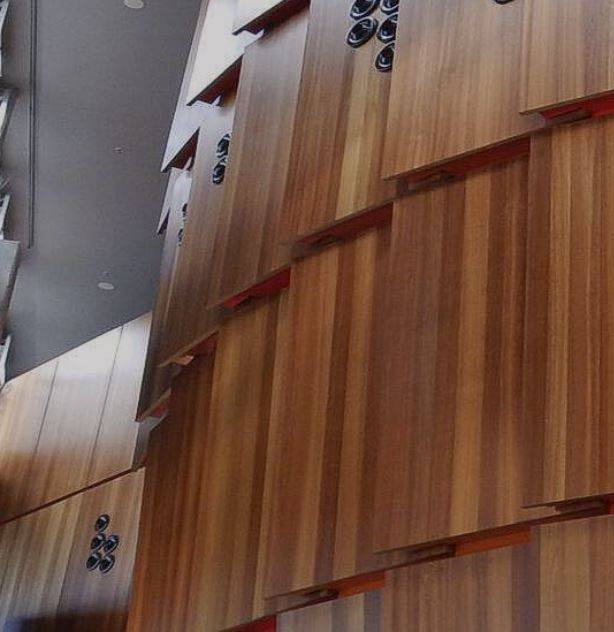

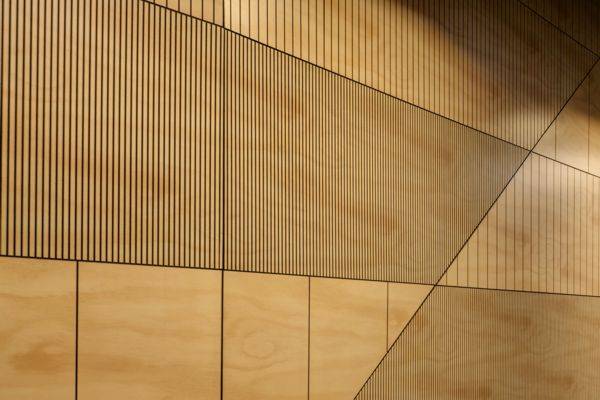

Supaline is a unique architectural lining system used for the quick and affordable creation of smooth concave and convex designs, or even S-curves, without the unsightly bulges. It has excellent durability and is available in a huge range of finishes.

General information

Material

Medium density fibreboard (MDF).

Warranty description

Ten years.

Manufacturer guidance

System as a whole is to have a minimum of ten-year warranty.


Proof of validity of manufacturer’s warranty is to be provided to the superintendent before practical completion.

Uniclass

Pr_35_90_43_53 Medium-density fibreboard (MDF) lining boardsPrimary

NATSPEC National Classification System

0533 Suspended Ceilings - Ceiling Units

0531 Suspended Ceilings - Combined

0511 Lining

SpecPack

09500 Suspended Ceilings

09260 Dry Wall Partitions and Linings

SpeedSpec

09500 Suspended Ceilings

09260 Dry Wall Partitions and Linings

Specification data - Medium-density fibreboard (MDF) lining boards

Standard

To NCC 2019 C1.10 and AS 5637.1:2015.

Class

FR MDF.

Fire hazard properties

-

Standard

To AS 5637.1:2015.

Group number

1.

2.

3.

Thickness

-

Manufacturer guidance

Various thicknesses available. Contact manufacturer for details.

Edge profile

-

Manufacturer guidance

Can be custom-made based on specifications. Contact manufacturer for details.

Finish

Supaveneer.

Manufacturer guidance

Grooved finish available. Contact manufacturer for details.

Colour

American Oak CC.

American Walnut CC.

Blackbutt 1/4.

Hoop Pine CC.

Midnight Black.

Spotted Gum 1/4.

Tasmanian Oak 1/4.

Manufacturer guidance

Available in other species. Contact manufacturer for details.

Execution

Installation to be done by a Supawood-certified ceiling and partition contractor.

Panel size

2390 x 1190 mm.

1790 x 1190 mm.

1190 x 1190 mm.

2390 x 590 mm.

Manufacturer guidance

Custom sizes available. Contact manufacturer for details.

Joints

E10 ​10 mm shadowline ​express joints.

B3 Butt joints.

I3 Anodised aluminium.

Additional finish

​Panels are to ​be factory ​treated with ​Supawood’​s wet sealed ​process to ensure ​resistance to humidity ​and condensation.​

Fixing

SW500SB Wall concealed fixing.

SW500FC Ceiling concealed fixing.

SW300 Exposed fixing.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia
