Supacoustic

Verified by manufacturer over a year ago

Supafinish (Veneer and Coloured Laminates)

Decorative acoustic panel system.

Jump to:

+61 1800 002 123 Website

Application

Suitable for walls and ceilings of:

Shopping centres and restaurants.
Lecture theatres and libraries.
Churches.

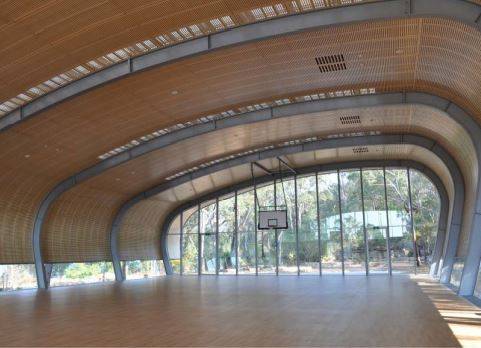

Sports and multi-purpose halls.
Musical performance areas.
Hospitals.

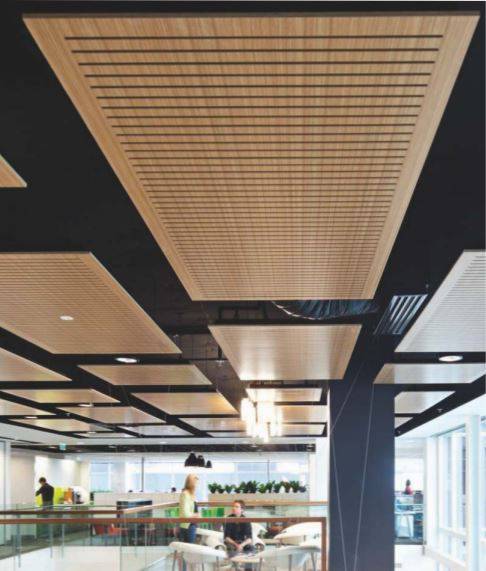

Offices and atriums.

Description

Supacoustic is a unique and decorative paneling for walls and ceilings that can match any existing design concept or style and guarantees excellent acoustic attenuation and control of unwanted noise reverberation.

General information

Material	Medium density fibreboard (MDF).
Warranty description	Ten years. Manufacturer guidance System as a whole is to have a minimum of ten-year warranty by the manufacturer. Proof of validity of manufacturer’s warranty is to be provided to the superintendent before practical completion.

Uniclass	Pr_35_93_13_80 Sound insulating infill unitsPrimary
NATSPEC National Classification System	0533 Suspended Ceilings - Ceiling Units 0531 Suspended Ceilings - Combined 0511 Lining
SpecPack	09500 Suspended Ceilings 09260 Dry Wall Partitions and Linings
SpeedSpec	09500 Suspended Ceilings 09260 Dry Wall Partitions and Linings

Specification data - Sound insulating infill units

Form	Panel.
Application	Ceiling mounting. Wall mounting.
Material	FR MDF.
Dimensions	-
Size (length x width)	2390 x 1190 mm. 1790 x 1190 mm. 1190 x 1190 mm. 2390 x 590 mm. Manufacturer guidance Custom sizes available upon request. Contact manufacturer for details. For Supaveneer and Mimic: Maximum panel size is 3000 x 1200 mm. For Supafinish, Supasurface and Supacolour: Maximum panel size is 3600 x 1200 mm.
Thickness (overall)	12 mm.
Profile	Linear. Curved. Manufacturer guidance Can be supplied curvable or pre-curved down to a 600 mm radius. Contact manufacturer for further details.
Surface pattern	Solid. Perforated Binary 1/100. Guidance for specification option: Open area: 10.19%. Perforated Binary 2/100. Guidance for specification option: Open area: 8.3%. Perforated Binary 3/100. Guidance for specification option: Open area: 6.06%. Perforated Binary 3/120. Guidance for specification option: Open area: 11.8%. Perforated Binary 6/100. Guidance for specification option: Open area: 7.9%. Perforated Binary 6/120. Guidance for specification option: Open area: 11.8%. Perforated SP1/60 (4% open area). Guidance for specification option: Open area: 4%. Perforated SP1/70* (6% open area). Guidance for specification option: Open area: 6%. Perforated SP1/80* (7% open area). Guidance for specification option: Open area: 7%. Perforated SP1/100* (11% open area). Guidance for specification option: Open area: 11%. Perforated SP1/120* (16% open area). Guidance for specification option: Open area: 16%. Perforated SP2/60. Guidance for specification option: Open area: 8%. Perforated SP2/70. Guidance for specification option: Open area: 11%. Perforated SP2/100. Guidance for specification option: Open area: 22%. Perforated SP2/120. Guidance for specification option: Open area: 32%. Perforated SP3/100 (6% open area). Guidance for specification option: Open area: 6%. Perforated SP3/120* (8% open area). Guidance for specification option: Open area: 8%. Slotted SS41/80 or SV41/80 (13% open area). Guidance for specification option: Open area: 13%. Slotted SS41/100 or SV41/100* (17% open area). Guidance for specification option: Open area: 17%. Slotted SS41/130 or SV41/130* (22% open area). Guidance for specification option: Open area: 22%. Slotted SS51/80 or SV51/80 (14% open area). Guidance for specification option: Open area: 14%. Slotted SS51/100 or SV51/100* (17% open area). Guidance for specification option: Open area: 17%. Slotted SS51/130 or SV51/130* (22% open area). Guidance for specification option: Open area: 22%. Slotted SS91/100 (16% open area). Guidance for specification option: Open area: 16%. Slotted SS91/130. Guidance for specification option: Open area: 20%. Bubbles (16.4% open area). Guidance for specification option: Open area: 16.4%. Cyberspace (13.8% open area). Guidance for specification option: Open area: 13.8%. Breeze (29% open area). Guidance for specification option: Open area: 29%. Manufacturer guidance Perforation diameter is indicated at the end of each product type, e.g. Perforated SP1/60 is Supawood type SP1 with 6.0 mm perforations. Only patterns marked with * are available in FR MDF.
Finish	Supafinish.
Colour	Black SF. Blackbutt SF. Fusion Maple SF. Hoop Pine Classic SF. Hoop Pine Limed SF. Spotted Gum SF. Tasmanian Oak SF. Virgin Walnut SF. White SF.
Fire performance	-
Standard	To AS 5637.1:2015.
Group number	1. 2. 3.
Acoustic performance	-
Standard	To AS ISO 354-2006 and AS ISO 11654-2002.
Sound absorption value or noise reduction coefficient (NRC)	Standard Parallel slotted patterns: NRC 0.45–0.60. Standard Parallel slotted pattern + bulk insulation: NRC 0.55–0.65. V-slotted patterns: NRC 0.40–0.60. V-slotted pattern + bulk insulation: NRC 0.75. Perforated Panel: NRC 0.70–0.90. NCK Sawtooth fixing, V-slotted pattern: NRC 0.60–0.75. NCK Sawtooth fixing, Parrallel slotted pattern: NRC 0.60–0.65. NCK Floating panel fixing, Slotted pattern: NRC 0.80.

Backing	Black acoustic textile (IAT). HP50 bulk insulation blanket.
Joints	E10 10 mm shadowline express joints. B3 Butt joints.
Fixing	SW200 or SW900 Semi-concealed fixing. PLK Face fixing or Decal fixing. NCK Floating fixing.
Execution	Installation to be done by a Supawood-certified ceiling and partition contractor.

Sustainability data

Country of material origin	Australia
Country of product manufacture	Australia
Recyclability	Product can be reused when no longer required.
