Subdue® L
Verified by manufacturer over a year ago
Subdue L 14/250
Subdue L 14/250
A lightweight multi-layered noise barrier panel.
Application
- Developed to reduce noise transmission and structural vibration in interior applications such as lightweight interior wall, ceiling and floor construction.
- Suited for low privacy areas such as office partitions and staff quarters.
- Extensively specified for interior marine construction e.g. bulkheads, cabin partitions, floating floors.
- Flooring systems in the rail industry and motor coach industry to reduce road and track noise.
- Fabrication of acoustic doors.
- Used in conjunction with an isolation mount to create floating wall, floor and ceiling systems.
- Suitable for commercial, rail, and marine constructions.
Description
A lightweight multi-layered noise barrier panel, constructed from two outer layers of lightweight marine grade hardwood with a range of inner cores comprising cork, cork/rubber or crumbed rubber.
- Available in a range of lightweight marine grade plywood, tested to BS 1088.
- Tested for low formaldehyde emission.
- Simple to saw-cut, fabricate and install using conventional woodworking tools.
- Tested and proven to have superior damping and sound attenuation properties over standard plywood and similar.
- Thin and lightweight panels whilst still possessing high noise reduction properties.
- Bonded using water resistant glues, Weather and Boil Proof (WBP) tested, according to BS 1088.
- Available in preformed cut panels and varying constructions (offering weight savings) to suit all designs.
General information
Uniclass | |
SpeedSpec | 09500 Suspended Ceilings 09260 Dry Wall Partitions and Linings |
SpecPack | 09500 Suspended Ceilings 09260 Dry Wall Partitions and Linings |
NATSPEC National Classification System | 051 Linings |
Specification data - Marine plywoods
Formaldehyde emission class | |
Standard | To AS/NZS 2098.11. |
Emission class mark | E0. |
Board material | Two outer layers - lightweight marine grade plywood. |
Board thickness | 4 mm. |
Core material | Cork and crumbed rubber. |
Core thickness | 6 mm. |
Density | Up to 1000 kg/m3. |
Sheet size (l x w) | 2400 x 1200 mm (Trimmed). Guidance for specification option: Untrimmed size at 2440 x 1220 mm. |
NominalThickness | 14 mm. |
Acoustic performance | 29. Guidance for specification option: Sound transmission class (STC) and weight sound reduction index rating (Rw). |
Sustainability data
Contains Red List materials | Yes |
Literature

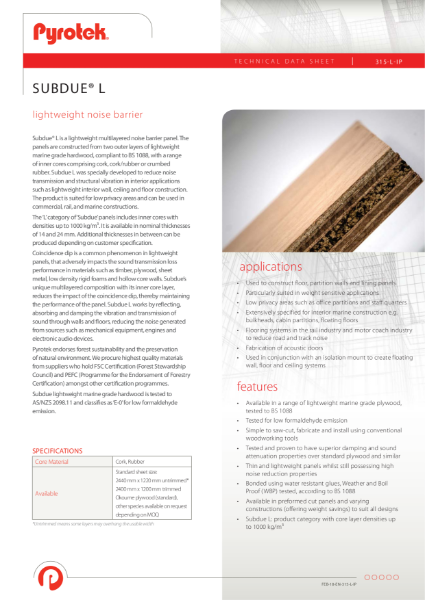

Subdue® L
