Stryüm

Verified by manufacturer over a year ago

Fairview Architectural

Interlocking solid aluminium facade panels with concealed fixings and a contemporary appearance.

Jump to:
+61 2 6352 2355 Website

Application

Ventilated rainscreen facades. Type A, B, and C constructions where non-combustible materials are required such as mixed-use developments, residential construction, and large-scale government infrastructure projects like hospitals.

Description

Interlocking solid aluminium facade panels with concealed fixings and a contemporary appearance.


Features and benefits:

  • High quality panels.
  • Durable and long-lasting.
  • Versatile.
  • Deemed non-combustible, certified to AS530.1 and AS15303.3.
  • Compliance with C.1.9E(v): deemed non-combustible.
  • Completely customizable.
  • Made in Australia.
  • Recyclable.
  • Comprehensive local support available: consult manufacturer for details.



Execution:

The manufacturer also supplies waterproof membrane, s-section substrate, horizontal/ vertical trims, clip-on cover pieces and end/ junction options. Consult literature for installation guidelines.

General information

Color

-

Manufacturer guidance

Available in a wide range of colours. Contact manufacturer for details.

Finish

Powder-coated, woodgrain or anodized.

Material

Aluminium.

Warranty description

15 year

Manufacturer guidance

Subject to standard terms and conditions.

Uniclass

Pr_25_71_14_02 Aluminium cassette panelsPrimary

SpeedSpec

07462 Cladding External Walls

NATSPEC National Classification System

0435 Cladding – Planks and Weatherboards

0431 Cladding - Combined

SpecPack

07600 Metal Roofing, Siding and Roof Plumbing

Specification data - Aluminium cassette panels

Standard

To AS/NZS 1734

Fire performance

-

Combustibility

Non-combustible to AS 1530.1; Compliance with C.1.9E(v): deemed non-combustible

Fire hazard properties

-

Standard

To AS 1530.3: Pass

Group number

Consult manufacturer

Smoke growth rate index

Consult manufacturer

Average specific extinction area

Consult manufacturer

Flammability index

11

Spread of flame index

0

Smoke developed index

3

Panel size

-

Visible height

160 mm, Shadow 160 (SH160)

Guidance for specification option:

Joint width: 29 mm; depth: 17 mm; sheet thickness: 1.8 mm; weight: 6.9 kg/m². Horizontal or vertical installation.

200 mm, Shadow 200 (SH200)

Guidance for specification option:

Joint width: 22 mm; depth: 18.3 mm; sheet thickness: 2.5 mm; weight: 8.82 kg/m². Horizontal or vertical installation.

300 mm, Shadow 300 (SH300)

Guidance for specification option:

Joint width: 31 mm; depth: 18.3 mm; sheet thickness: 3.5 mm; weight: 11.29 kg/m². Horizontal or vertical installation.

260 mm, Seam 260 (SE260)

Guidance for specification option:

Joint width: 29 mm; depth: 47 mm; sheet thickness: 2.8 mm; weight: 11.07 kg/m². Vertical installation only.

250 mm, Step 250 (ST250)

Guidance for specification option:

Joint width/ depth: consult manufacturer; sheet thickness: 2.8 mm; weight: 9.37 kg/m². Horizontal installation only.

Bespoke

Guidance for specification option:

Custom sizes and profiles are available; consult manufacturer for detail and insert requirements.

Joint width

-

Manufacturer guidance

Dependent on panel specified; see Visible height guidance for details

Depth

-

Manufacturer guidance

Dependent on panel specified; see Visible height guidance for details

Length

6500 mm

Sheet thickness

-

Manufacturer guidance

1.8–3.5 mm, dependent on panel specified; see Visible height guidance for details

Finish

-

Coating

Powder-coated (Dulux)

Guidance for specification option:

Insert colour requirements below. Commercial finish, tested to AAMA2604. Thermosetting polyester powders suitable for use in mild, severe and tropical exterior conditions.

Powder-coated (Interpon)

Guidance for specification option:

Insert colour requirements below. Commercial finish, tested to AAMA2604. Thermosetting polyester powders suitable for use in mild, severe and tropical exterior conditions.

Powder-coated to AAMA2605

Guidance for specification option:

Insert colour requirements below. Provides increased warranty; consult manufacturer for details. Ultra durable fluoropolymer powder coat finishes.

Anodized

Guidance for specification option:

24 finishes available; consult manufacturer and insert requirements below. Authentic anodized finish, supplied in accordance with AS1231 2000 Aluminium and Aluminium Alloys – Anodic Oxidisation Coatings.

Woodgrain

Guidance for specification option:

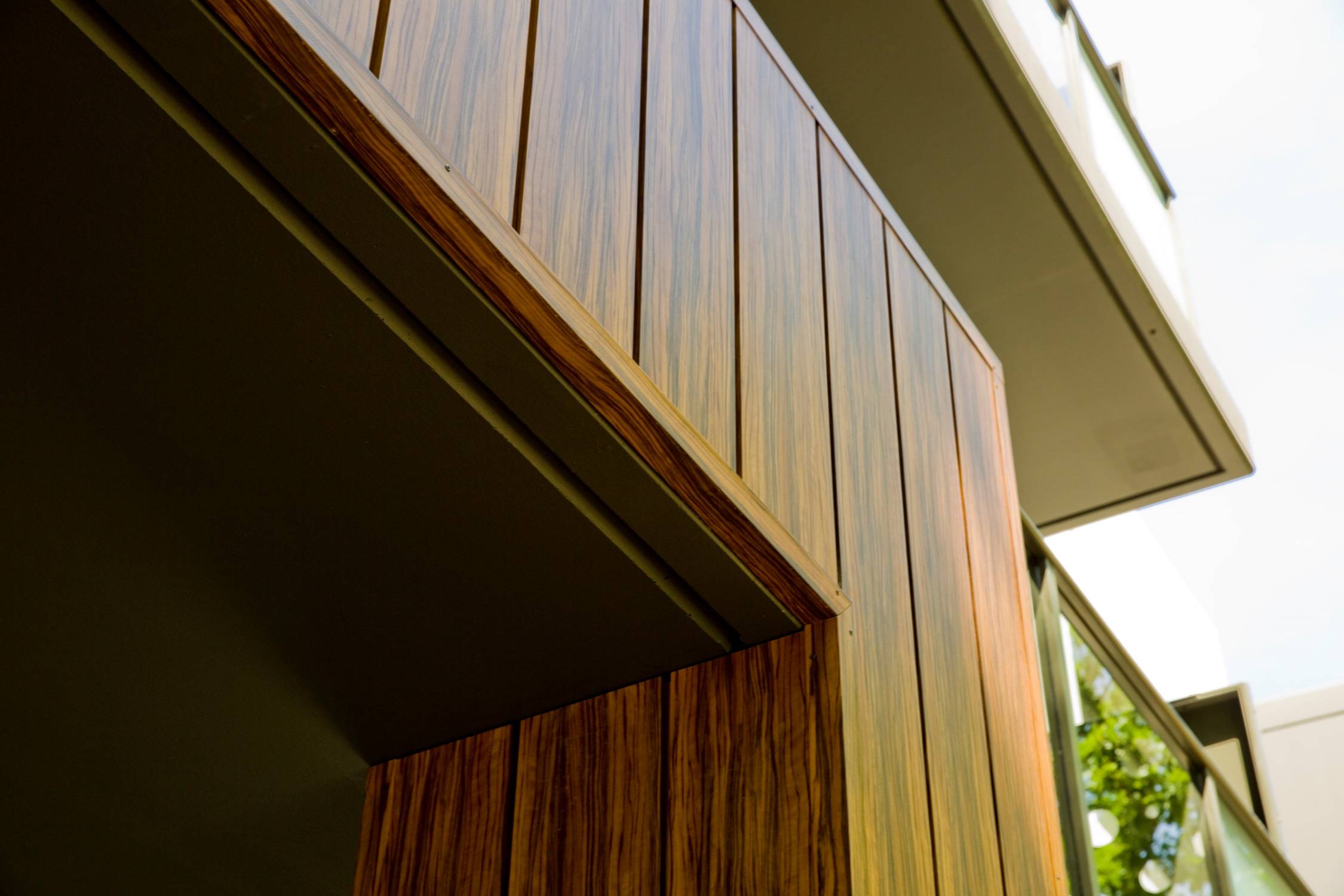

Consult manufacturer for colour options and insert requirements below. Raised grain finish, utilizing Interpon D2525 powders in a 'dual powder' process.

Dry film thickness

Manufacturer's standard

Guidance for specification option:

Dependent on coating specified.

Colour

-

Manufacturer guidance

See Coating guidance and insert requirements.

Texture

-

Manufacturer guidance

Dependent on coating specified; see Coating guidance for details

Verification

-

Submittals

Manufacturer's approved installer certification.

Manufacturer's certification.

Timing

At tender.

Before commencement of installation.

Before completion of detailed design.

Before placement of orders.

No later than two weeks following request.

To comply with programme.

Product Reference

Stryüm

Panel size

160–300 mm.

Manufacturer guidance

Effective cover per panel, dependent on variant selected.

Sustainability data

Country of product manufacture

Australia

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

Consult with manufacturer.

Recyclability

100%.

Literature

Fairview Product Range

Fairview Product Range

Stryum - Technical Information

Stryum - Technical Information

Stryum - Interlocking Aluminum Facade

Stryum - Interlocking Aluminum Facade

Stryum - Trims Guide

Stryum - Trims Guide

Lessons from Leaky Homes - Designing Weatherproof Facades

Lessons from Leaky Homes - Designing Weatherproof Facades

Case studies

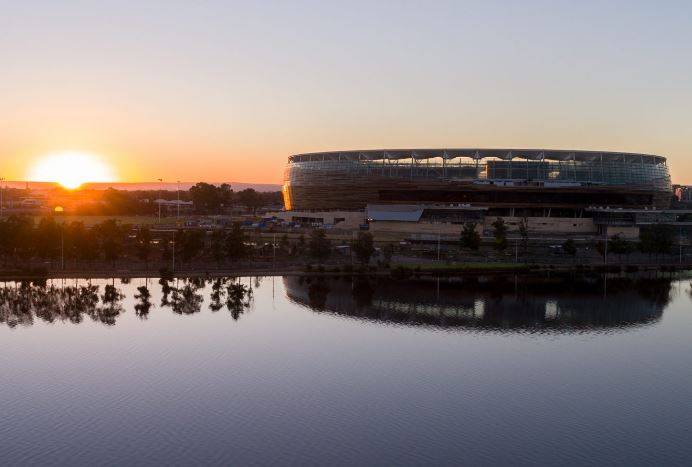

Perth Optus Stadium, WA - Stryüm

Perth Optus Stadium, WA - Stryüm

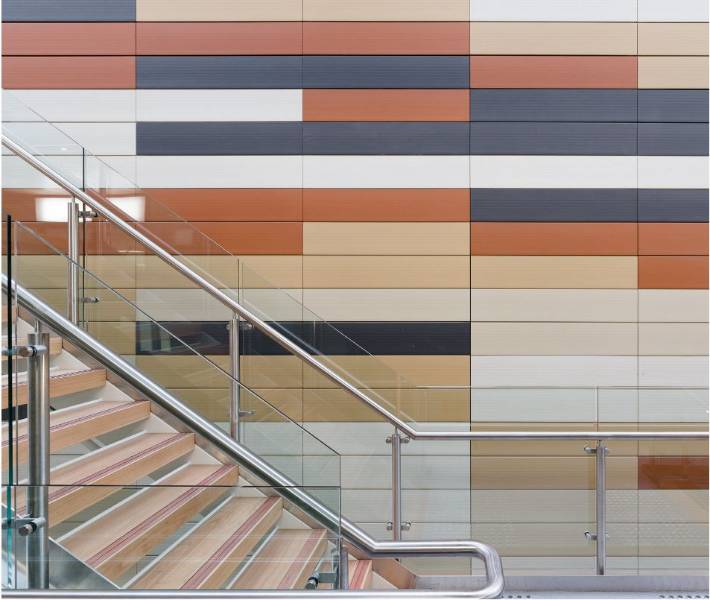

Australian National Archives, ACT - Stryüm
