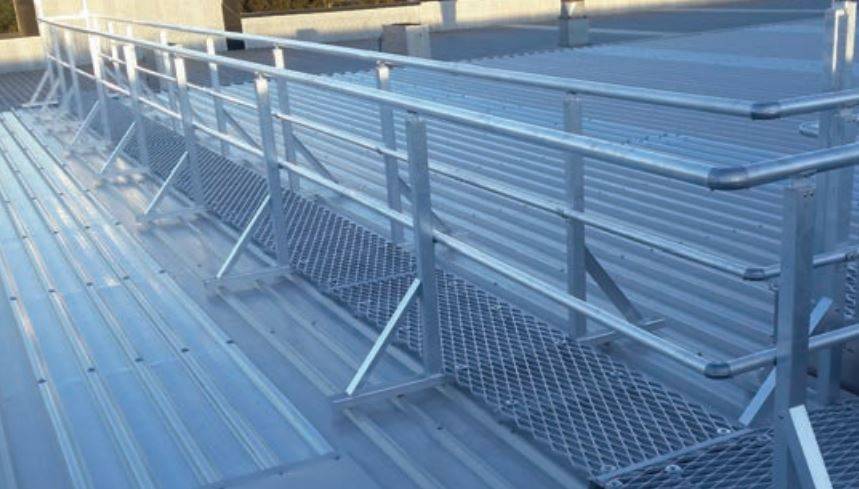

Standard Walkway
Verified by manufacturer over a year ago
Walkways ideal for roof pitches of 1°- 20° up roof.
Application
Ideal for roof pitches of 1°- 20° up roof.
Description
An agile, safe and lightweight solution, Con-form Groups walkways are ideal for roof pitches of 1°- 20° up roof. Our range includes Standard and Levelled walkways.
Features and benefits include:
- Modular solution for fast and effective build and installation.
- Span no more than 3000mm between support beams.
- Approx. 72% open area
- 13mm knurled expanded aluminium mesh.
- Built from lightweight, ultra-strong structural grade aluminium.
- Superior live load ratings of 3kPa.
- Fast and simple construction with rapid installation times.
- No cutting, no welding, no hot works - just bolt it together.
- Available in modular 600mm increments.
- Structural grade aluminium design with strong fixings.
- Built to withstand volatile and extreme weather conditions.
- Reduction in lead-times and time spent on site.
General information
Color | Silver |
Finish | Mill |
Material | Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year Guidance for specification option: All components are backed by a 25-year warranty. |
Uniclass | |
NATSPEC National Classification System | 0552 Metalwork - Fabricated 0191 Sundry Items |
SpecPack | 15782 Air Conditioning - Packaged Units 05500 Metalwork |
Specification data - Aluminium expanded mesh panels
Dimensions | |
Width | 600 mm. |
Frame | |
Material | Aluminium. |
Infill mesh | |
Material | Aluminium. |
Profile | Expanded knurled. |
Finish | |
Colour | White. |
Standard | To AS 1170 and AS 1657. |
Wind loads | V500 = 45m/s. Guidance for specification option: Region A - Tc 2.5. V500 = 57m/s. Guidance for specification option: Region B - Tc 2.5. V500 = 66m/s. Guidance for specification option: Region C - Tc 2.5. Manufacturer guidanceCon-form Group products have been certified for wind regions A, B, and C. |
Fixing | EasyFix MRPurlin MS. MR-S5 RibBracket. MR-S5K RibClaw. Mounting brackets. 14-10 x 75 screws. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Australia |
Country of product manufacture | Australia |
Recyclability | 100 |
Literature

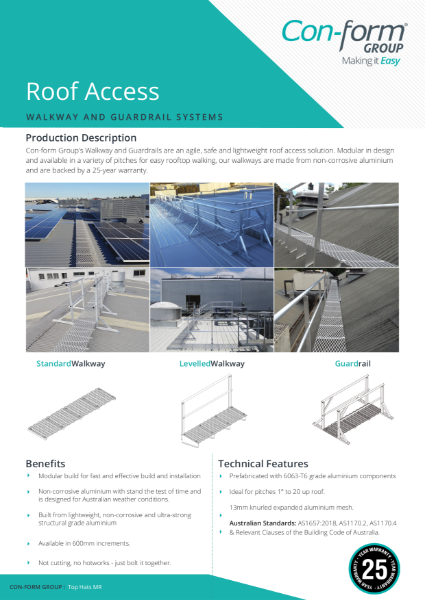

Walkway Product Data Sheet

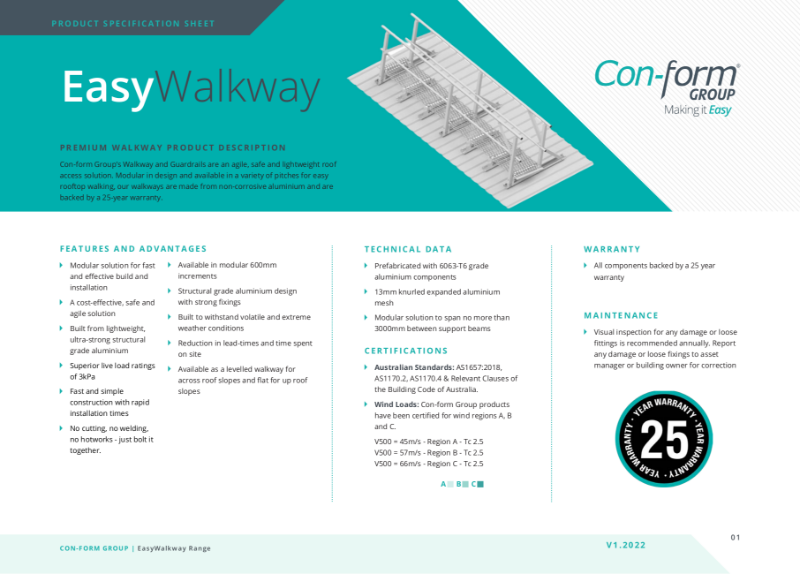

Standard Walkways Technical Specification Sheet
