Speedpanel®

Verified by manufacturer over a year ago

51 mm

Speedpanel Variant:
Third party certifications:

  • NATA Test reports

    Certificate type

Fire and acoustic rated wall systems.

Jump to:
+61 3 9115 6666 Website

Application

Suitable throughout a variety of applications across multiple building sectors as non-structural walls in place of pre-cast concrete, brickwork, blockwork, aerated thermal blocks and other fire rated wall systems. Common applications include:

  • Shaft and riser walls and intertenancy and corridor walls within high rise buildings.
  • Party walls and boundary walls in multi-residential buildings.
  • Fire-rated escape stairs, car park and plant room walls within high rise buildings.
  • Factory separations and boundary walls for industrial projects.
  • Ceiling systems and bulkheads (78 mm profile only).

Description

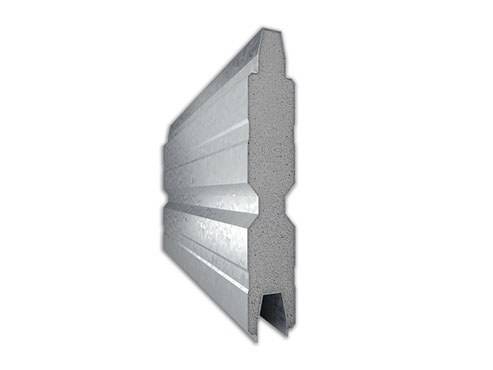

Speedpanel® is a pre-fabricated panel system comprised of a roll-formed steel outer shell filled with an aerated cement core. It is an innovative and time-saving fire and acoustic rated wall system that is highly versatile, lightweight and easy to handle and install.

General information

Color

-

Manufacturer guidance

Available in a wide variety of colours. For exact matching, an official colour swatch from steel manufacturer should be used. Contact manufacturer for further information.

Finish

Galvanized.

Material

Galvanized steel shell with aerated cement core.

Shape

Other

Size

-

Manufacturer guidance

Profile thicknesses.

Length

Bespoke

Uniclass

Ss_25_11_16_65 Precast concrete wall systemsPrimary

NATSPEC National Classification System

0323a Steel Faced Autoclaved Aerated Concrete (AAC) Panels

0431 Cladding - Combined

0520 Partitions - Combined

0511 Lining

SpeedSpec

07462 Cladding External Walls

SpecPack

07415 Steel-Faced Autoclaved Aerated Concrete (AAC) Panels

Specification data - Precast concrete wall systems

Wall units

Non-structural fire-rated panels.

Manufacturer guidance

Composed of galvanized steel shell with aerated cement core.

Face layer

0.4 mm Galvanized steel.

Core material

Lightweight aerated cement.

Panel size

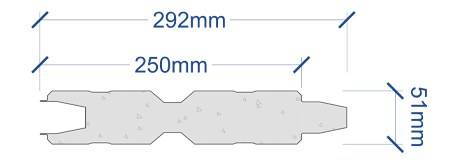

51 mm (width) x 292 mm (height).

Panel length

-

Manufacturer guidance

Available in lengths up to 9000 mm.

Density

435 kg/m³.

Guidance for specification option:

Approximately 7.7 kg per linear metre.

550 kg/m³.

Guidance for specification option:

Approximately 9.0 kg per linear metre.

650 kg/m³.

Guidance for specification option:

Approximately 10.2 kg per linear metre.

750 kg/m³.

Guidance for specification option:

Approximately 11.3 kg per linear metre.

850 kg/m³.

Guidance for specification option:

Approximately 12.5 kg per linear metre.

Show more

Manufacturer guidance

Select density series. Wind loading values vary based on profile span and density. Check details with manufacturer.

Fire rating

-/60/60.

Manufacturer guidance

To AS 1530.4:2014. Tested both ways.

Sound insulation rating

37.

Guidance for specification option:

System number and composition:

  • SPFT023 – 51 mm Speedpanel (600 kg/m³ density).

44.

Guidance for specification option:

System number and composition:

  • SP51005 – 51 mm Speedpanel (450 kg/m³ density), 20 mm air gap, 51 mm steel stud, 75 mm 24k g/m³ glasswool insulation and 13 mm std plasterboard.

48.

Guidance for specification option:

System number and composition:

  • SPFT028 – 51 mm Speedpanel (600 kg/m³ density), 16 mm furring channel, 30 mm 14 kg/m³ polyester insulation and 13 mm std plasterboard.

50.

Guidance for specification option:

System number and composition:

  • SPFT031 – 13 mm std plasterboard, 16 mm furring channel, 51 mm Speedpanel (435 kg/m³ density), 30 mm air gap, 100 mm 14 kg/m³ glasswool insulation, 64 mm steel stud and 13 mm std plasterboard. Or,
  • SP51019 – 13 mm std plasterboard, 10 mm steel batten, 51 mm Speedpanel (900 kg/m³ density), 20 mm air gap, 51 mm steel stud, 75 mm 24 kg/m³ glasswool insulation and 13 mm std plasterboard. Or,
  • SP51014 – 10 mm std plasterboard, 90 mm timber frame, 100 mm 32 kg/m³ glasswool infill, 20 mm gap, 51 mm Speedpanel (450 kg/m³ density), 5 mm gap, 90 mm timber frame and 10 mm std plasterboard. Or,
  • SP2P019 – 51 mm Speedpanel (550kg/m³ density), 45 mm air gap, 50 mm 24kg/m³ glasswool insulation and 51 mm Speedpanel (450 kg/m³ density).

53.

Guidance for specification option:

System number and composition:

  • SPFT018 – 13 mm std plasterboard, 16 mm furring channel, 51 mm Speedpanel (435 kg/m³ density), 50 mm 14kg/m³ polyester insulation, 28 mm furring channel on clips to create 40 mm cavity and 13 mm std plasterboard.

Manufacturer guidance

Rw + Ctr values. Tested to AS 1191.


For alternative Speedpanel acoustic systems, contact manufacturer.

Colour

Ebony.

Gull Grey.

Merino.

Off White.

Slate Grey.

Manufacturer guidance

A wide variety of colours are available for the Speedpanel range. For exact matching, an official colour swatch from steel manufacturer should be used.


Contact manufacturer for further information.

Orientation

Vertical.

Guidance for specification option:

Maximum values:

  • Span between structural connections: 5.0 m.
  • Wall length (single span): Unlimited.
  • Wall height (single span): 5.0 m.
  • Wall length (multiple structural connections): N/A.
  • Wall height (multiple structural connections): 14.0 m.

Horizontal.

Guidance for specification option:

Maximum values:

  • Span between structural connections: 3.0 m.
  • Wall length (single span): 3.0 m.
  • Wall height (single span): 5.0 m.
  • Wall length (multiple structural connections): Unlimited.
  • Wall height (multiple structural connections): N/A.

Standard

To AS 1530.4, AS 1191, AS 4040.2:1992, AS/NZS 1170.0, AS 1170.4, AS 1170.5, AS/NZS 1170.2 and AS/NZS 4284:2008.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Recyclability

Can be dismantled and reused.

Third party certifications

NATA Test reports

Report No. FCO-2368 MODIFIED SPEEDPANEL WALL SYSTEM

NATA Test reports

Report No. FAR4271 FYREHATCH WALL ACCESS HATCHES IN SPEEDPANEL WALLS

NATA Test reports

Report No. FAR3895 HORIZONTAL & VERTICAL WALLS

NATA Test reports

Report No. FAR3789 SPEEDPANEL JUNCTION DETAIL

NATA Test reports

Report No. FAR3580 HORIZONTAL AND VERTICAL WALLS WITH INCREASED HEIGHT & WIDTH VARIATIONS

NATA Test reports

Report No. 47127900.1 WALL SYSTEMS INCORPORATING BLENDAIR MFD SERIES, SBFP SERIES, SHD SERIES AND SSD SERIES DAMPERS

NATA Test reports

Report No. 40534400.2 SPEEDPANEL 4- HOUR DOUBLE SKIN WALL SYSTEM.

NATA Test reports

Report No. 28928.4.1 - SPEEDPANEL VERTICAL WALLS

NATA Test reports

Report No. 26593800-01 78MM VERTICALLY WALL SYSTEM WITH MOVEMENT POTENTIAL OF JOINT PRIOR TO FIRE EVENT

Literature

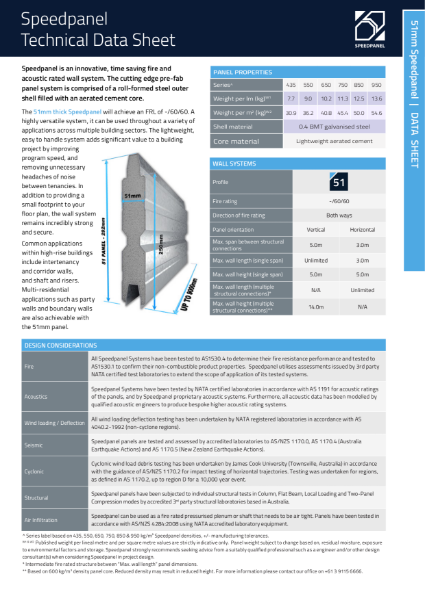

SPEEDPANEL® 51 mm

SPEEDPANEL® 51 mm

SPEEDPANEL® 64 mm

SPEEDPANEL® 64 mm

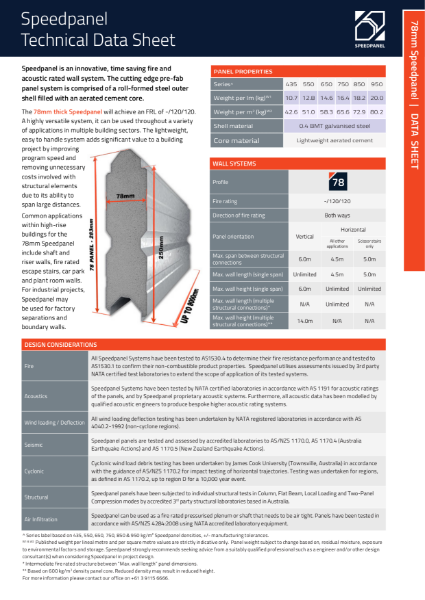

SPEEDPANEL® 78 mm

SPEEDPANEL® 78 mm

SPEEDPANEL® Project Portfolio

SPEEDPANEL® Project Portfolio

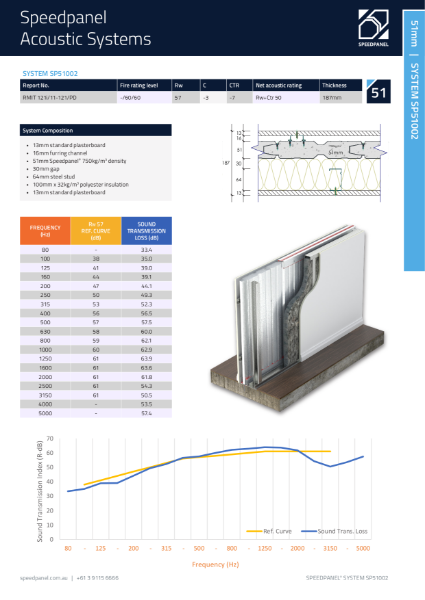

Acoustic Systems FRL -/60/60 (60 Minutes)

Acoustic Systems FRL -/60/60 (60 Minutes)

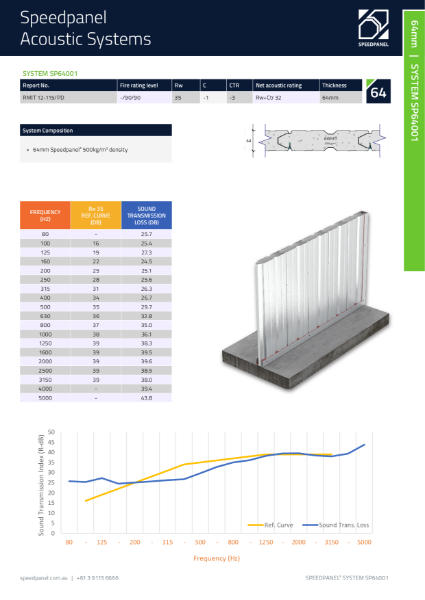

Acoustic Systems FRL -/90/90 (90 Minutes)

Acoustic Systems FRL -/90/90 (90 Minutes)

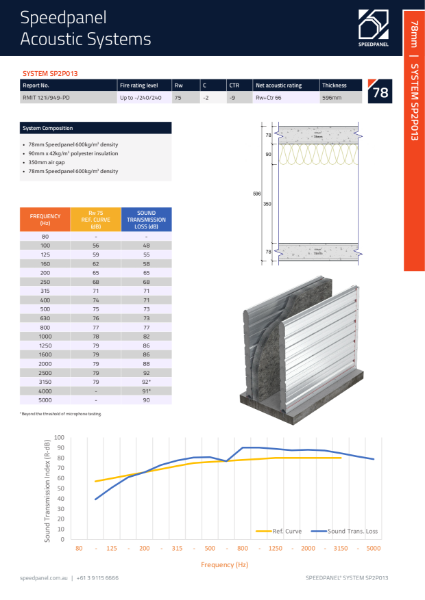

Acoustic Systems FRL -/120/120 (120 Minutes)

Acoustic Systems FRL -/120/120 (120 Minutes)

SPEEDPANEL® Loading & Lining of Fire Rated Systems

SPEEDPANEL® Loading & Lining of Fire Rated Systems

SPEEDPANEL® Components Guide

SPEEDPANEL® Components Guide

SPEEDPANEL® Concrete Connections

SPEEDPANEL® Concrete Connections

SPEEDPANEL® Steel Connections

SPEEDPANEL® Steel Connections

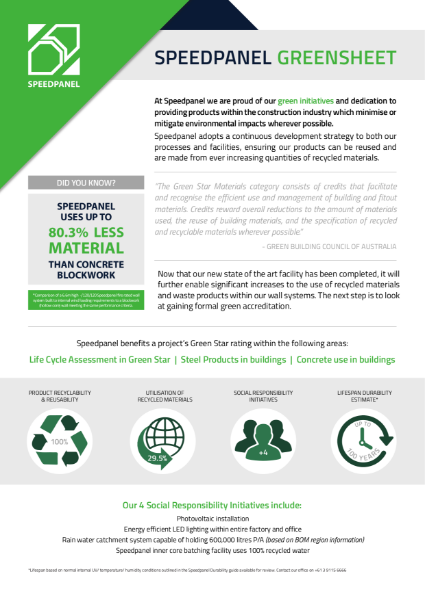

SPEEDPANEL® Greensheet

SPEEDPANEL® Greensheet

SPEEDPANEL® Cyclonic Systems

SPEEDPANEL® Cyclonic Systems

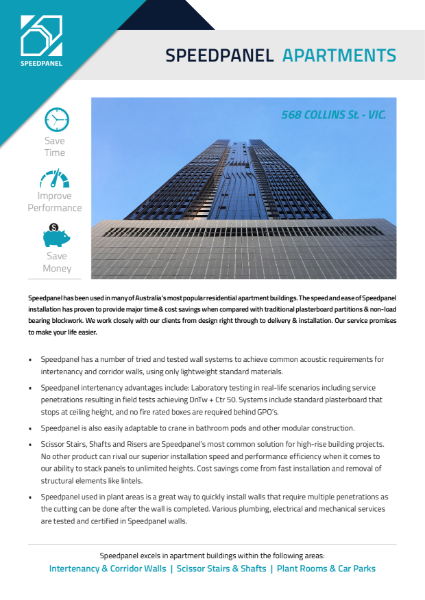

SPEEDPANEL® Apartments

SPEEDPANEL® Apartments

SPEEDPANEL® Cinema Projects

SPEEDPANEL® Cinema Projects

SPEEDPANEL® Hospital Projects

SPEEDPANEL® Hospital Projects

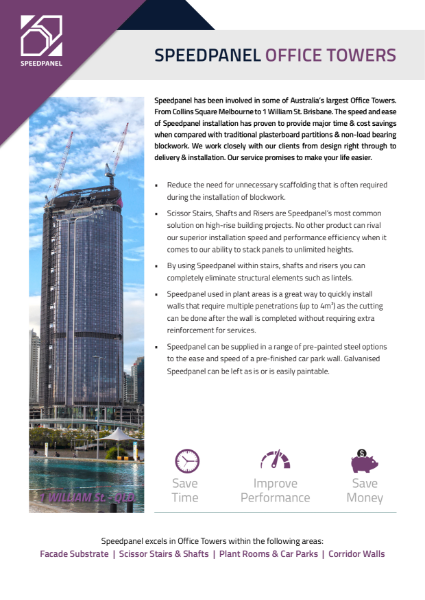

SPEEDPANEL® Office Towers

SPEEDPANEL® Office Towers

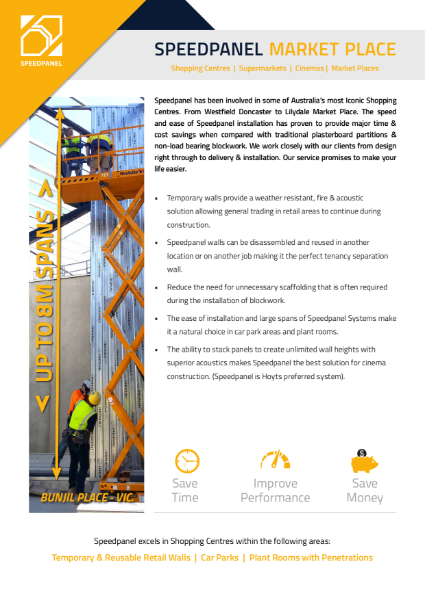

SPEEDPANEL® Shopping Centres, Supermarkets, Cinemas, Market Places

SPEEDPANEL® Shopping Centres, Supermarkets, Cinemas, Market Places

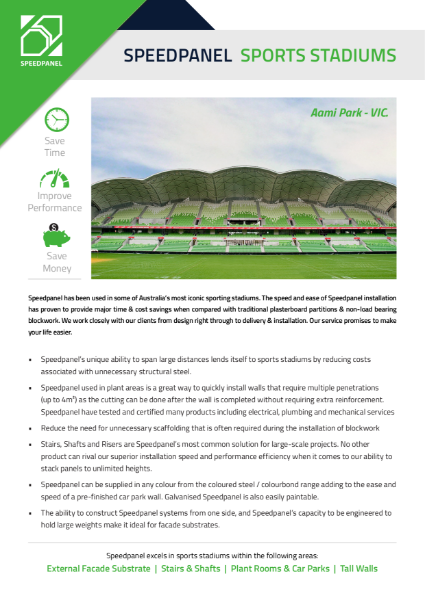

SPEEDPANEL® Sports Stadiums
