Soundlag™

Verified by manufacturer over a year ago

Soundlag 4525C

Pyrotek Variant:

An Australian made foam-based pipe and duct lagging.

Jump to:
+61 2 8868 2000 Website

Application

  • Reduce breakout noise from wastewater pipes, valves, fan housings and ductwork in commercial, industrial and residential buildings.
  • Applicable for waste water pipes, hydraulic pipes, compressor and pump wraps, HVAC and fan housings.

Description

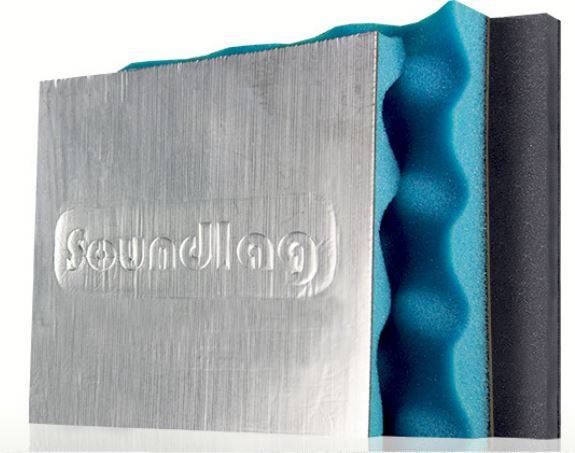

Soundlag™ is a highly flexible foam-based composite acoustic pipe lagging product with aluminium foil facing. Some of its features include:

  • Better performance - up to 5 dB(A) with Soundlag 4525C .
  • Class 0 aluminium foil facing.
  • Tested to AS/NZS 1530.3 with excellent flame resistance and complies with international fire standards.
  • Low spread of flame surface.
  • Broad operating temperature range.
  • Reduces the noise in hydraulic and wastewater pipes by up to 25.2 dB(A).
  • Free from odour producing oils and bitumen.
  • Contain no ozone depleting substances.
  • Choice of blue convoluted foam, grey plain foam, polyester or glass wool.
  • Simple to install - can be cut to size.
  • Easy to bond - matching Tape ALR or equivalent.
  • Alternative anti-glare foil colours are available for expose ceiling spaces.
  • Will not delaminate or crack when wrapped around pipes and bends.

General information

Warranty description

Ten years.

Uniclass

Pr_80_77_76_54 Mineral wool pipe section insulationPrimary

SpeedSpec

07200 Thermal and Acoustic Insulation

SpecPack

07200 Thermal and Acoustic Insulation

NATSPEC National Classification System

0472 Acoustic Insulation

Specification data - Mineral wool pipe section insulation

Form

Highly dense, flexible foam-based composite acoustic pipe lagging with foil facing.

Fire hazard properties

-

Standard

To AS/NZS 1530.3 and AS/NZS 3837.

Guidance for specification option:

Fire hazard properties classification - Group 3.

Flammability index

0.

Guidance for specification option:

Ignitability, flame propagation and heat as per test method AS 1530.3.

Smoke developed index

1.

Guidance for specification option:

Smoke release rating as per test method AS 1530.3.

Spread of flame index

0.

Guidance for specification option:

Foil facing at Class 0 as per BS 476 Part 7.

Foam board insulation

Convoluted foam.

Guidance for specification option:

Available in polyester or glass wool backing. Check with the manufacturer.

Colour

Blue.

Facing

Aluminium foil.

Colour/ Finish

Silver.

Black.

White.

Barrier mass

5 kg/m² (1 lb/ft²).

Roll size

1.35 x 5 m (4.4 x 16.4 ft).

Thickness

25 mm (0.98 in).

Acoustic performance

25 dB.

Guidance for specification option:

Insertion loss rating (single layer).

29 dB.

Guidance for specification option:

Insertion loss rating (double layer).

28.

Guidance for specification option:

Weight sound reduction index rating (Rw).

Tested to ISO 15186-1 and ISO 10140-4.

VOC content

< 0.5 mg/m² per hour.

Sustainability data

Contains Red List materials

Yes

Country of product manufacture

Australia

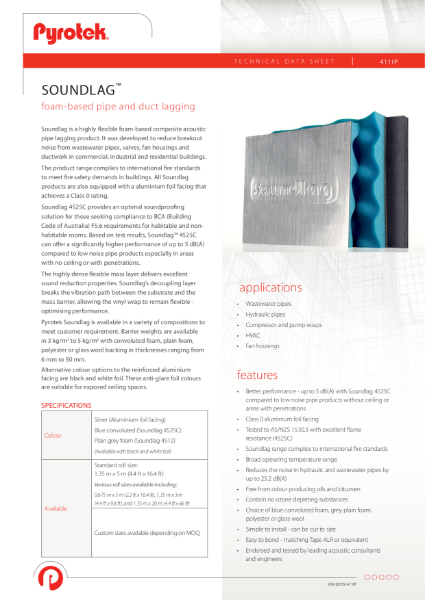

Literature
