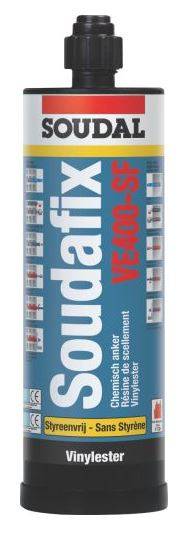

Soudafix VE400-SF (Vinylester)

Verified by manufacturer over a year ago

Soudal Australia

High performance, two-component anchoring resin.

Jump to:
+61 1300 50 70 11 Website

Application

  • Securing of heavy loads in solid and hollow building materials for various solid and hollow materials, such as concrete, cracked concrete, solid brick, hollow brick, porous concrete, natural stone, plasterboard walls.
  •  Pressure free anchoring even close to edges.
  • Can be used as repair mortar.
  • Can be used in wet drill holes.

Description

A two-component anchoring resin for the pressure-free securing of threaded rods (ETA: M8-M30), studs, reinforcement bars (ETA: Ø8-Ø32), threaded collars, profiles etc., in various solid and hollow materials. Some of its significant features include:

  • Easy to use and to apply.
  • Fast cure.
  • Wide application area, even in wet drill holes, under water (ne sea water) and at temp. as low as –10°C.
  • Overhead installation allowed.
  • Styrene free (low odour).
  • Cartridge re-usable by simply exchanging static mixer.
  • Watertight and impermeable fixing.
  • High chemical resistance.

General information

Color

Grey

Uniclass

Pr_20_29_03_18 Chemical anchorsPrimary

NATSPEC National Classification System

0181a Adhesives and Sealants

0181 Adhesives, Sealants and Fasteners

SpeedSpec

03310 Concrete

04850 Stone Cladding

04220 Blockwork

04210 Brickwork

05100 Structural Steel

05400 Cold Formed Metal Framing

SpecPack

04210 Brickwork

05100 Structural Steel

05400 Cold-Formed Metal Framing

03310 Concrete

04850 Stone Cladding

04220 Blockwork

Specification data - Chemical anchors

Standard

To ETA-10/0167.

Guidance for specification option:

Based on EAD 330499-00-0601 for application in cracked and uncracked concrete.

Base

Vinylester styrene free.

Form

Two-component, stable paste anchoring resin.

Colour

Dark grey.

Guidance for specification option:

Mixture of Light beige colour for component A and Black colour for component B.

Curing

Chemical cure.

Substrate

-

Manufacturer guidance

Suitable for all porous building substrates. Poor adhesion on smooth non-porous materials.

Application method

Standard skeleton gun.

Fire resistance

F120.

VOC content

85.5 to 171 g/L.

Guidance for specification option:

Total VOC for Component A.

68.37 g/L.

Guidance for specification option:

Total VOC for Component B.

Sustainability data

Contains Red List materials

Yes

Country of product manufacture

Belgium
