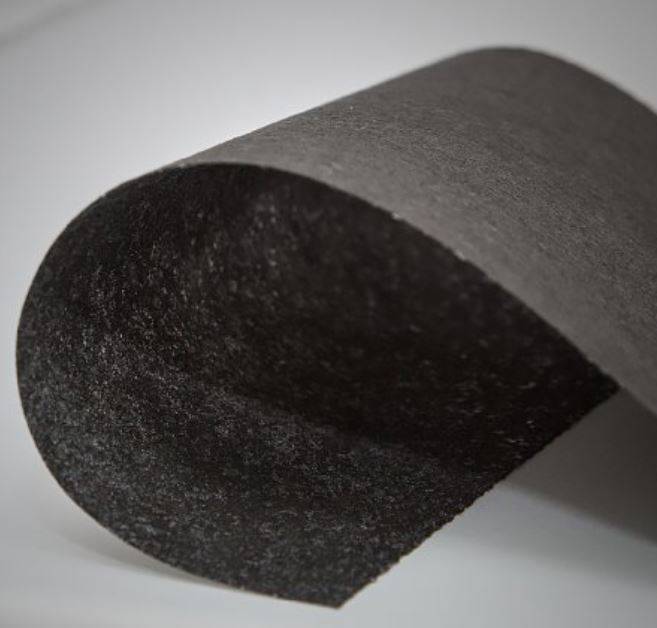

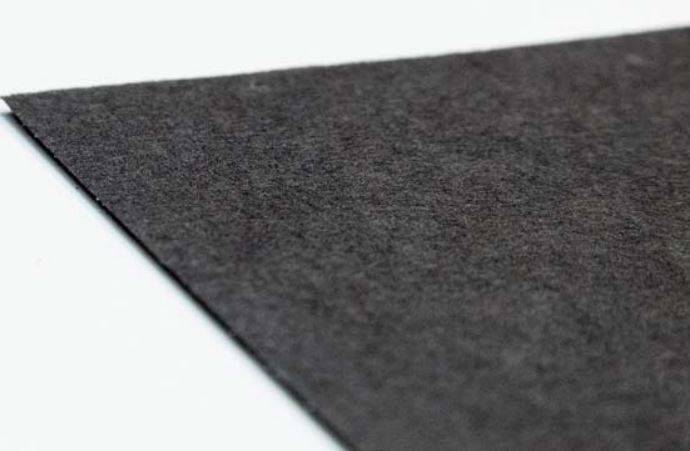

Sorbertextile™ STA

Verified by manufacturer over a year ago

Pyrotek

Heat reactive adhesive coated glass-based acoustic fabric for perforated tiles & panels.

Jump to:
+61 2 8868 2000 Website

Application

  • Can be laminated to Sorberscreen®, Sorberfoam, Sorberpoly or Sorberglass.
  • Ideal behind perforated panels in suspended ceilings, walls and acoustic linings.
  • 100˚C to 150˚C required temperature during application to reactivate adhesive.

Description

Sorbertextile™ STA is a glass-based acoustic textile, coated with a heat reactive adhesive and provides excellent mechanical strength, opacity, permeability and flammability. Some of its significant features include:

  • Premium sound absorption properties.
  • NRC ≥ 0.75 for most commonly used perforated patterns.
  • Easy installation – heat reactive adhesive requires only 100°C to 150˚C.
  • Low flammability and smoke index, tested to IMO FTP standard.
  • Excellent mechanical properties.
  • Maximum recommended service temperature - 100°C.
  • Unique & adequate solution for most acoustic installations.
  • Clean and light.
  • Fixed in place not ‘floating’.
  • Can be applied to Sorberscreen®, Sorberfoam, Sorberpoly or Sorberglass for enhance fire and acoustic performance.
  • Achieves high fire ratings when laminated to Sorberscreen, and complies with International standards for low spread of flame, MED B and MED D certification (Wheelmark).

General information

Color

Black

White

Uniclass

Pr_25_57_90_85 Suspended fabric panelsPrimary

SpeedSpec

09720 Wallcoverings

09500 Suspended Ceilings

09260 Dry Wall Partitions and Linings

SpecPack

09720 Wallcoverings

09500 Suspended Ceilings

09260 Dry Wall Partitions and Linings

NATSPEC National Classification System

0511 Lining

Specification data - Suspended fabric panels

Fabric

Glass based acoustic textile, coated with a heat reactive adhesive. The fabric was selected to provide excellent mechanical strength, opacity , permeability and flammability.

Manufacturer guidance

Non-woven acoustic textiles available with a coated heat reactive adhesive. The fabrics are manufactured to provide excellent mechanical strength, opacity and permeability.

Size

1.25 x 500 m.

Coating

-

Colour

Black.

White.

Fire performance

-

Standard

To AS 5637.1.

Group number

Group 1.

Acoustic performance

-

Minimum noise reduction coefficient (NRC)

NRC0.7 P44FR bonded to perforated metal (15% open) 400 mm air-gap.

Guidance for specification option:

NRC 0.7 P44FR bonded to perforated metal (15% open) with 400 mm air-gap.

NRC0.9 P44FR bonded to perforated metal (15% open) + 25 mm 32 kg/m3 fibreglass 400 mm air-gap.

Guidance for specification option:

NRC 0.9 P44FR bonded to perforated metal (15% open) + 25 mm 32 kg/m³ fibreglass with 400 mm air-gap.

Material:

Glass-based acoustic textile.

Colour

Black.

White.

Guidance for specification option:

Available by request (MOQ applies). Check with the manufacturer.

NominalThickness

0.27 mm.

Roll length

500 m.

Roll width

1250 mm.

Adhesive

Pre-applied heat reactive adhesive backing.

Elongation at break

2%.

Noise reduction coefficient

≥ 0.75.
