Sorberpoly™ 2D
Verified by manufacturer over a year ago

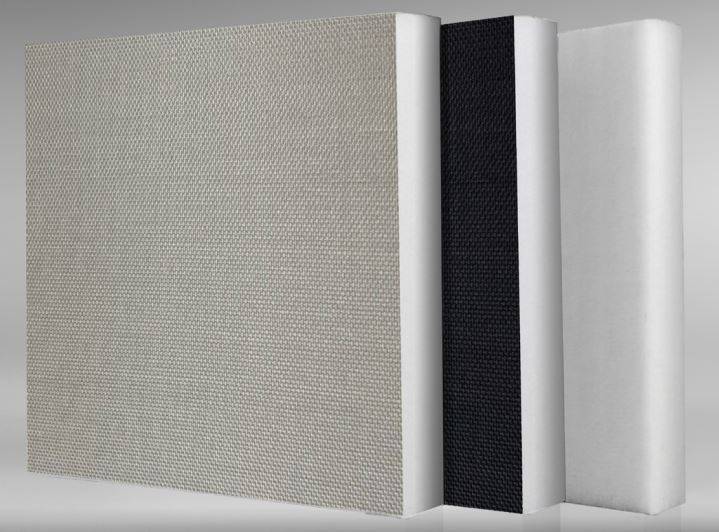

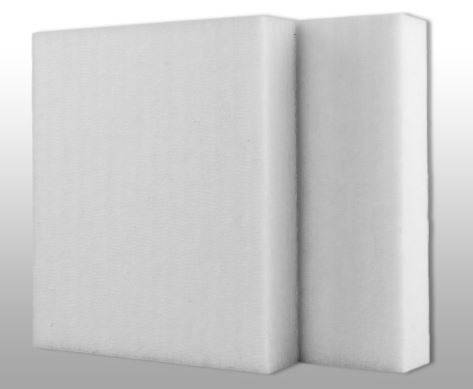

Sorberpoly 2D™
Sorberpoly 2D™
High-performance, non-woven polyester acoustic insulation.
Application
- Can be used as a replacement to fibreglass/mineral wool, in areas subject to high humidity and condensing moisture.
- Fills voids that can conduct noise from adjacent rooms or from outside to inside.
- Marine bulkheads and deckheads including wall cavities and ceiling voids.
- Noise control and thermal insulation for HVAC equipment.
- Acoustic hanging baffles and acoustic wall panels.
- Office infill partitions or open area reverberation control as a backing material.
- Suitable for high humidity applications.
Description
Sorberpoly 2D acoustic insulation is a fine fibre, non-woven polyester with excellent sound-absorbing and thermal insulation properties. Some of its significant features include:
- Lightweight, hydrophobic (non-wicking).
- With high NRC value per thickness.
- Will not degrade or crumble.
- Non-toxic, safe to handle and will not irritate the skin.
- Resistant to fuel, oil and grease.
- Easy to cut, heat seal, thermally or sonically weld and installed.
- Non-wicking and hydrophobic - does not hold water, avoids contamination and generation of odours.
- Compressible/thermally mouldable.
- Available in various densities, and product thicknesses.
- Multiple assembly approaches are possible.
- Efficient thermal insulation along with sound absorption.
- Contains no resin binders to create an unpleasant odour or mildew.
- Available with self-adhesive backing for ease of installation.
- Available in various facing options such as plain, reinforced or perforated aluminium foil, metallised film, black non-woven polyester and other materials available on request.
General information
Uniclass | |
SpeedSpec | 07200 Thermal and Acoustic Insulation |
SpecPack | 07200 Thermal and Acoustic Insulation |
NATSPEC National Classification System | 0472 Acoustic Insulation |
Specification data - Extruded polyethylene (PE) foam boards
Fire hazard properties | |
Standard | To AS/NZS 1530.3. |
Flammability index | 0. |
Spread of flame index | 0. |
Smoke developed index | 0-1. |
Thermal conductivity (maximum) | 0.036 W/mK. |
Form | A lightweight, hydrophobic and fine fibre, non-woven polyester. |
Foam board insulation | Non-woven polyester fibres. |
Colour | White. Grey. |
Facing | Manufacturer guidanceOther surface covering options available by request. Check with the manufacturer. |
Thickness: | 25 mm (1 in). 50 mm (2 in). |
Roll width | 1400 mm. |
Roll length | 2200 mm. |
Density | 18 kg/m³. 24 kg/m³. 32 kg/m³. 48 kg/m³. 60 kg/m³. |
Acoustic performance | 0.65. Guidance for specification option: NRC for Sorberpoly™ 2D 25 mm. Weighted sound absorption rating αw at 0.60 (H). 0.90. Guidance for specification option: NRC for Sorberpoly™ 2D 50 mm. Weighted sound absorption rating αw at 0.90. |
Sustainability data
Contains Red List materials | No |
Recyclability | Recyclable. Guidance for specification option: Manufactured from 100% polyester fibre. |
Literature
Sorberpoly 2D
