Fairview Architectural

Siniat weather defence is a weather resistant, highly breathable, deemed non-combustible rigid air barrier (RAB) to C1.9 of the BCA / NCC 2019.

Jump to:
+61 2 6352 2355 Website

Application

For use behind facade cladding systems to create a pressure-equalized cavity. Compliant for use in building facades in Type A and B construction.

Description

Weather-resistant, highly breathable, deemed non-combustible rigid air barrier (RAB).


Features and benefits:

  • Four-in-one solution: fire-resistant, non-combustible, vapour permeable and weathertight in one product.
  • Eliminates the need for a breathable membrane saving time and reducing installation cost.
  • FRL testing: SINIAT solutions offer fire resistant wall systems up to 60/60/60 which satisfy Deemed-to Satisfy compliance for vertical and spandrel fire separation between floors and openings.
  • Air- and weather-tight: Along with the proprietary joint sealing system, SINIAT is extremely airtight with leakage of 0.002 m³/m²/hr for compliance with the NCC 2019 air leakage requirements for class 2-9 buildings.
  • Patented technology: Weathertight with no need for additional sarking thanks to a patented hydrophobic core and glass matt liner technology. Proprietary joint jape must be used on all joints, corners, and openings.
  • Breathable barrier: SINIAT is highly breathable at 0.49 MNs/g or 2.04 µg/N.s allowing water vapour to escape the cavity and helping to control moisture build-up.
  • Manufactured by Etex Group and it comes with a 12-year warranty when installed by a certified installer.
  • Up to one year exposed: Can be left exposed to the weather for up to 12 months before cladding is installed allowing early lock up and start of internal trades and linings as building is weather sealed.
  • Deemed non-combustible according to C1.9 of the BCA/NCC 2019 and can be used in any cladding or lining application where non-combustible materials are required.

General information

Color

Purple

Guidance for specification option:

Front face.

White

Guidance for specification option:

Back face.

Finish

Manufacturer's standard.

Material

Manufacturer's standard.

Shape

Rectangle

Size

-

Manufacturer guidance

2400 x 1200 x 13 mm.

Warranty description

12-year warranty when built with Siniat components and materials and subject to installation standards.

Uniclass

Pr_25_57_10_94 Vapour-permeable sheetsPrimary

SpeedSpec

07201 Envelope Airtightness

07200 Thermal and Acoustic Insulation

SpecPack

07200 Thermal and Acoustic Insulation

NATSPEC National Classification System

0431 Cladding - Combined

0471 Thermal Insulation and Pliable Membranes

Specification data - Vapour-permeable sheets

Standard

To AS/NZS 4200.1

Duty classification (minimum)

Consult manufacturer

Vapour control classification (minimum)

-

Standard

To ASTM E96

Value

Consult manufacturer

Fire hazard properties (minimum)

-

Standard

To AS 1530.2

Flammability index

Consult manufacturer

Reflective face

Required

Verification

-

Submittals

Manufacturer's approved installer certification.

Manufacturer's certification.

Timing

At tender.

Before commencement of installation.

Before completion of detailed design.

Before placement of orders.

No later than two weeks following request.

To comply with programme.

Product Reference

Siniat Weather Defence

Weight

10.8 kg/m².

Sustainability data

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

Consult manufacturer for details.

Recyclability

Consult manufacturer for details.

Literature

Fairview Product Range

Fairview Product Range

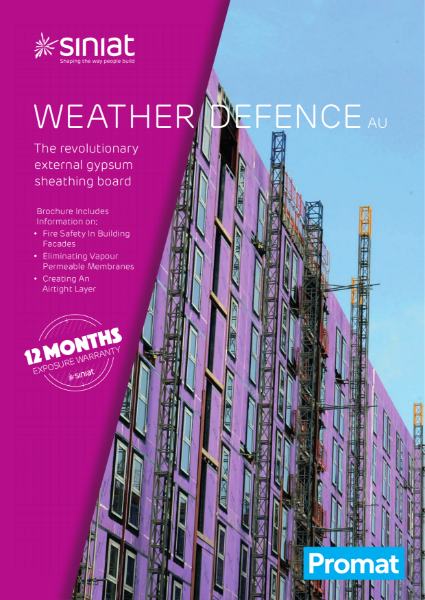

Siniat Weather Defence Technical Manual_AU_20.06_rev3

Siniat Weather Defence Technical Manual_AU_20.06_rev3

Siniat Weather Defence Fixing Guide_AU_Mandarin_20.06_rev

Siniat Weather Defence Fixing Guide_AU_Mandarin_20.06_rev

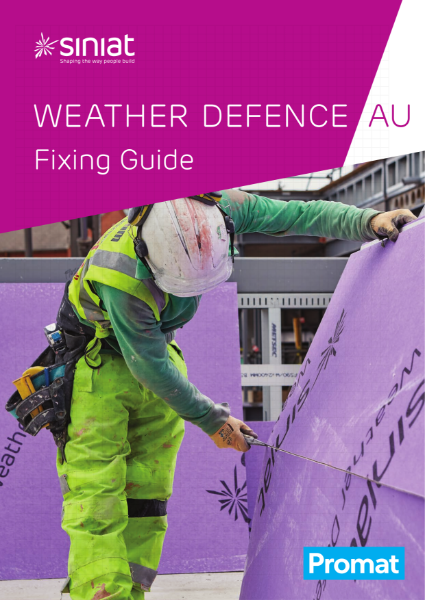

Siniat Weather Defence Fixing Guide_AU_English_20.06_rev3

Siniat Weather Defence Fixing Guide_AU_English_20.06_rev3
