Silentstep® Premium

Verified by manufacturer over a year ago

Pyrotek

High-performance soundproofing carpet underlay.

Jump to:
+61 2 8868 2000 Website

Application

  • Design to meet the market noise reduction requirements in multi-storey living, commercial, automotive and marine markets.
  • Ideally suited for lightweight flooring constructions such as timber and marine applications, where fibreglass and composite floor panels are used.
  • Suitable application for marine vessels to stop engine noise travelling into staterooms, salons, VIP cabins, etc.
  • Suitable application for transport industry such as firewalls, wheel arches, boot mats, and transmission tunnels.
  • Can be use for motor homes and luxury motor coaches.
  • Offers excellent support, and a firm cushioned base for all types of carpet applications.

Description

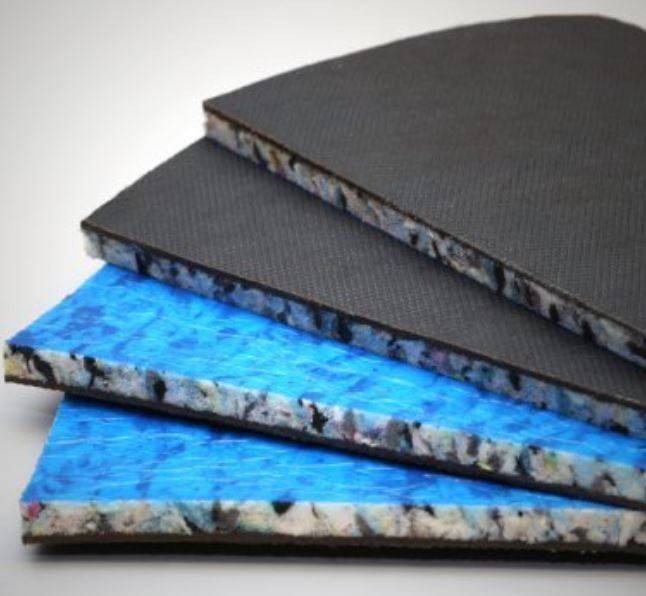

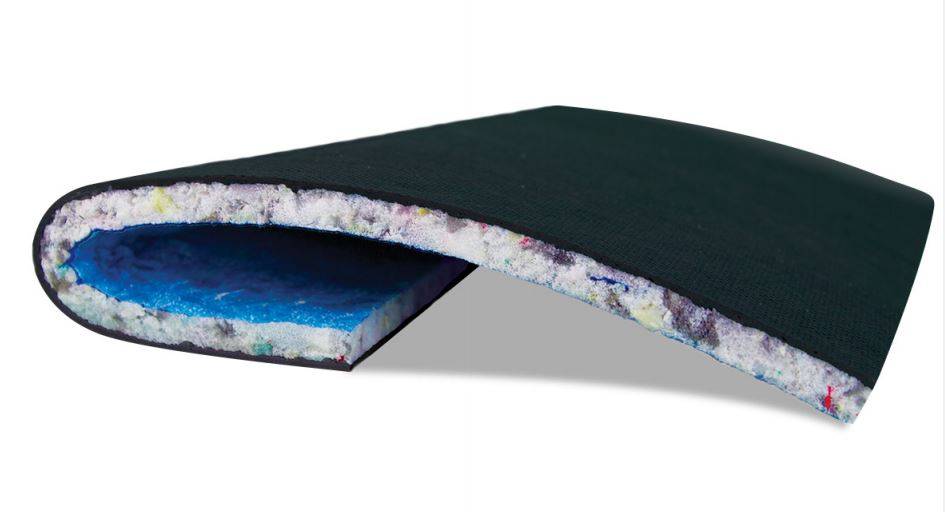

A high-performance acoustic carpet underlay, comprising of a flexible mass-loaded barrier fused onto high-density premium foam underlay. It comes with significant features such as:

  • Bonded foam is made from 100% recycled material.
  • Reduce both impact and airborne noise transfer through a floor system.
  • Environmentally safe, no ozone-depleting substances are generated during manufacture.
  • Free from lead, odour-producing oils and bitumen.
  • Non-toxic and safe to handle by methods prescribed in the Safety Data Sheet.
  • Simple to cut and lay, easy to install. No special tools or fixtures required.
  • Long service life, will not degrade like rubber underlay.
  • Foam is treated with Ultra-Fresh® to resist mould, mildew, bacterial growth and dust mites.
  • Available in roll form, sheet form or custom made (minimum order quantities apply).

General information

Size

1.35 x 5 m roll.

Uniclass

Pr_35_57_11_74 Rubber crumb underlaysPrimary

NATSPEC National Classification System

0472 Acoustic Insulation

SpecPack

09680 Carpet

SpeedSpec

09680 Carpet and Carpet Tiles

Specification data - Rubber crumb underlays

Form

High-performance acoustic carpet underlay, comprise of flexible mass-loaded barrier fused onto high-density premium foam underlay.

Facing

Mass-loaded barrier.

Barrier mass

4.5 kg/m².

Colour/ Finish

Black.

Foam board insulation

High-density premium foam.

Guidance for specification option:

Bonded foam with various colours.

Colour

Blue (Foam backing).

Manufacturer guidance

Custom colours available depending on MOQ, Check with the manufacturer.

Thickness

11 mm (0.43 in).

Manufacturer guidance

Custom thickness available depending on MOQ, Check with the manufacturer.

Roll width

1350 mm (53.15 in).

Roll length

5 m (16.4 ft).

Fire performance

Self-extinguishing.

Guidance for specification option:

Test method as per FMVSS 302.

Acoustic performance rating

IIC - 18.

Guidance for specification option:

Impact insulation class for 18mm bare timber floor application.

IIC - 54.

Guidance for specification option:

Impact insulation class rating for installation over timber floor.

STC - 28

Guidance for specification option:

Sound Transmission Class rating for airborne sound insulation.

Rw - 28

Guidance for specification option:

Weighted Sound Reduction Index (Rw) for airborne sound insulation.

Manufacturer guidance

IIC Tested to ISO 140-7. STC tested to ISO 15186-1 and ISO 10140-4.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Australia

Recyclability

100% Recycled.
